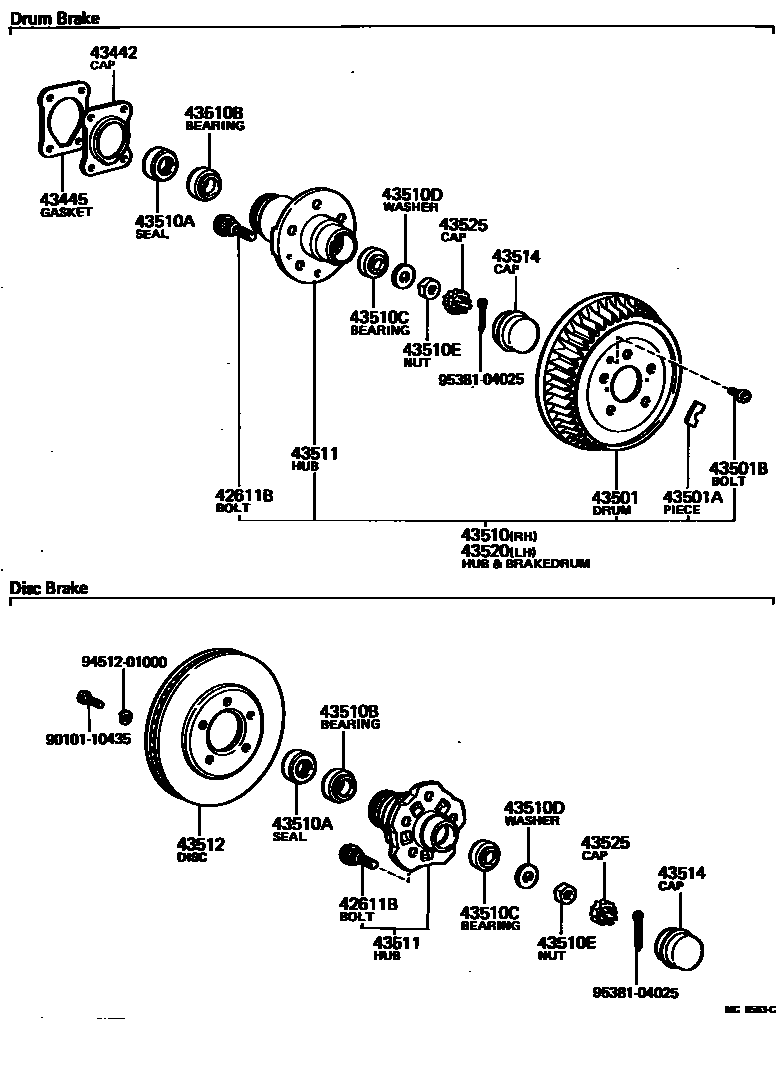

FRONT AXLE HUB
42611BBOLT, HUB (FOR FRONT AXLE)
*12-1.5PX33-20.5,FR DISC BRAKE
*12-1.5PX40-26,FR DRUM BRAKE
43442CAP, KNUCKLE GREASE RETAINER, INNER
43445GASKET, KNUCKLE GREASE RETAINER CAP
43501DRUM SUB-ASSY, FRONT BRAKE
43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)
40.5G,40.5G
10G,10G
20G,20G
30G,30G
25G,50G
56G,56G
66G,66G
76G,76G
86G,86G
96G,96G
43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)
43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510ASEAL, OIL (FOR FRONT AXLE HUB)
sub90311-48001
43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)
43510ENUT (FOR STEERING KNUCKLE)
43511HUB, FRONT AXLE
FR DRUM BRAKE
FR DISC BRAKE
43514CAP, FRONT HUB GREASE
43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43525CAP, FRONT WHEEL ADJUSTING LOCK
9010110435
main90101-10435
9451201000
main94512-01000
9538104025
main95381-04025
20 parts on this diagram · 1 diagram in section
