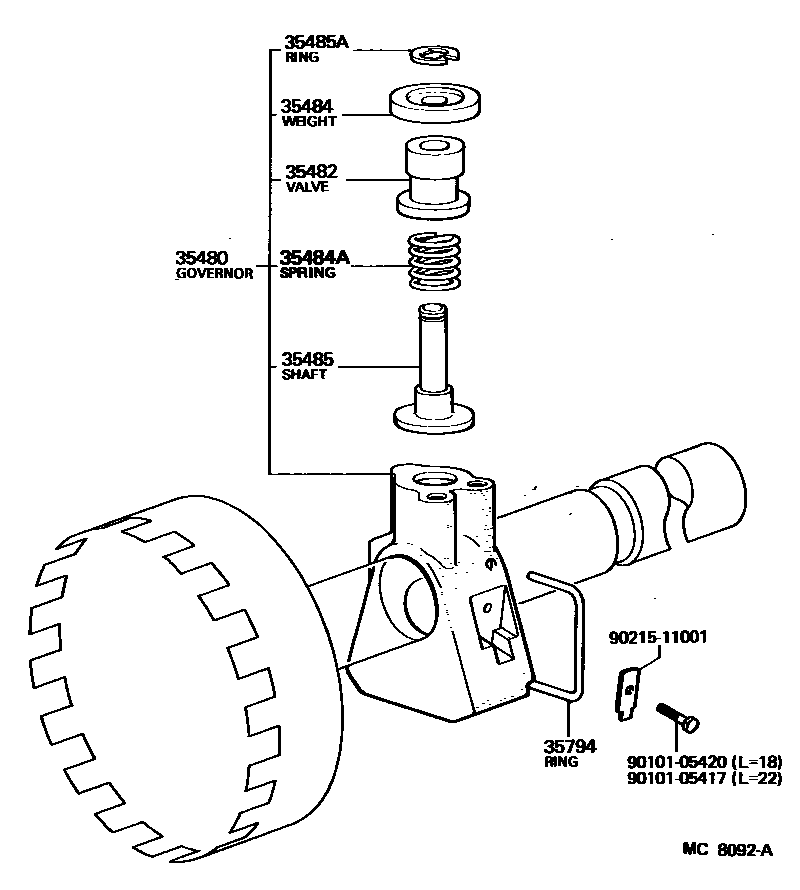

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-22020iMS111..ATM197909-198008

sub35480-30040

main35480-26010iLS110..4FC198109-198208

main35480-30050iLS110..4FC197909-198108

sub35480-30051

main35480-30051iLS110..4FC198108-198109

main35480-30060iMS112..ATM197909-198307

main35480-30080iLS110..4FC198208-198307

35482VALVE, GOVERNOR

main35482-20010iLS110..4FC198208-198307

main35482-22010iMS11#..ATM197909-198307

main35482-30030iLS110..4FC197909-198208

35484WEIGHT, GOVERNOR, OUTER

main35484-20020iLS110..4FC198208-198307

main35484-22010iMS11#..ATM197909-198307

main35484-30010iLS110..4FC197909-198108

sub35484-22010

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09030iLS110..4FC198208-198307

main90501-09673iLS110,MS11#..ATM197909-198307

35485SHAFT, GOVERNOR VALVE

main35485-22010iLS110,MS11#..ATM197909-198307

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iLS110,MS11#..ATM197909-198307

35794RING, GOVERNOR RETAINING

main35794-22010iLS110,MS11#..ATM197909-198307

9010105417

main90101-05417

9010105420

main90101-05420

9021511001

main90215-11001

10 parts on this diagram · 1 diagram in section
