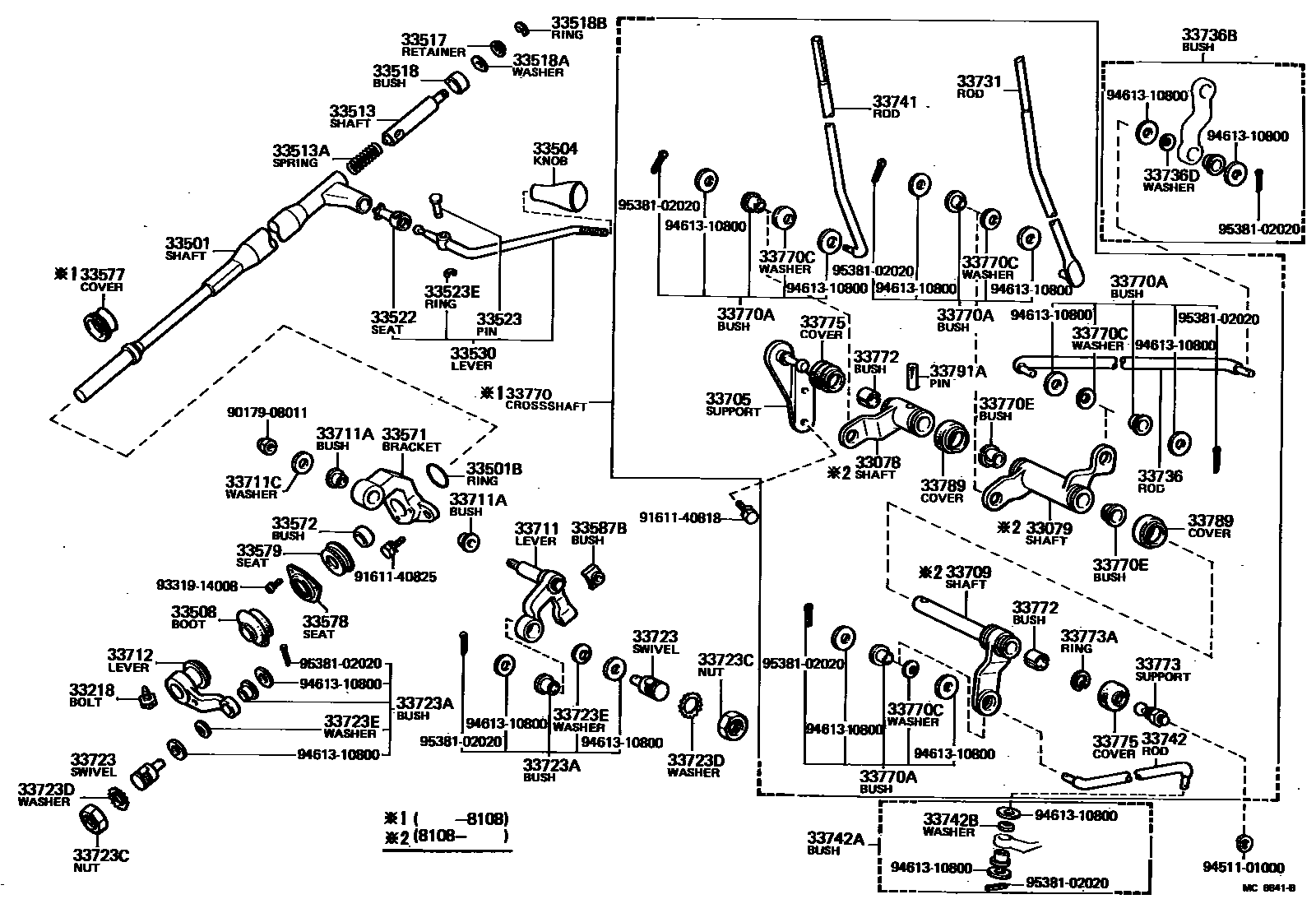

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1

33078SHAFT SUB-ASSY, CROSS, NO.2(FOR COLUMN SHIFT)

main33078-30030iLS110,MS112,RS110..RHD..4H198108-198307

33079SHAFT SUB-ASSY, CROSS, NO.3(FOR COLUMN SHIFT)

main33079-30070iLS110,MS112,RS110..LHD..4H198108-198307

sub33079-30090

main33079-30080iLS110,MS112,RS110..RHD..4H198108-198307

33218BOLT, SHIFT LEVER LOCK

main33218-35010iLS110,MS11#,RS110..4H197909-198307

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-30370iLS110,MS11#,RS110..RHD..4H197909-198307

main33501-30390iMS11#..RHD..(3HC,4HC)197909-198108

main33501-30400iLS110,MS11#,RS110..LHD..4H197909-198307

main33501-30410iMS112..LHD..4HC197909-198108

main33501-30420iMS112..RHD..4HC198108-198307

main33501-30430iMS112..LHD..4HC198108-198307

33501BRING, O (FOR COLUMN SHIFT CONTROL SHAFT LOWER)

main90301-34002iLS110,MS11#,RS110..4H197909-198307

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

33508BOOT SUB-ASSY, CONTROL SHAFT (FOR COLUMN SHIFT)

main33519-30030iLS110,MS11#,RS110..4H197909-198307

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-30080iLS110,MS112,RS110..4H,4HC197909-198307

main33513-30090iMS11#..3HC,4HC197909-198108

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14784iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iMS11#..3HC,4HC197909-198307

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-30060iMS11#..3HC,4HC197909-198307

main33518-30080iMS112..ROY..GEN..EFI198108-198307

33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)

main33515-30010iLS110,MS11#,RS110..4H197909-198307

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iMS11#..3HC,4HC197909-198307

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-30030iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07003iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33541-39075iLS110,MS11#,RS110..4H197909-198307

main33541-39085iMS11#..RHD..(3HC,4HC)197909-198307

main33541-39095iMS112..LHD..4HC197909-198307

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33057-30100iLS110,MS11#,RS110..RHD..4H197909-198307

main33057-30120iLS110,MS11#,RS110..LHD..4H197909-198307

main33571-30230iMS11#..RHD..(3HC,4HC)197909-198307

main33571-30280iMS112..LHD..4HC197909-198307

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-30020iMS11#..3HC,4HC197909-198307

main33572-30030iLS110,MS11#,RS110..4H197909-198307

33577COVER, CONTROL SHAFT HOLE

main33577-30070iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

33578SEAT, CONTROL SHAFT LOWER BUSH, NO.1

main33578-30020iLS110,MS11#,RS110..4H197909-198307

33579SEAT, CONTROL SHAFT LOWER BUSH, NO.2

main33579-30020iLS110,MS11#,RS110..4H197909-198307

33587BBUSH, LEVER SELECTING

main33587-30050iLS110,MS11#,RS110..4H197909-198307

33705SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE)

main33705-30070iMS111..LHD..3HC197909-198307

main33705-30090iLS110,MS11#,RS110..LHD..4H197909-198108

main33705-30120iMS11#..RHD..(3HC,4HC)197909-198307

main33705-30130iLS110,MS11#,RS110..RHD..4H197909-198307

main33705-30150iLS110,MS112,RS110..LHD..4H198108-198307

33709SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT)

main33709-30240iMS112..RHD..4HC198108-198307

main33709-30270iMS112..LHD..4HC198108-198307

main33709-30280iLS110,MS112,RS110..LHD..4H198108-198307

main33709-30290iLS110,MS112,RS110..RHD..4H198108-198307

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33053-30060iLS110,MS11#,RS110..RHD..4H197909-198307

main33053-30090iLS110,MS11#,RS110..LHD..4H197909-198307

main33711-30100iMS11#..RHD..(3HC,4HC)197909-198307

main33711-30110iMS111..LHD..3HC197909-198307

33711ABUSH (FOR CONTROL SHAFT LEVER)

main90386-13007iLS110,MS11#,RS110..4H197909-198307

33711CWASHER, PLATE (FOR CONTROL SHAFT LEVER)

main90201-08065iLS110,MS11#,RS110..4H197909-198307

T=2.6

main90201-17044iMS11#..3HC,4HC197909-198307

T=1.2,T=1.2

main90201-17048iMS11#..3HC,4HC197909-198307

T=1.0,T=1.0

33712LEVER, CONTROL SHAFT

main33527-30060iLS110,MS11#,RS110..RHD..4H197909-198307

main33527-30090iLS110,MS11#,RS110..LHD..4H197909-198307

33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)

main33723-20010iMS112..LHD..4HC197909-198307

main33723-30040iMS112..RHD..4HC198108-198307

33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90999-99064iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

33723CNUT, HEXAGON (FOR CONTROL ROD SETTING)

main90170-10012iMS112..RHD..4HC198108-198307

LWR

main90170-10082iMS112..RHD..4HC198108-198307

UPR

main90170-18159iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

33723DWASHER, TOOTHED (FOR CONTROL ROD SETTING)

main90205-18012iLS110,MS112,RS110..4H197909-198307

33723EWASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)

main90206-08016iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

33731ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)

main33731-30080iLS110,MS11#,RS110..RHD..4H197909-198307

main33731-30110iLS110,MS11#,RS110..LHD..4H197909-198108

main33731-30120iLS110,MS112,RS110..LHD..4H198108-198307

33736ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT)

main33736-30050iLS110,MS11#,RS110..LHD..4H197909-198108

main33736-30070iLS110,MS11#,RS110..RHD..4H197909-198108

main33736-30080iLS110,MS112,RS110..RHD..4H198108-198307

main33736-30090iLS110,MS112,RS110..LHD..4H198108-198307

33736BBUSH(FOR GEAR SELECTING ROD, NO.2)

main90999-99064iLS110,MS11#,RS110..4H197909-198307

33736DWASHER, WAVE(FOR GEAR SELECTING ROD, NO.2)

main90206-08016iLS110,MS11#,RS110..4H197909-198307

33741ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33741-30180iLS110,MS11#,RS110..RHD..4H197909-198307

main33741-30240iLS110,MS11#,RS110..LHD..4H197909-198108

main33741-30260iLS110,MS112,RS110..LHD..4H198108-198307

33742ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT)

main33742-30080iLS110,MS11#,RS110..RHD..4H197909-198108

main33742-30180iLS110,MS11#,RS110..LHD..4H197909-198108

main33742-30210iLS110,MS112,RS110..RHD..4H198108-198307

main33742-30220iLS110,MS112,RS110..LHD..4H198108-198307

33742ABUSH(FOR SHIFTING ROD NO.2)

main90999-99064iLS110,MS11#,RS110..4H197909-198307

33742BWASHER, WAVE(FOR SHIFTING NO.2 ROD)

main90206-08016iLS110,MS11#,RS110..4H197909-198307

33770SHAFT ASSY, CROSS (FOR COLUMN SHIFT)

main33770-30280iMS111..RHD..3HC197909-198008

main33770-30300iLS110,MS11#,RS110..RHD..4H197909-198108

main33770-30320iMS112..LHD..4HC198008-198108

main33770-30360iLS110,MS11#,RS110..LHD..4H197909-198108

main33770-30370iMS112..ROY197909-198108

main33770-30390iMS111..LHD..3HC197909-198008

33770ABUSH (FOR CROSS SHAFT)

main90999-99064iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

33770CWASHER, WAVE (FOR CROSS SHAFT)

main90206-08016iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

33770EBUSH (FOR CROSS SHAFT)

main90386-15110iLS110,MS11#,RS110..RHD..4H197909-198307

33772BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)

main33772-20010iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

33773SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT)

main33773-20020iLS110,MS11#,RS110..LHD..4H197909-198307

main33773-30010iLS110,MS11#,RS110..RHD..4H197909-198108

main33773-30040iLS110,MS112,RS110..LHD..4H198108-198307

main33773-30060iLS110,MS112,RS110..RHD..4H198108-198307

33773ARING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP)

main96151-01600iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

33775COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)

main33775-20020iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

MISSION SIDE

main33775-20040iLS110,MS11#,RS110..LHD..4H197909-198307

FRAME SIDE

main33788-12010iLS110,MS11#,RS110..RHD..4H197909-198307

FRAME SIDE

33789COVER, CROSS SHAFT DUST(FOR COLUMN SHIFT)

main33789-36030iLS110,MS11#,RS110..RHD..4H197909-198307

33791APIN(FOR CROSS SHAFT END)

main90256-08002iLS110,MS11#,RS110..RHD..4H197909-198307

9017908011

main90179-08011

9161140818

main91611-40818

9161140825

main91611-40825

9331914008

main93319-14008

9451101000

main94511-01000

9461310800

main94613-10800

9538102020

main95381-02020

59 parts on this diagram · 4 diagrams in section
