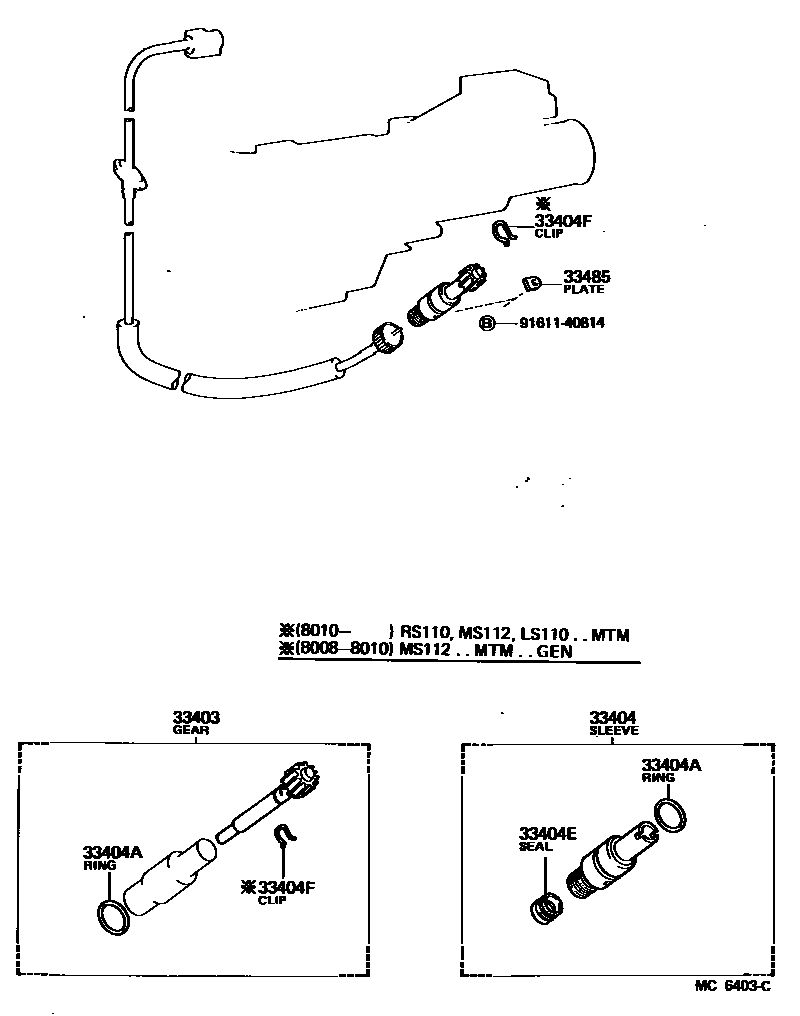

SPEEDOMETER DRIVEN GEAR (MTM)
33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
N=32,MARK 32:11,N=32
N=20
N=33,MARK 33:11,N=33
N=32,MARK 32:10,N=32
N=33,MARK 33:10,N=33
N=31,MARK 31:10,N=31
N=17,N=17
N=34,MARK 34:10,N=34
N=17,MARK 17:6,N=17
N=19
N=18,MARK 18:6,N=18
N=17,MARK 17:5,N=17
N=19,MARK 19:6,N=19
N=20,MARK 20:6,N=20
N=17,N=17
N=18,MARK 18:6,N=18
33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
9161140814
main91611-40814
7 parts on this diagram · 1 diagram in section
