CLUTCH RELEASE CYLINDER

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-22060iMS11#..4F,5F197909-198012

sub31470-22080

main31470-22080iMS112..5F..EFI198012-198108

sub31470-26050

main31470-22090iLS110..MTM198108-198307

main31470-30150iRS110197909-198012

sub31470-30151

main31470-30151iRS110198012-198108

main31470-30160iMS111..4H197909-198008

sub31470-30240

sub31470-30250

main31470-30211iLS110..MTM197909-198012

sub31470-30212

main31470-30212iLS110..MTM198012-198108

main31470-30220iMS112..MTM..CBR198008-198307

sub31470-30221

main31470-35050iRS110198108-198307

sub31470-30260

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iLS110,MS11#,RS110..MTM197909-198307

*8-1.25PX25-25

sub91611-B0825

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22020iMS112,RS110..MTM198008-198307

sub04313-12030

main04313-30090iLS110..MTM197909-198012

main04313-30091iLS110..MTM198012-198108

sub04313-20020

main04313-30100iRS110197909-198012

main04313-30120iLS110..MTM198108-198307

sub04313-26020

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14010iLS110..MTM197909-198012

main31473-22010iLS110,MS112..MTM198008-198307

main31473-30040iRS110197909-198012

main31473-30041iRS110198012-198108

sub31473-36040

main31473-30050iMS111..4H197909-198008

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iMS112..MTM..CBR198008-198307

main31476-30040iMS112..5F..EFI197909-198012

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLS110,MS11#,RS110..MTM197909-198307

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLS110,MS11#,RS110..MTM197909-198307

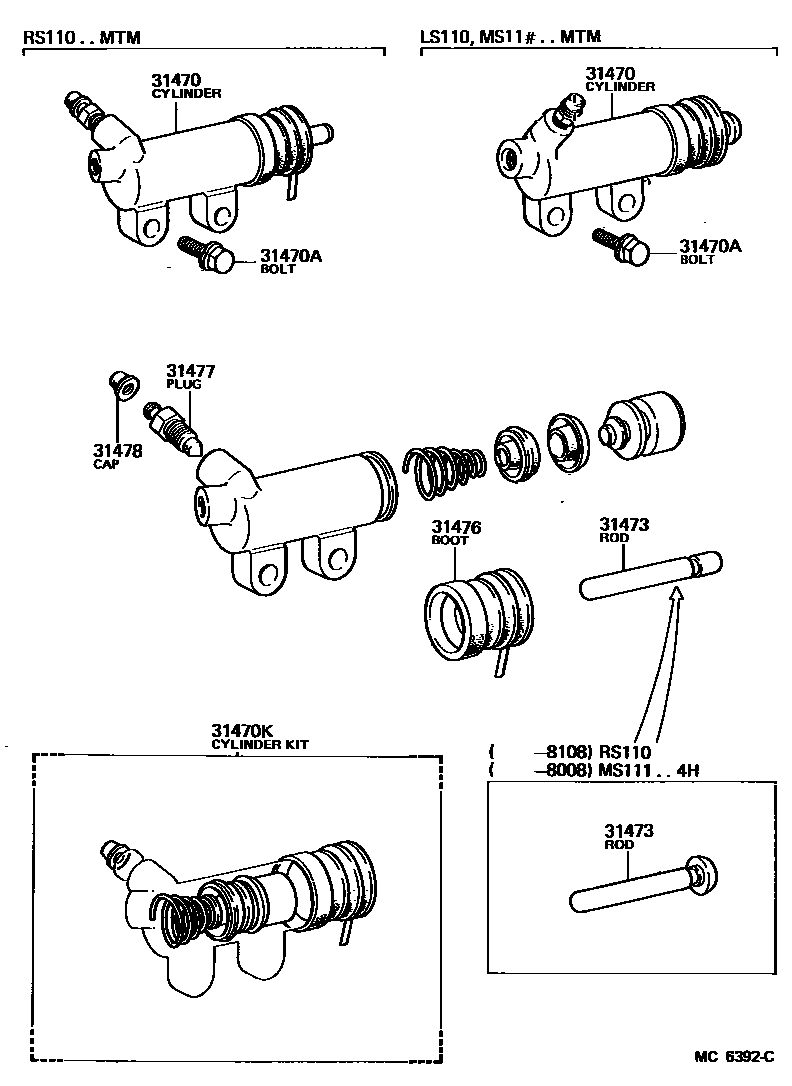

7 parts on this diagram · 1 diagram in section
