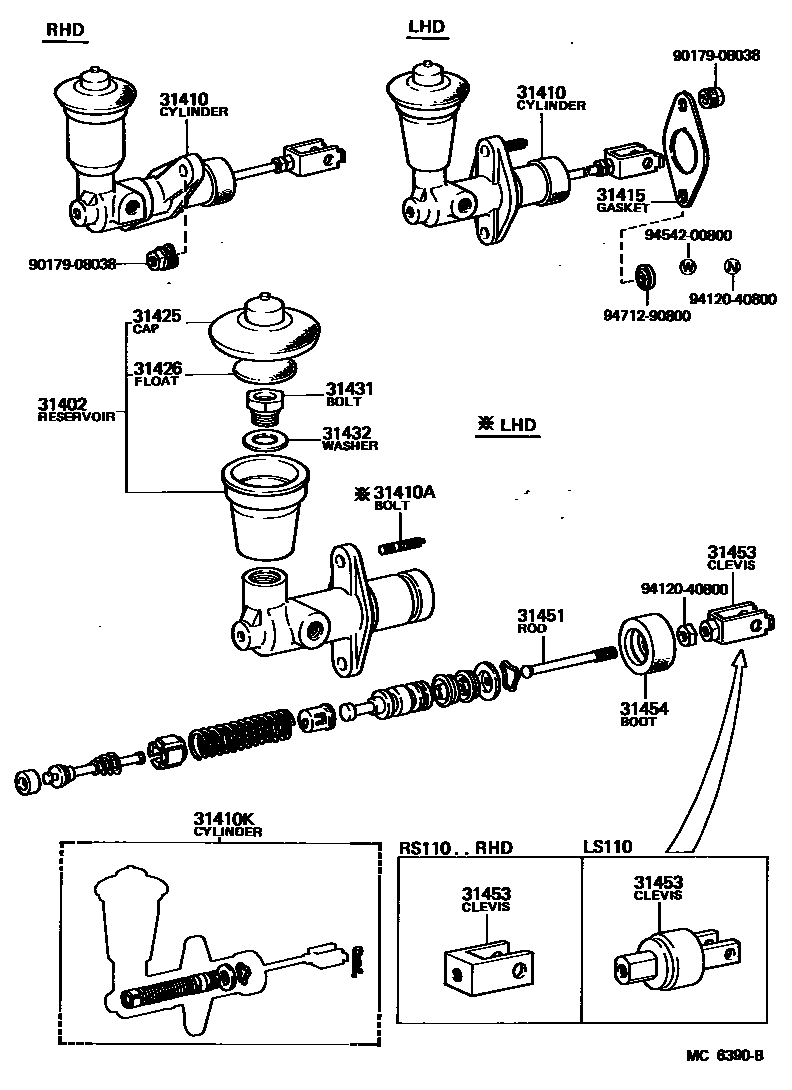

CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iLS110,MS11#,RS110..LHD..MTM197909-198307

main47202-12050iLS110,MS11#,RS110..RHD..MTM197909-198307

31410CYLINDER ASSY, CLUTCH MASTER

main31410-30090iMS11#..RHD..MTM197909-198307

sub31410-30091

main31410-30100iRS110..RHD197909-198207

sub31410-30101

main31410-30110iLS110..RHD197909-198102

sub31410-35110

main31410-30120iMS11#,RS110..LHD..MTM197909-198307

sub31410-30121

main31410-30130iLS110..LHD..MTM197909-198307

sub31410-30131

main31410-35110iLS110..RHD198102-198307

sub31410-35220

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08079iLS110,MS11#,RS110..LHD..MTM197909-198307

31410KCYLINDER KIT, CLUTCH MASTER

main04311-14010iMS11#,RS110..MTM197909-198212

sub04311-14011

main04311-14011iMS112,RS110..MTM198212-198307

sub04311-14012

main04311-30080iLS110..MTM197909-198307

sub04311-14020

31415GASKET, CLUTCH MASTER CYLINDER

main31415-14010iLS110,MS11#,RS110..LHD..MTM197909-198307

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iLS110,MS11#,RS110..MTM197909-198307

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iLS110,MS11#,RS110..MTM197909-198307

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iLS110,MS11#,RS110..MTM197909-198307

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iLS110,MS11#,RS110..MTM197909-198307

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22050iMS11#,RS110..MTM197909-198307

main31451-30060iLS110..MTM197909-198307

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30040iLS110..MTM197909-198307

main31453-30070iMS11#..MTM197909-198307

main31453-30080iRS110..RHD197909-198207

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLS110,MS112,RS110..MTM198108-198307

main31454-30050iLS110,MS11#,RS110..MTM197909-198108

sub31454-14010

9017908038

main90179-08038

9412040800

main94120-40800

9454200800

main94542-00800

9471290800

main94712-90800

16 parts on this diagram · 1 diagram in section
