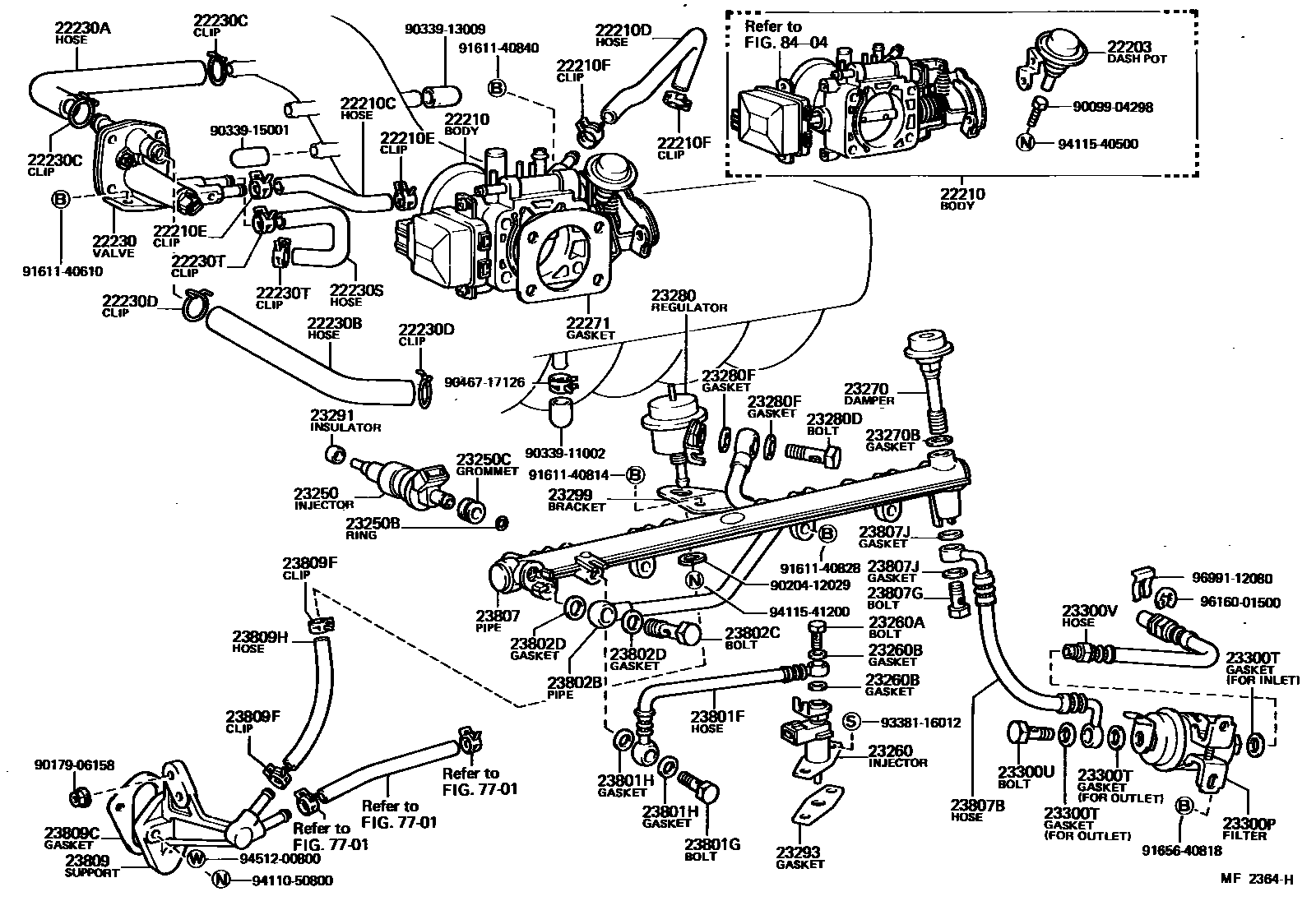

FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
sub22203-70010
22210BODY ASSY, THROTTLE
SWITZERLAND SPEC
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
sub96135-51300
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
sub96135-51300
22230VALVE ASSY, AUXILIARY AIR
22230AHOSE, AUXILIARY AIR VALVE, NO.1
22230BHOSE, AUXILIARY AIR VALVE, NO.2
22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1
22230DCLIP, AUXILIARY AIR VALVE HOSE, NO.2
22230SHOSE, WATER BY-PASS(FOR AUXILIARY AIR VALVE)
22230TCLAMP OR CLIP, HOSE(FOR WATER BY-PASS)
sub96135-51300
22271GASKET, THROTTLE BODY
sub22271-43020
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
sub23260-49085
23260ABOLT, UNION
23260BGASKET
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23280FGASKET(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
sub23293-43020
23299BRACKET, FUEL PRESSURE REGULATOR
23300TGASKET(FOR FUEL FILTER)
OUTLET
INLET
23300UBOLT, UNION(FOR FUEL FILTER)
23300VHOSE, FUEL(FOR FUEL INLET)
23801FHOSE, FUEL, NO.1
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23802BPIPE SUB-ASSY, FUEL, NO.2
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807BHOSE, FUEL DELIVERY PIPE
23807GBOLT, UNION PIPE FUEL DELIVARY INLET
23807JGASKET, PIPE FUEL DELIVARY INLET
23809SUPPORT SUB-ASSY, FUEL PIPE
23809CGASKET, FUEL PIPE SUPPORT
sub90923-05020
23809FCLIP(FOR FUEL PIPE SUPPORT)
sub96135-51300
23809HHOSE, FUEL PIPE SUPPORT TO REGULATOR
sub95336-08020
7701
8404
9009904298
main90099-04298
9017906158
main90179-06158
9020412029
main90204-12029
9033911002
main90339-11002
9033913009
main90339-13009
9033915001
main90339-15001
9046717126
main90467-17126
9161140610
main91611-40610
9161140814
main91611-40814
9161140828
main91611-40828
9161140840
main91611-40840
9165640818
main91656-40818
9338116012
main93381-16012
9411050800
main94110-50800
9411540500
main94115-40500
9411541200
main94115-41200
9451200800
main94512-00800
9616001500
main96160-01500
9699112080
main96991-12080
67 parts on this diagram · 4 diagrams in section
