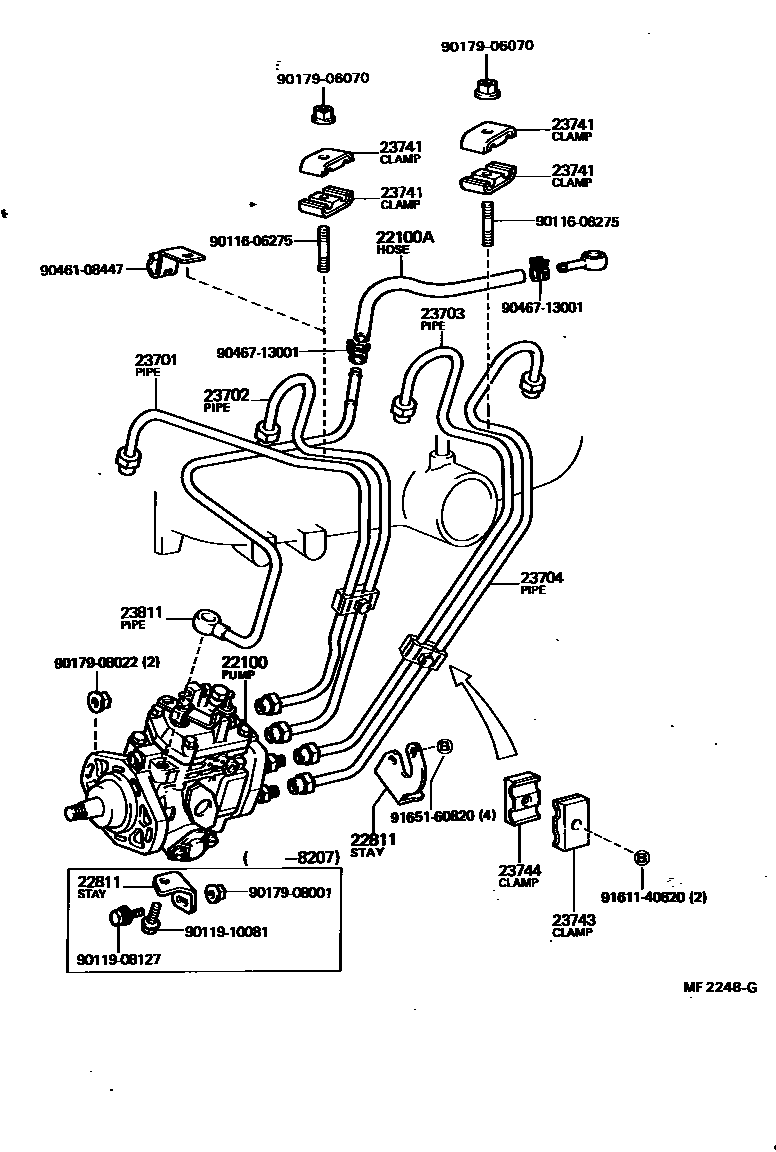

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54060iL..LS110..MTM197909-198008

main22100-54080iL..LS110..4FC197909-198008

main22100-54100iL..LS110..SED..GEN197909-198008

HIGH ALTITUDE SPEC

main22100-54110iL..LS110..4FC198008-198108

sub22100-54111

sub23811-54051

sub23811-54061

main22100-54130iL..LS110..MTM198008-198108

sub22100-54131

sub23811-54051

sub23811-54061

main22100-54131iL..LS110..BTP..GEN198108-198307

sub22100-54132

sub90099-05166

main22100-54140iL..LS110..SED..GEN198008-198108

HIGH ALTITUDE SPEC

sub22100-54141

sub23811-54051

sub23811-54061

main22100-54180iL..LS110..5F198108-198307

main22100-54190iL..LS110..4FC..EUR198108-198307

main22100-54200iL..LS110..MTM..GEN198108-198307

HIGH ALTITUDE SPEC

sub22100-54201

main22100-54230iL..LS110..4F..DLX198108-198307

sub22100-54231

sub90099-05166

main22100-54240iL..LS110..4FC..GEN198108-198307

sub22100-54241

main22100-54430iL..LS110..RHD..BTP198210-198307

HONG KONG SPEC,SINGA PORE SPEC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main95332-08030iL..LS110198208-198307

L=300

sub95333-08030

main95332-08040iL..LS110197909-198208

L=400(*H,L=340)

sub95333-08040

22811STAY, INJECTION PUMP, NO.1

main22811-54020iL..LS110197909-198008

main22811-54030iL..LS110198008-198207

main22811-54040iL..LS110198207-198307

sub22811-54041

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54030iL..LS110197909-198008

main23701-54050iL..LS110198008-198012

sub23701-54051

main23701-54051iL..LS110198012-198307

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54030iL..LS110197909-198008

main23702-54050iL..LS110198008-198307

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54030iL..LS110197909-198008

main23703-54050iL..LS110198008-198307

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54030iL..LS110197909-198008

main23704-54050iL..LS110198008-198307

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iL..LS110197909-198307

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010iL..LS110197909-198307

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010iL..LS110197909-198307

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54040iL..LS110197909-198008

sub23811-54050

main23811-54050iL..LS110198008-198108

main23811-54051iL..LS110198108-198208

main23811-54090iL..LS110198208-198307

9011606275

main90116-06275

9011908127

main90119-08127

9011910081

main90119-10081

9017906070

main90179-06070

9017908001

main90179-08001

9017908022

main90179-08022

9046108447

main90461-08447

9046713001

main90467-13001

9161140620

main91611-40620

9165160820

main91651-60820

21 parts on this diagram · 1 diagram in section
