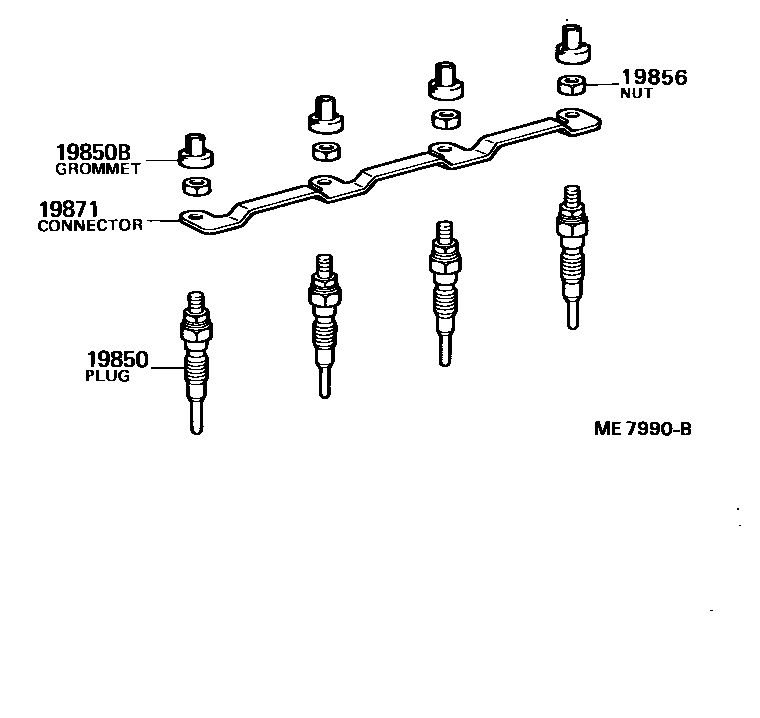

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19850PLUG ASSY, GLOW

main19850-54030iL..LS110197909-198307

sub19850-54031

main19850-54050iL..LS110..EUR198008-198307

*BV-GV=12V-7V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024iL..LS110197909-198307

19856NUT, CONNECTING(FOR GLOW PLUG)

main90170-04002iL..LS110197909-198307

19871CONNECTOR, GLOW PLUG NO.1

main19871-54010iL..LS110197909-198307

sub19871-54011

4 parts on this diagram · 3 diagrams in section
