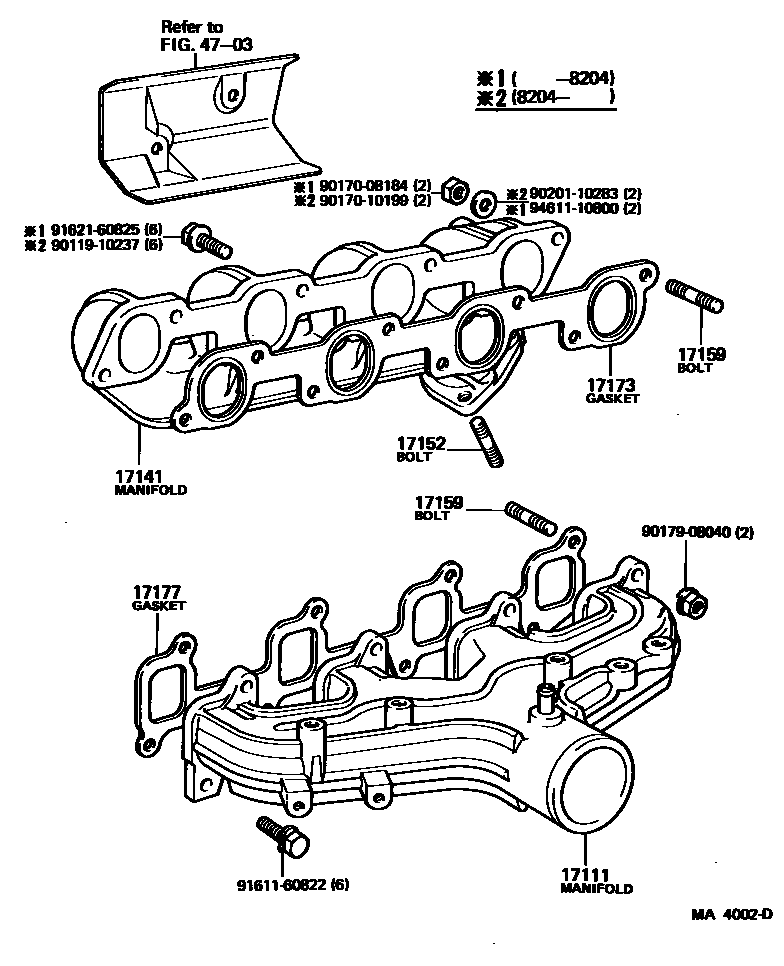

MANIFOLD
17111MANIFOLD, INTAKE
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=41,S=14&20
L=45.7,S=20&14
L=46.5,S=14&20
L=47.4,S=14&22
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE,L=44,S=12&18
INTAKE MANIFOLD SIDE
EXHAUST,LWR,L=53,S=15&29
EXHAUST,UPR,L=57,S=15&31
EXHAUST MANIFOLD SIDE
EXHAUST MANIFOLD SIDE
4703
9011910237
main90119-10237
9017008184
main90170-08184
9017010199
main90170-10199
9017908040
main90179-08040
9020110283
main90201-10283
9161160822
main91611-60822
9162160825
main91621-60825
9461110800
main94611-10800
15 parts on this diagram · 4 diagrams in section
