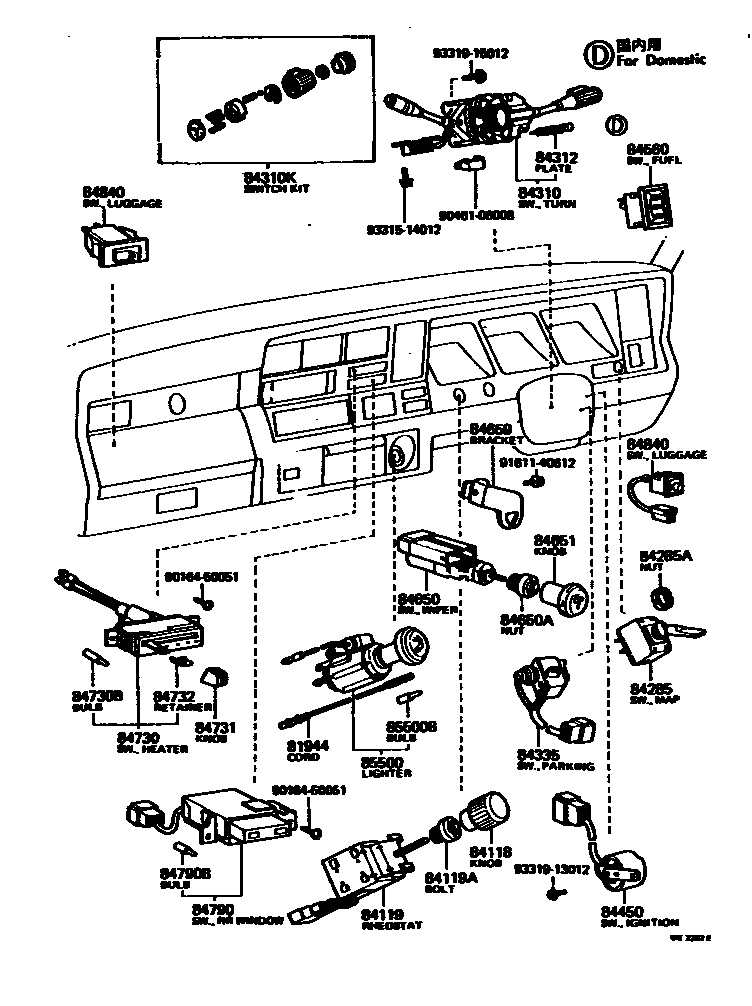

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

81944CORD, OPTICAL FIBER

main81944-20010iMS83,85,95..DLX,ROY,SAL197410-197802

sub81944-20021

main81944-20021iMS83,85,95,RS80197802-197908

84118KNOB, LIGHT CONTROL RHEOSTAT

main84118-30010iMS85..ROY,SAL;MS83..RHD..4F197410-197908

84119RHEOSTAT, LIGHT CONTROL

main84119-30010iMS85..ROY197410-197908

84119ABOLT OR NUT, RHEOSTAT CONTROL SET

main90984-01001iMS85..ROY197705-197908

main90984-01013iMS85..ROY,SAL;MS83..RHD..4F197410-197705

84285SWITCH, MAP LAMP

main84280-30010iMS95197410-197908

84285ABOLT OR NUT, MAP LAMP SWITCH

main90179-14174iMS95197410-197908

84310SWITCH ASSY, TURN SIGNAL

main84310-22130iMS85,88,RS80..RHD..(BTP,STD)197611-197908

main84310-22140iMS83,85,95..RHD..(DLX,SAL)197611-197908

main84310-22150iRS80..4F..EUR;MS85,88,RS80..LHD..(BTP,STD)..GEN197611-197908

main84310-22160iMS88,RS80..EUR197611-197908

main84310-30110iMS85,88,RS80..RHD..(BTP,STD)197410-197611

sub84310-22130

main84310-30120iMS85..ROY197511-197611

sub84310-30121

main84310-30121iMS85..RHD..ROY197611-197802

main84310-30122iMS85..RHD..ROY197802-197908

main84310-30130iMS85,88,RS80..LHD..(BTP,STD)197410-197611

sub84310-22150

main84310-30140iMS83,85,95..LHD..(DLX,SAL)197410-197611

sub84310-22160

main84310-30150iMS83,85,95..RHD..(DLX,SAL)197410-197611

sub84310-22140

84310KSWITCH KIT, LIGHT CONTROL

main04841-30110iMS8#,95,RS80..RHD197410-197611

main04841-30130iMS8#,95,RS80..LHD197410-197611

sub04841-30131

84312PLATE, HORN CONTACT

main84312-20010iMS8#,95,RS80197410-197601

sub84312-20011

main84312-20011iMS8#,95,RS80197601-197908

84335SWITCH ASSY, PARKING LAMP

main84330-30060iMS85..RHD..ROY197410-197802

84450SWITCH ASSY, IGNITION OR STARTER

main84450-30120iMS8#,95,RS80..LHD197410-197802

sub84450-12041

main84450-30130iMS8#,95,RS80..RHD197511-197602

sub84450-30131

main84450-30131iMS8#,95,RS80..RHD197602-197908

sub84450-26040

84560SWITCH ASSY, FUEL VALVE CONTROL

84650SWITCH ASSY, WINDSHIELD WIPER

main84652-29015iMS85,88,RS80..RHD..(BTP,STD)197611-197702

sub84652-29016

main84652-29025iMS83,85,95..RHD..(DLX,ROY,SAL)197611-197908

sub84652-29026

main84652-29035iRS80..4F..EUR;MS85,88,RS80..LHD..(BTP,STD)..GEN197611-197908

main84652-29045iMS88,RS80..EUR197611-197908

main84652-29085iMS85,88,RS80..RHD..(BTP,STD)197702-197908

sub84652-29086

main84653-31010iMS83,88197501-197908

FOR REAR WIPER

84650ABOLT OR NUT, WINDSHIELD WIPER SWITCH SET

main90179-11189iMS83,88197501-197908

FOR REAR WIPER

84651KNOB, WINDSHIELD WIPER SWITCH

main84651-21010iMS83,88197501-197908

FOR REAR WIPER

84659BRACKET, REAR WIPER SWITCH

main78371-30010iMS83,88..RHD197501-197908

FOR REAR WIPER

main84952-31010iMS83,88..LHD197501-197908

FOR REAR WIPER

84730SWITCH ASSY, HEATER BLOWER

main84732-30030iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197611

sub84732-30031

main84732-30031iMS85..LHD..ROY197611-197802

main84732-30032iMS8#,95,RS80..BTP,DLX,SAL,STD197802-197908

main84732-30040iMS85..ROY197511-197611

sub84732-30041

main84732-30041iMS85..RHD..ROY197611-197802

main84732-30042iMS85..RHD..ROY197802-197908

84730BBULB, HEATER BLOWER SWITCH

main90981-11018iMS83,85,95,RS80197410-197908

12V 1.2W W/O SOCKET,12V 1.4W

84731KNOB, HEATER BLOWER SWITCH

main84731-30030iMS8#,95,RS80197410-197908

84732RETAINER, HEATER BLOWER SWITCH LEVER

main55918-30020iMS8#,95,RS80197410-197908

84790SWITCH ASSY, REAR WINDOW DEFOGGER

main84790-30060iMS8#,95,RS80197410-197601

sub84790-30100

main84790-30090iMS8#,95,RS80197601-197611

main84790-30091iMS8#,95,RS80197611-197908

84790BBULB(FOR REAR WINDOW DEFOGGER SWITCH)

main90981-11018iMS8#,95,RS80197410-197908

12V 1.2W W/O SOCKET,12V 1.4W

84840SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING

main84840-22010iMS85,95..DLX,ROY,SAL197410-197908

INSTRUMENT UNDER

main84840-30010iMS85,95..DLX,ROY,SAL197410-197908

GLOVE BOX

sub84840-30050

85500LIGHTER ASSY, CIGARETTE

main85500-14030iMS83,85,95,RS80197802-197908

TOKAI RIKA

sub85500-30270

main85500-30170iMS8#,95,RS80..3FC,4F197410-197908

REAR,TOKAI RIKA

sub85500-30171

main85500-30210iMS8#,95,RS80..3FC,4F197410-197802

REAR,STANLEY

sub85500-30170

main85500-30220iMS83,85,95..DLX,ROY,SAL197410-197802

TOKAI RIKA

main85500-30230iMS85,88,RS80..BTP,STD197410-197802

TOKAI RIKA

main85500-30231iMS88197802-197908

TOKAI RIKA

sub85500-30290

main85500-30240iMS83,85,95..DLX,ROY,SAL197501-197802

STANLEY

sub85500-20121

main85500-30250iMS85,88,RS80..BTP,STD197410-197802

STANLEY

sub85500-30230

88500BCOOLER AND ACCESSORY ASSY, REAR

9016450051

main90164-50051

9046106008

main90461-06008

9161140612

main91611-40612

9331514012

main93315-14012

9331913012

main93319-13012

9331915012

main93319-15012

31 parts on this diagram · 12 diagrams in section
