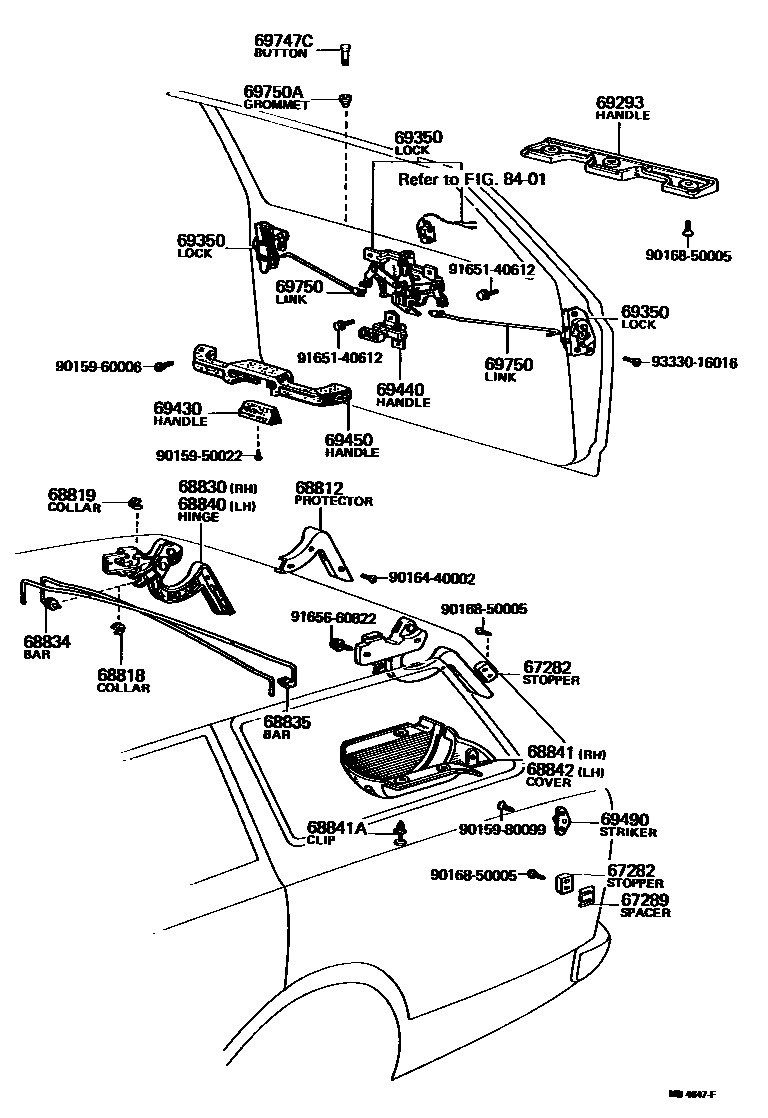

BACK DOOR LOCK & HANDLE

67282STOPPER, BACK DOOR, NO.1

main67281-91701iMS83,88197501-197908

67289SPACER, BACK DOOR SIDE STOPPER, LOWER

main67282-91701iMS83,88197501-197908

68812PROTECTOR, BACK DOOR HINGE ARM

main68845-91701-03iMS83197611-197908

RH.GRAY,GRAY,TRIM1#

sub68845-91701

main68845-91701-04iMS83197611-197908

RH.BLUE,BLUE,TRIM8#

sub68845-91701

main68845-91701-08iMS83197501-197611

RH.CREAM,IVORY

sub68845-91701

main68846-91702-03iMS83197611-197908

LH.GRAY,GRAY,TRIM1#

sub68846-91702

main68846-91702-04iMS83197611-197908

LH.BLUE,BLUE,TRIM8#

sub68846-91702

main68846-91702-08iMS83197501-197611

LH.CREAM,IVORY

sub68846-91702

68818COLLAR, TORSION BAR SUPPORT, NO.2

main68818-91501iMS83,88197501-197908

68819COLLAR, TORSION BAR SUPPORT, NO.1

main68819-91501iMS83,88197501-197908

68830HINGE ASSY, BACK DOOR, RH

main68810-91701iMS83,88197501-197908

68834BAR, BACK DOOR TORSION, RH

main68807-91701iMS83,88197501-197803

FOR W/REAR WIPER

sub68807-91703

main68807-91702iMS88197501-197803

sub68807-91704

main68807-91703iMS83,88197803-197908

FOR W/REAR WIPER

main68807-91704iMS88197803-197908

68835BAR, BACK DOOR TORSION, LH

main68808-91701iMS83,88197501-197803

FOR W/REAR WIPER

sub68808-91703

main68808-91702iMS88197501-197803

sub68808-91704

main68808-91703iMS83,88197803-197908

FOR W/REAR WIPER

main68808-91704iMS88197803-197908

68840HINGE ASSY, BACK DOOR, LH

main68820-91702iMS83,88197501-197908

68841COVER, TORSION BAR, RH

main68835-91701-03iMS83197611-197908

GRAY,GRAY,TRIM1#

sub68835-91701

main68835-91701-04iMS83197611-197908

BLUE,BLUE,TRIM8#

sub68835-91701

main68835-91701-08iMS83197501-197611

CREAM,IVORY

sub68835-91701

main68835-91702-03iMS88197611-197908

GRAY,GRAY

sub68835-91702

sub68835-91701

main68835-91702-08iMS88197501-197611

CREAM,IVORY

sub68835-91702

sub68835-91701

68841ACLIP(FOR TORSION BAR COVER)

main90467-08114-08iMS83,88197501-197611

IVORY,IVORY

sub90467-08114

main90467-08114-14iMS83,88197611-197908

BLUE,BLUE,TRIM8#

sub90467-08114

main90467-08114-43iMS83,88197611-197908

GRAY,GRAY,TRIM1#

sub90467-08114

68842COVER, TORSION BAR, LH

main68836-91701-03iMS83,88197611-197908

GRAY,GRAY,TRIM1#

sub68836-91701

main68836-91701-04iMS83,88197611-197908

BLUE,BLUE,TRIM8#

sub68836-91701

main68836-91701-08iMS83,88197501-197611

CREAM,IVORY

sub68836-91701

69293HANDLE, BACK DOOR

main69251-91701iMS83,88197501-197908

69350LOCK ASSY, BACK DOOR

main69350-91504iMS83,88197501-197908

RH.

main69360-91504iMS83,88197501-197908

LH.

main69790-91701iMS83197501-197908

CENTER

main69790-91702iMS88197501-197908

CENTER

sub69790-91701

69430HANDLE ASSY, BACK DOOR PULL CENTER

main69403-91701-03iMS83197611-197908

GRAY,GRAY,TRIM1#

sub69403-91701

main69403-91701-04iMS83197611-197908

BLUE,BLUE,TRIM8#

sub69403-91701

main69403-91701-06iMS83197501-197611

BROWN,BROWN

sub69403-91701

69440HANDLE ASSY, BACK DOOR INSIDE

main69404-91701iMS83197501-197908

69450HANDLE ASSY, BACK DOOR PULL

main69405-91701-03iMS83197611-197908

GRAY,GRAY,TRIM1#

sub69405-91701

main69405-91701-04iMS83197611-197908

BLUE,BLUE,TRIM8#

sub69405-91701

main69405-91701-06iMS83197501-197611

BROWN,BROWN

sub69405-91701

69490STRIKER ASSY, BACK DOOR LOCK

main69401-91701iMS83,88197501-197908

69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)

main69775-91501iMS83197501-197908

sub69741-91701

69750LINK SUB-ASSY, BACK DOOR REMOTE CONTROL

main69707-91701iMS83,88197501-197908

RH.

main69708-91701iMS83,88197501-197908

LH.

69750AGROMMET(FOR BACK DOOR REMOTE CONTROL)

main90480-10102iMS83197501-197908

8401

9015950022

main90159-50022

9015960006

main90159-60006

9015980099

main90159-80099

9016440002

main90164-40002

9016850005

main90168-50005

9165140612

main91651-40612

9165660822

main91656-60822

9333016016

main93330-16016

30 parts on this diagram · 1 diagram in section
