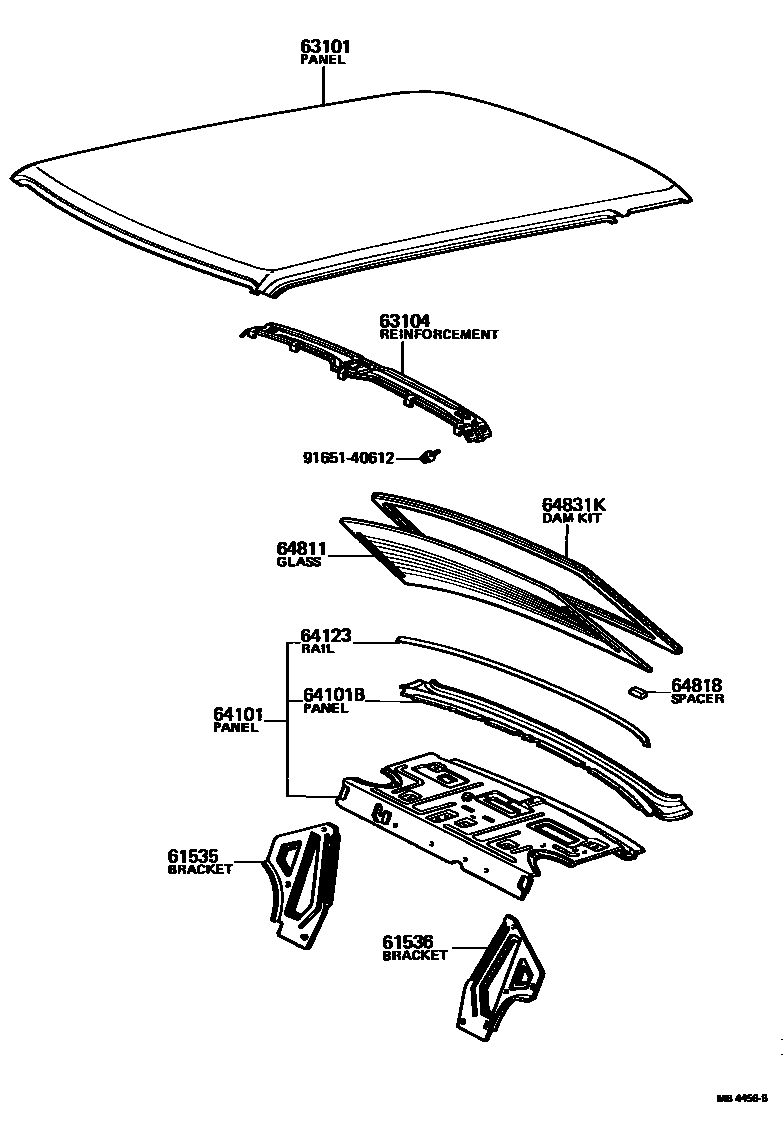

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

61535BRACKET, PACKAGE TRAY MOUNT, RH

main64211-30040iMS85,RS80197410-197908

sub64211-30900

main64211-30050iMS95197410-197908

61536BRACKET, PACKAGE TRAY MOUNT, LH

main64212-30030iMS85,RS80197410-197908

sub64212-30900

main64212-30040iMS95197410-197908

63101PANEL SUB-ASSY, ROOF

main63101-30110iMS85,RS80..BTP,DLX197410-197908

sub63111-30080

sub63132-30080

sub63133-30060

sub63137-30040

main63101-30130iMS85..ROY,SAL197410-197908

sub63111-30080

sub63132-30080

sub63133-30060

sub63137-30040

sub63139-30010

main63101-30140iMS95..2D197410-197908

sub63111-30090

sub63132-30070

sub63133-30070

sub63137-30050

main63101-30170iMS95..4D197412-197908

sub63111-30100

sub63132-30070

sub63133-30070

sub63137-30050

main63111-91701iMS83,88197501-197908

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-30070iMS85,RS80197410-197611

sub63103-30090

main63103-30071iMS85,RS80..BTP197611-197908

sub63103-30090

main63103-30080iMS95197410-197611

sub63103-30100

main63103-30081iMS95197611-197908

sub63103-30100

main63103-30090iMS85..DLX,ROY,SAL197611-197908

main63103-91701iMS83,88197501-197908

64101PANEL SUB-ASSY, UPPER BACK

main64101-30020iMS85,RS80197410-197502

sub64101-30021

sub77606-30021

sub93560-15012

main64101-30040iMS95197410-197502

sub64101-30041

sub77606-30051

sub93560-15012

main64101-30041iMS95197502-197611

sub64101-30042

main64101-30042iMS95197611-197908

main64101-30050iMS85,RS80197502-197802

sub64101-30051

sub90463-06381

main64101-30051iMS85,RS80197802-197908

64101BPANEL, UPPER BACK

main64111-30120iMS85,RS80197410-197908

main64111-30130iMS95197410-197908

64123RAIL, BACK WINDOW OPENING

main64123-30020iMS85,RS80197410-197908

main64123-30030iMS95197410-197908

64811GLASS, BACK WINDOW

main64801-30040iMS85..4F..SAL..GEN;MS85..(3FC,3H,3HC)..(ROY,SAL)197410-197611

ELECT.TN.TP.T=4.0,W/ANTENNA

sub64801-30041

main64801-30041iMS85..EUR,GEN;MS85..3FC..ARL;MS85..4F..SAL..ARL197611-197802

ELECT.TN.TP.T=4.0,W/ANTENNA

sub64801-30042

main64801-30042iRS80..GEN;MS85..EUR,GEN;RS80..4F..EUR197802-197809

ELECT.TN.TP.T=4.0,W/ANTENNA

main64801-30061iMS95197611-197802

ELECT.TN.TP.T=4.0,W/ANTENNA

main64801-30062iMS95197802-197908

ELECT.TN.TP.T=4.0,W/ANTENNA

main64801-30070iMS85,RS80..BTP197410-197802

ELECT.TP.T=4.0

sub64801-30042

main64801-30071iMS85,RS80..BTP197802-197908

ELECT.TP.T=4.0

sub64801-30042

main64801-30080iMS85..LHD..SAL..EUR197410-197802

ELECT.TN.TP.T=4.0

main64801-30081iRS80..GEN;MS85..EUR,GEN;RS80..4F..EUR197802-197908

ELECT.TN.TP.T=4.0

main64801-30090iMS95197410-197611

ELECT.TN.TP.T=4.0

sub64801-30060

main64801-30100iMS85..ARL197604-197611

ELECT.TP.T=5.0,W/ANTENNA

sub64801-30101

main64801-30100iMS85197410-197604

ELECT.TP.T=5.0,W/ANTENNA,ARL.

sub64801-30101

main64801-30101iMS85..SAL..ARL197611-197802

ELECT.TP.T=4.0,W/ANTENNA

sub64801-30042

main64801-30102iMS85..ARL197802-197809

ELECT.TP.T=4.0,W/ANTENNA

sub64801-30042

main64801-30120iRS80..4F..EUR;MS85,RS80..BTP..GEN197802-197809

TN.TP.T=4.0,W/ANTENNA

sub64801-30042

main64811-30160iMS85..3FC..BTP..ARL;MS85,RS80..BTP..(EUR,GEN)197410-197908

TP.T=4.0

sub64801-30042

main64811-30190iRS80..RHD..4F;MS85..RHD..4F..DLX197611-197809

TN.TP.T=4.0,FOR CKD

sub64801-30042

main64811-30190iMS85..DLX197410-197908

TN.TP.T=4.0

sub64801-30042

main64811-30200iMS95197410-197611

TN.TP.T=4.0

sub64801-30060

64818SPACER, BACK WINDOW GLASS

main56116-30020iMS85,RS80197410-197908

RH.

sub56116-24010

main64818-30030iMS85,RS80197410-197908

LH.

main64818-30040iMS95197410-197908

64831KDAM KIT, BACK WINDOW GLASS

main04562-30020iMS85,95,RS80197410-197908

sub04562-30030

9165140612

main91651-40612

11 parts on this diagram · 3 diagrams in section
