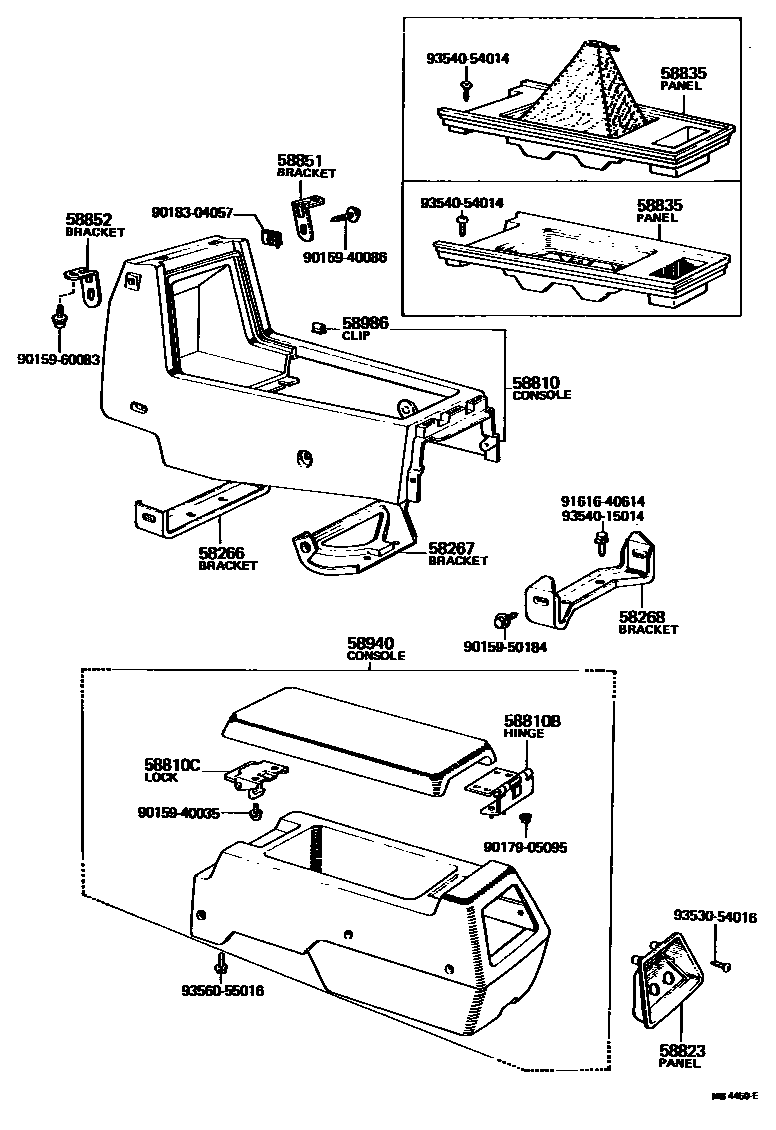

CONSOLE BOX & BRACKET

0001 1 0002 1

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58851-30050iMS8#,95,RS80..3FC,4F197410-197712

main58851-30051iMS8#,95,RS80..3FC,4F197712-197908

58267BRACKET, CONSOLE BOX SUPPORT, CENTER

main58852-30030iMS8#,95,RS80..3FC,4F197410-197712

main58852-30031iMS8#,95,RS80..3FC,4F197712-197908

58268BRACKET, CONSOLE BOX SUPPORT, REAR

main58853-30020iMS8#,95,RS80..3FC,4F197410-197712

main58853-30021iMS8#,95,RS80..3FC,4F197712-197908

58810CONSOLE ASSY

main58807-30010-01iMS8#,95,RS80..(3FC,4F)..(BTP,DLX,STD)197410-197611

BLACK,BLACK,TRIM1#

main58807-30010-06iMS8#,95,RS80..(3FC,4F)..(BTP,DLX,STD)197410-197611

BROWN,BROWN,TRIM0#,4#

main58807-30011-01iMS8#,95,RS80..3FC,4F197611-197908

BLACK,BLACK,TRIM1#

main58807-30011-04iMS8#,95,RS80..3FC,4F197611-197908

BLUE,BLUE,TRIM8#

main58807-30011-05iMS8#,95,RS80..3FC,4F197611-197908

BEIGE,BEIGE,TRIM4#

main58807-30030-01iMS85..(3FC,4F)..SAL197410-197611

BLACK,BLACK,TRIM1#

main58807-30030-06iMS85..(3FC,4F)..SAL197410-197611

BROWN,BROWN,TRIM0#,4#

58810BHINGE SUB-ASSY,CONSOLE COMPARTMENT DOOR

main58806-30030iMS8#,95,RS80..3FC,4F197410-197908

58810CLOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58803-30040iMS8#,95,RS80..3FC,4F197410-197908

sub58908-22010

58823PANEL, CONSOLE, REAR

main58903-30010iMS8#,95,RS80..(3FC,4F)..(BTP,DLX,STD)197802-197908

main58903-30020iMS85..RHD..4F..SAL197802-197908

FOR L/SEARCH.VOL

main58903-30030iMS85..(3FC,4F)..SAL197802-197908

main58903-30040iMS85..3FC..ROY197802-197908

main59103-30010-01iMS8#,95,RS80..(3FC,4F)..(BTP,DLX,STD)197410-197802

BLACK,BLACK

main59103-30010-06iMS8#,95,RS80..(3FC,4F)..(BTP,DLX,STD)197410-197611

BROWN,BROWN,TRIM4#

main59103-30030-01iMS85..(3FC,4F)..(ROY,SAL)197410-197802

BLACK,BLACK

main59103-30030-06iMS85..(3FC,4F)..SAL197410-197611

BROWN,BROWN,TRIM0#,4#

58835PANEL, CONSOLE, UPPER

main58805-30040iMS8#,95,RS80..4F..(BTP,DLX,STD)197410-197611

main58805-30070iMS85..4F..SAL197410-197611

main58805-30071iMS83,85,95..4F..(DLX,SAL)197611-197908

main58822-30070iMS83,85,95..3FC..(BTP,DLX)197410-197611

main58822-30100iMS85..3FC..SAL197410-197611

main58822-30101iMS83,85,95..3FC..(DLX,ROY,SAL)197611-197908

58851BRACKET, CONSOLE SUPPORT, UPPER RH

main58859-30030iMS8#,95,RS80..LHD..(3FC,4F)197410-197908

58852BRACKET, CONSOLE SUPPORT, UPPER LH

main58859-30020iMS8#,95,RS80..RHD..(3FC,4F)197410-197908

58940CONSOLE ASSY, REAR

main58905-30020-01iMS8#,95,RS80..3FC,4F197410-197908

BLACK,BLACK,TRIM1#

main58905-30020-04iMS8#,95,RS80..3FC,4F197611-197908

BLUE,BLUE,TRIM8#

main58905-30020-05iMS8#,95,RS80..3FC,4F197611-197908

BEIGE,BEIGE,TRIM4#

main58905-30020-06iMS8#,95,RS80..3FC,4F197410-197611

BROWN,BROWN,TRIM0#,4#

58986CLIP, CONSOLE, FINISH PALTE

main58986-30010×2iMS8#,95,RS80..3FC,4F197410-197908

9015940035

main90159-40035

9015940086

main90159-40086

9015950184

main90159-50184

9015960083

main90159-60083

9017905095

main90179-05095

9018304057

main90183-04057

9161640614

main91616-40614

9353054016

main93530-54016

9354015014

main93540-15014

9354054014

main93540-54014

9356055016

main93560-55016

23 parts on this diagram · 2 diagrams in section
