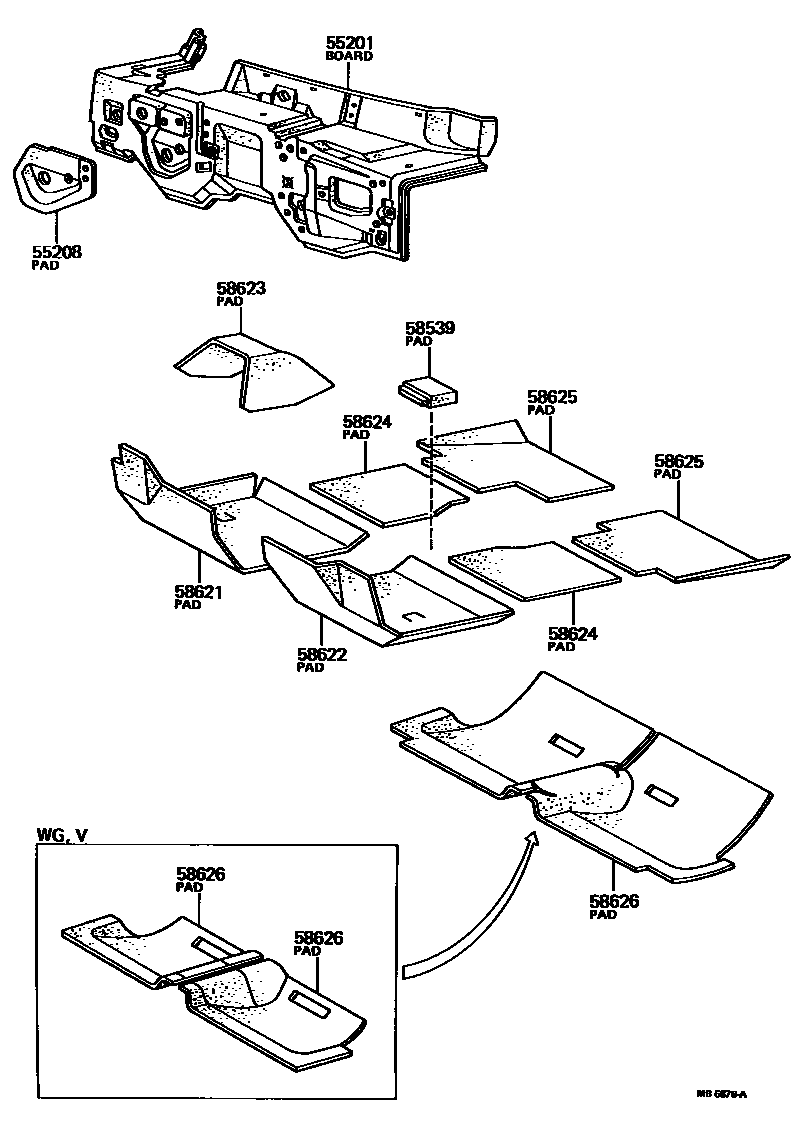

DASH SILENCER BOARD & FLOOR SILENCER PAD

55201BOARD SUB-ASSY, DASH PANEL SILENCER

main55210-30110iMS85,95,RS80..LHD197410-197908

FOR W/HEATER,W/COOLER

main55210-30120iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197802

FOR W/HEATER,L/COOLER

main55210-30121iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197802-197908

FOR W/HEATER,L/COOLER

main55210-30130iMS85,95,RS80..RHD197410-197802

FOR W/HEATER,W/COOLER

main55210-30131iMS85,95,RS80..RHD197802-197908

FOR W/HEATER,W/COOLER

main55210-30140iMS85,88,RS80..RHD..(BTP,STD)197410-197802

FOR L/HEATER,L/COOLER

main55210-30141iMS85,88,RS80..RHD..(BTP,STD)197802-197908

FOR L/HEATER,L/COOLER

main55210-30150iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197802

FOR W/BOOST VENTILATOR

main55210-30151iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197802-197908

FOR W/BOOST VENTILATOR

main55210-30160iMS85,88,RS80..LHD..(BTP,STD)197410-197908

FOR L/HEATER,L/COOLER

main55210-30170iMS8#,95,RS80..LHD..(BTP,DLX,SAL,STD)197410-197908

FOR W/BOOST VENTILATOR

main55210-30180iMS8#,95,RS80..LHD..(BTP,DLX,SAL,STD)197410-197908

FOR W/HEATER,L/COOLER

55208PAD SUB-ASSY, DASH PANEL SILENCER, CENTER NO.1

main55213-30090iMS8#,RS80..RHD..(3H,3HC,4H)197410-197802

main55213-30091iMS8#,RS80..RHD..(3H,3HC,4H)..(BTP,DLX,SAL,STD)197802-197908

main55213-30100iMS8#,95,RS80..RHD..(3FC,4F)197410-197802

main55213-30101iMS8#,95,RS80..RHD..(3FC,4F)197802-197908

main55213-30110iMS8#,RS80..LHD..(3H,3HC,4H)197410-197908

main55213-30120iMS8#,95,RS80..LHD..(3FC,4F)197410-197908

main55213-30131iMS85,95,RS80..RHD197802-197908

FOR W/COOLER

58539PAD, FLOOR CARPET FINISHED

main58539-30010iMS8#,RS80..3H,3HC,4H197410-197908

58621PAD, FLOOR SILENCER, FRONT RH

main58621-30080iMS83,85,95,RS80197410-197908

FOR CARPET

main58621-30090iMS88197501-197908

58622PAD, FLOOR SILENCER, FRONT LH

main58622-30070iMS88..GEN197410-197908

FOR CARPET

58623PAD, FLOOR SILENCER, FRONT CENTER

main58623-30120iMS83,85,95,RS80197410-197908

FOR CARPET

main58623-30130iRS80..4F..EUR;MS85,RS80..BTP..GEN197802-197908

58624PAD, FLOOR SILENCER, REAR SIDE

main58624-30080iMS83,85,95,RS80197410-197908

FOR CARPET

main58624-30090iRS80..4F..EUR;MS85,RS80..BTP..GEN197501-197908

58625PAD, FLOOR SILENCER, REAR CENTER

main58627-30010iMS83,85,95,RS80197511-197908

FOR CARPET

main58627-30010iMS83,85,95,RS80197410-197511

RH.

main58627-30010iMS88..GEN197707-197908

FOR CARPET,RH.

main58627-30020iMS88197501-197508

sub58627-30030

main58627-30030iRS80..4F..EUR;MS85,RS80..BTP..GEN197508-197908

main58628-30010iMS83,85,95,RS80197410-197511

LH.

sub58627-30010

main58628-91701iMS88..GEN197707-197908

FOR CARPET,LH.

58626PAD, FLOOR SILENCER, REAR

main58657-30020iMS85,95,RS80..BTP,DLX,SAL197410-197908

FOR CARPET

main58657-30030iRS80..4F..EUR;MS85,RS80..BTP..GEN197802-197908

sub58657-30020

main58657-30040iMS85..ROY197511-197908

FOR CARPET

main58657-91701iMS83,88197501-197906

main58657-91701iMS88197906-197908

LH.

main58657-91703iMS88197906-197908

RH.

9 parts on this diagram · 1 diagram in section
