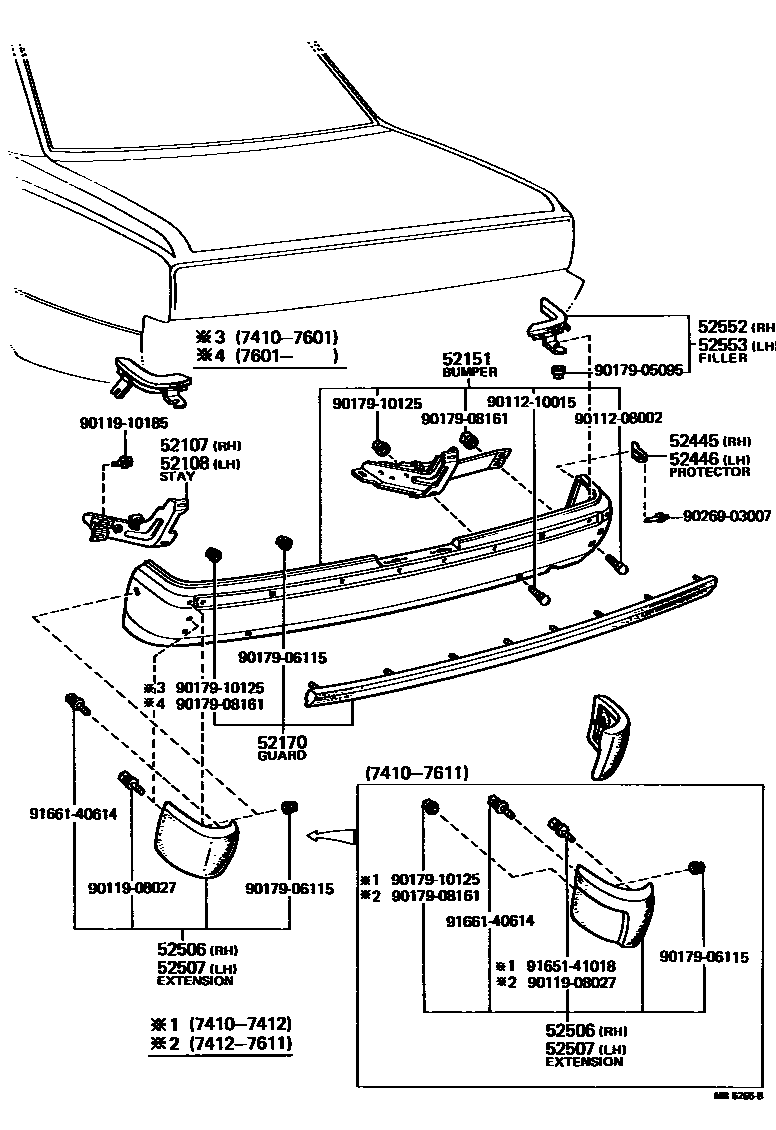

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52107STAY SUB-ASSY, REAR BUMPER, RH

main52013-30070iMS85,RS80197410-197908

sub52013-30080

main52013-30080iMS95197410-197908

main52013-91701iMS83197501-197908

main52013-91702iMS88197501-197908

52108STAY SUB-ASSY, REAR BUMPER, LH

main52014-30070iMS85,RS80197410-197908

sub52014-30080

main52014-30080iMS95197410-197908

main52014-91701iMS83197501-197908

main52014-91702iMS88197501-197908

52151BUMPER ASSY, REAR

main52151-39047iMS95197611-197908

sub52151-30102

main52151-39057iMS95197802-197908

FOR BUMPER GUARD

sub52151-30112

main52151-39075iMS85,95,RS80..BTP,DLX197410-197611

sub52151-39076

main52151-39077iMS85,RS80..BTP,DLX197611-197908

sub52151-30132

main52151-39085iMS85..3FC..ARL;MS85,95,RS80..GEN;MS85..4F..SAL..ARL197410-197611

FOR BUMPER GUARD

sub52151-39086

main52151-39087iMS85..3FC..ARL;MS85,RS80..EUR,GEN;MS85..4F..SAL..ARL197611-197908

FOR BUMPER GUARD

sub52151-30142

main52151-91911iMS83197501-197908

sub52151-91701

main52151-91912iMS88197501-197908

sub52151-91702

52170GUARD SUB-ASSY, REAR BUMPER

main52055-39015iMS85,95,RS80197410-197601

sub52055-39016

main52055-39016iMS85..3FC..ARL;MS85..4F..SAL..ARL;MS85,95,RS80..EUR,GEN197601-197908

52445PROTECTOR, REAR BUMPER, RH

main52541-30010iMS85,95,RS80197410-197609

sub52541-30011

main52541-30011iMS85,95,RS80197609-197908

52446PROTECTOR, REAR BUMPER, LH

main52541-30010iMS85,95,RS80197410-197609

sub52541-30011

main52541-30011iMS85,95,RS80197609-197908

52506EXTENSION SUB-ASSY, REAR BUMPER, RH

main52462-39015iMS85,95,RS80197410-197611

main52462-39016iMS85,95,RS80197611-197908

52507EXTENSION SUB-ASSY, REAR BUMPER, LH

main52463-39015iMS85,95,RS80197410-197611

main52463-39016iMS85,95,RS80197611-197908

52552FILLER, REAR BUMPER, RH

main52552-39015iMS85,95,RS80197410-197908

52553FILLER, REAR BUMPER, LH

main52553-39015iMS85,95,RS80197410-197908

9011208002

main90112-08002

9011210015

main90112-10015

9011908027

main90119-08027

9011910185

main90119-10185

9017905095

main90179-05095

9017906115

main90179-06115

9017908161

main90179-08161

9017910125

main90179-10125

9026903007

main90269-03007

9165141018

main91651-41018

9166140614

main91661-40614

21 parts on this diagram · 2 diagrams in section
