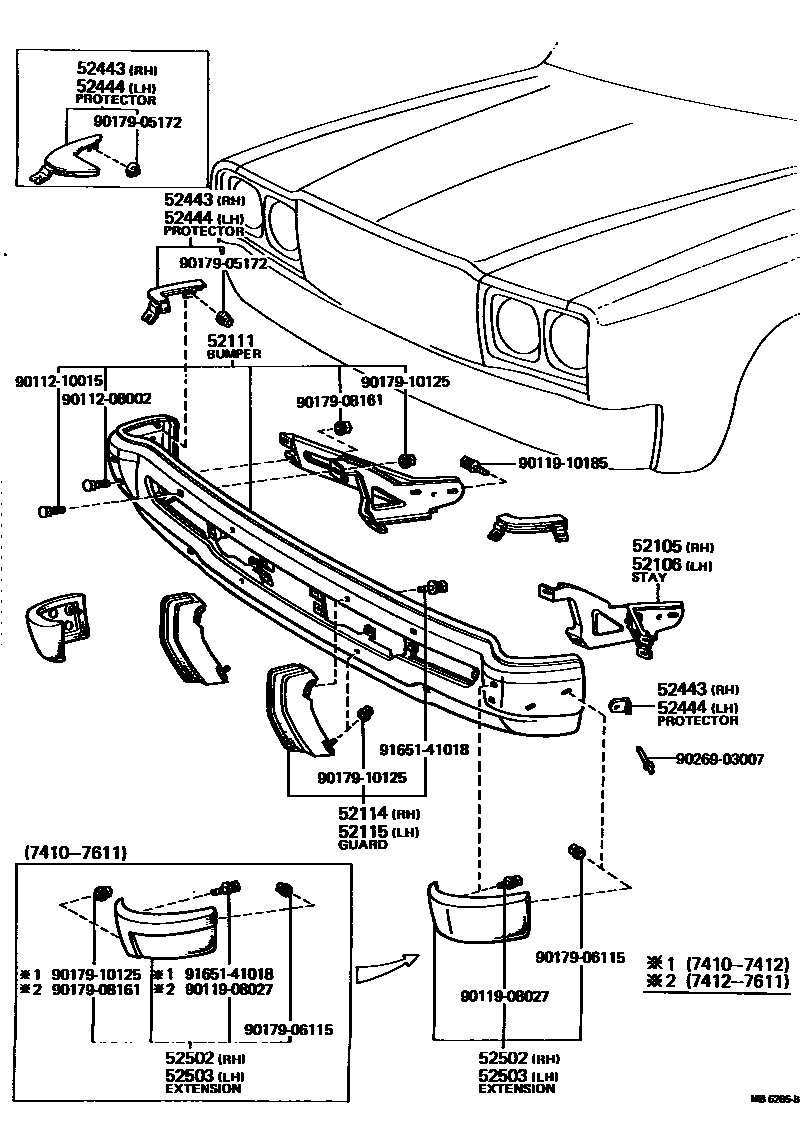

FRONT BUMPER & BUMPER STAY

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-30050iMS83,85,95,RS80197410-197908

main52011-91701iMS88197501-197908

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-30050iMS83,85,95,RS80197410-197908

main52012-91701iMS88197501-197908

52111BUMPER ASSY, FRONT

main52101-39035iMS8#,95,RS80..BTP,DLX,STD197410-197611

sub52101-39036

main52101-39037iMS8#,95,RS80..BTP,DLX,STD197611-197908

sub52101-30042

main52101-39045iMS83..3FC,3H;MS83..4F..GEN;MS85,88,95,RS80197410-197611

FOR BUMPER GUARD

sub52101-39046

main52101-39047iMS83..3FC,3H;MS85,88,95,RS80;MS83..4F..(EUR,GEN)197611-197908

FOR BUMPER GUARD

sub52101-30052

52114GUARD, BUMPER, FRONT RH

main52401-39015iMS83..3FC,3H;MS85,88,95,RS80;MS83..4F..(EUR,GEN)197410-197908

52115GUARD, BUMPER, FRONT LH

main52401-39015iMS83..3FC,3H;MS85,88,95,RS80;MS83..4F..(EUR,GEN)197410-197908

52443PROTECTOR, FRONT BUMPER, RH

main52512-39015iMS8#,95,RS80197410-197802

UPPER

main52512-39016iMS8#,95,RS80..BTP,DLX,STD197802-197908

UPPER

main52512-39025iMS85..ROY,SAL197802-197908

UPPER

main52541-30020iMS8#,95,RS80197410-197609

LOWER

sub52541-30021

main52541-30021iMS8#,95,RS80197609-197908

LOWER

52444PROTECTOR, FRONT BUMPER, LH

main52513-39015iMS8#,95,RS80197410-197802

UPPER

main52513-39016iMS8#,95,RS80..BTP,DLX,STD197802-197908

UPPER

main52513-39025iMS85..ROY,SAL197802-197908

UPPER

main52541-30020iMS8#,95,RS80197410-197609

LOWER

sub52541-30021

main52541-30021iMS8#,95,RS80197609-197908

LOWER

52502EXTENSION SUB-ASSY, FRONT BUMPER, RH

main52422-39025iMS8#,95,RS80197410-197611

main52422-39026iMS8#,95,RS80197611-197908

52503EXTENSION SUB-ASSY, FRONT BUMPER, LH

main52423-39015iMS8#,95,RS80197410-197611

main52423-39016iMS8#,95,RS80197611-197908

9011208002

main90112-08002

9011210015

main90112-10015

9011908027

main90119-08027

9011910185

main90119-10185

9017905172

main90179-05172

9017906115

main90179-06115

9017908161

main90179-08161

9017910125

main90179-10125

9026903007

main90269-03007

9165141018

main91651-41018

19 parts on this diagram · 1 diagram in section
