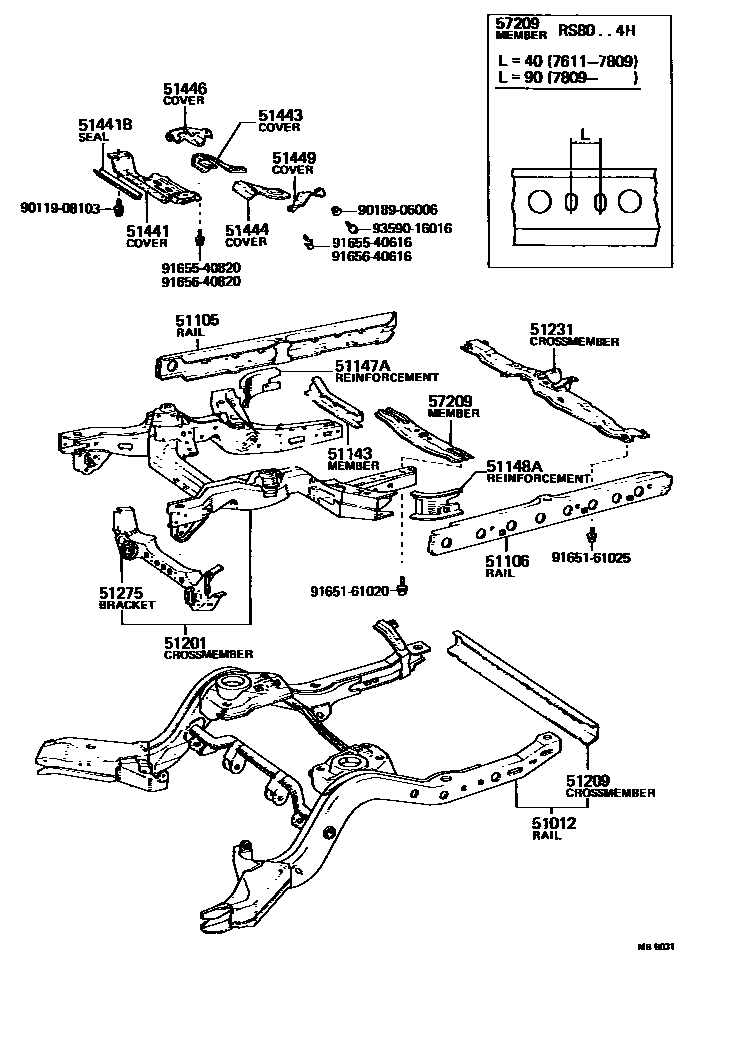

FRAME

0001 1 0002 1

51012RAIL SUB-ASSY, REAR FRAME

main51012-30130iMS85,95,RS80197410-197606

main51012-30132iMS85,95197802-197908

main51012-30150iMS95197505-197606

sub51012-30130

main51012-30151iMS83197802-197908

sub51012-30131

main51012-30161iMS83,85,95,RS80197611-197802

sub51012-30132

sub77253-30091

main51012-30171iRS80197802-197903

sub51012-30161

main51012-30180iRS80197903-197908

main51012-30200iMS85,RS80197606-197611

sub51012-30130

main51012-30210iMS95197606-197611

sub51012-30150

main51012-31080iMS83197501-197606

main51012-31090iMS88197501-197611

main51012-31091iMS88197611-197908

main51012-31100iMS83197606-197611

sub51012-31080

51105RAIL SUB-ASSY, CENTER FRAME, RH

main51105-30040iMS8#,95,RS80197410-197908

51106RAIL SUB-ASSY, CENTER FRAME, LH

main51106-30040iMS8#,95,RS80197410-197908

51143REINFORCEMENT, SIDE RAIL, REAR RH

main51103-30050iMS8#,95,RS80197611-197908

main51143-30020iMS8#,95,RS80197410-197611

51147AREINFORCEMENT, CENTER FRAME RAIL, FRONT RH

main51147-30010iMS8#,95,RS80197410-197908

51148AREINFORCEMENT, CENTER FRAME RAIL FRONT, LH

main51148-30010iMS8#,95,RS80197410-197908

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51011-30130iMS8#,95197410-197802

sub51011-30250

sub04485-30031

sub04485-30041

sub33705-30110

sub33705-30120

sub33705-30140

sub51451-30031

sub51451-30041

sub90119-12017

sub90565-15016

sub90565-15017

sub90565-15018

main51011-30131iMS8#,95197802-197808

sub51011-30132

main51011-30132iMS8#,95197808-197903

sub51011-30133

sub33705-30110

sub33705-30120

sub33705-30140

sub51451-30031

sub51451-30041

main51011-30133iMS8#,95197903-197908

sub51011-30280

sub04485-30031

sub04485-30041

sub90119-12017

sub90565-15016

sub90565-15017

sub90565-15018

main51011-30140iRS80197410-197802

sub51011-30260

sub04485-30031

sub04485-30041

sub33705-30110

sub33705-30130

sub33705-30140

sub51451-30031

sub51451-30041

sub90119-12017

sub90565-15016

sub90565-15017

sub90565-15018

main51011-30141iRS80197802-197808

sub51011-30142

main51011-30142iRS80197808-197903

sub51011-30143

sub33705-30110

sub33705-30130

sub33705-30140

sub51451-30031

sub51451-30041

main51011-30143iRS80197903-197908

sub51011-30290

sub04485-30031

sub04485-30041

sub90119-12017

sub90565-15016

sub90565-15017

sub90565-15018

51209CROSSMEMBER SUB-ASSY, FRAME, NO.8

main51291-30060iMS83,85,95,RS80197410-197908

main51291-31030iMS88197501-197908

51231CROSSMEMBER, CENTER SUPPORT BEARING

main51203-30060iMS8#,95197410-197611

sub51203-30062

main51203-30061iMS8#,95197611-197903

sub51203-30062

main51203-30062iMS8#,95197903-197908

51275BRACKET SUB-ASSY, STRUT BAR

main51207-30040iMS8#,95,RS80197410-197809

main51207-30041iMS8#,95,RS80197809-197908

sub51207-30030

51441COVER, ENGINE UNDER, NO.1

main51441-30060iMS8#,95,RS80197410-197908

51441BSEAL, ENGINE UNDER COVER TO RADIATOR SUPPORT

main51458-30020iMS8#,95,RS80..GEN197410-197608

main51458-30021iMS8#,95,RS80..GEN197608-197802

sub51458-30031

main51458-30030iMS83,85..ARL197604-197608

main51458-30031iMS83,85..ARL,EUR197608-197908

51443COVER, ENGINE UNDER, REAR RH

main51443-30090iRS80197410-197908

51444COVER, ENGINE UNDER, REAR LH

main51444-30100iMS8#,95197410-197908

main51444-30110iRS80197410-197908

51446COVER, FRONT FRAME UNDER, RH

main51448-30020iMS8#,95,RS80197410-197908

sub51406-30010

51449COVER, FRONT FRAME UNDER, LH

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main51022-30010iRS80..3H,4F197611-197908

main51221-30060iMS8#,RS80..3H197410-197503

sub51221-30090

sub51451-30030

main51221-30070iMS8#,95,RS80..4F197410-197503

sub51221-30110

sub51451-30030

main51221-30080iMS83,85,95,RS80..3FC,3HC,4H197410-197503

sub51221-30100

sub51451-30030

main51221-30090iMS8#,RS80..3H197503-197508

main51221-30100iRS80..4H197611-197809

L=40

main51221-30100iMS83,85,95,RS80..3FC,3HC,4H197503-197611

main51221-30101iRS80..4H197809-197908

L=90

main51221-30110iMS8#,95,RS80..3H,4F197503-197908

9011908103

main90119-08103

9018906006

main90189-06006

9165161020

main91651-61020

9165161025

main91651-61025

9165540616

main91655-40616

9165540820

main91655-40820

9165640616

main91656-40616

9165640820

main91656-40820

9359016016

main93590-16016

26 parts on this diagram · 2 diagrams in section
