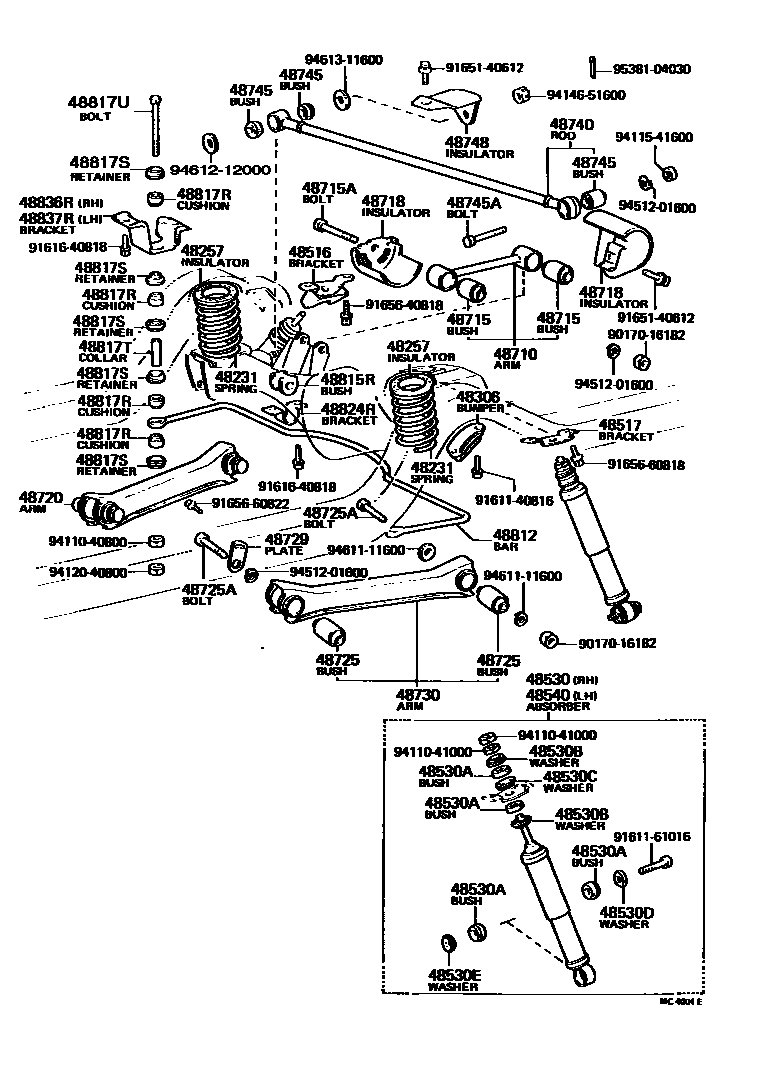

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48231SPRING, COIL, REAR

main48231-30180iMS85..ROY197511-197611

sub48231-30490

main48231-30190iMS85..LHD..3H..BTP197511-197908

SU.OMAN TAXI SPEC.

main48231-30190iRS80..LHD..4H197504-197611

IRAQ TAXI SPEC.

main48231-30190iRS80..LHD..3H197802-197908

MIDDLE EAST SPEC.

main48231-30210iMS85,95,RS80..BTP,DLX,SAL197410-197609

main48231-30211iMS95,RS80;MS85..LHD..EUR;MS85..(BTP,DLX,SAL)..(ARL,GEN)197609-197908

main48231-30230iMS85..ROY197611-197908

main48231-31040iMS83197501-197908

48257INSULATOR, REAR COIL SPRING

main48257-30020iMS83,85..ARL197604-197908

FOR LH.

main48257-30020iMS83,85,95,RS80197410-197604

main48257-30030iMS85..LHD..ROY197604-197908

FOR RH.

48306BUMPER SUB-ASSY, REAR SPRING

main48306-30060iMS83,85,95,RS80197410-197908

main48306-39015iMS88197501-197908

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-30010iMS83,85..ARL197604-197908

main48516-30010iMS83,85,95,RS80..EUR,GEN197410-197908

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48516-30010iMS83,85,95,RS80197410-197908

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39205iMS88197501-197908

main48531-39215iMS83,85,95,RS80197410-197503

sub48531-39225

main48531-39225iMS83,85,95,RS80197503-197611

sub48531-39226

main48531-39226iMS83,95,RS80;MS85..LHD..EUR;MS85..(BTP,DLX,SAL)..(ARL,GEN)197611-197908

sub48531-39227

main48531-39245iMS85..ROY197611-197908

sub48531-39555

main48531-39265iMS85..LHD..ROY197703-197908

sub48531-39266

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iMS83,85,95,RS80197410-197908

FOR LOWER

main90385-16007iMS88197501-197908

main90948-01003iMS83,85,95,RS80197410-197908

FOR UPPER

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002iMS83,85,95,RS80197410-197908

main90948-03003iMS88197501-197908

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02007iMS83,85,95,RS80197410-197908

main90948-03004iMS88197501-197908

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03007iMS8#,95,RS80197410-197908

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iMS8#,95,RS80197410-197908

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39205iMS88197501-197908

main48531-39215iMS83,85,95,RS80197410-197503

sub48531-39225

main48531-39225iMS83,85,95,RS80197503-197611

sub48531-39226

main48531-39226iMS83,95,RS80;MS85..LHD..EUR;MS85..(BTP,DLX,SAL)..(ARL,GEN)197611-197908

sub48531-39227

main48531-39245iMS85..ROY197611-197908

sub48531-39555

main48531-39265iMS85..EUR197703-197908

sub48531-39266

48710ARM ASSY, UPPER CONTROL

main48710-30030iMS83,85,95,RS80197410-197908

sub48710-30060

48715BUSH, UPPER CONTROL ARM

main48702-30031iMS83,85,95,RS80197410-197908

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90101-16381iMS83,85,95,RS80197410-197908

48718INSULATOR, UPPER CONTROL ARM BUSH HEAT

main48718-30010iMS83,85..ARL197604-197611

FOR FRONT

sub17574-45040

main48719-30010iMS83,85..ARL197604-197908

FOR REAR

48720ARM ASSY, LOWER CONTROL, RH

main48720-30030iMS83,85,95,RS80197410-197908

sub48720-30060

48725BUSH, LOWER CONTROL ARM

main48702-30031iMS83,85,95,RS80197410-197908

48725ABOLT(FOR LOWER CONTROL ARM)

main90101-16381iMS83,85,95,RS80197410-197908

48729PLATE, LOWER CONTROL ARM BOLT LOCK

main48729-30010iMS83,85,95,RS80197410-197908

48730ARM ASSY, LOWER CONTROL, LH

main48720-30030iMS83,85,95,RS80197410-197908

sub48720-30060

48740ROD ASSY, REAR LATERAL CONTROL

main48740-30020iMS83,85,95,RS80197410-197908

sub48740-30030

48745BUSH, LATERAL CONTROL ROD

main48706-30010iMS83,85,95,RS80197410-197908

FRAME SIDE

main90385-20048iMS83,85,95,RS80197410-197908

HOUSING SIDE

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90101-16471iMS83,85,95,RS80197410-197908

48748INSULATOR, LATERAL CONTROL ROD BUSH HEAT

main48748-30010iMS83,85..ARL197604-197908

48812BAR, STABILIZER, REAR

main48812-30010iMS85..RHD..ROY197611-197908

main48812-30020iMS85..EUR197611-197908

48815RBUSH, STABILIZER(FOR REAR)

main48815-22010iMS85..RHD..ROY197611-197908

main48815-30070iMS85..EUR197611-197908

48817RCUSHION, STABILIZER(FOR REAR)

main48817-10010iMS85..ROY197611-197908

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024iMS85..ROY197611-197908

T=1.2

main90948-02025iMS85..ROY197611-197908

T=1.0

48817TCOLLAR(FOR STABILIZER REAR BAR)

main90387-09040iMS85..ROY197611-197908

48817UBOLT(FOR REAR STABILIZER)

main90101-08274iMS85..ROY197611-197908

48824RBRACKET, STABILIZER(FOR REAR)

main48824-22010iMS85..ROY197611-197908

48836RBRACKET, REAR STABILIZER END, RH

main48836-30020iMS85..ROY197611-197908

48837RBRACKET, REAR STABILIZER END, LH

main48836-30020iMS85..ROY197611-197908

9017016182

main90170-16182

9161140816

main91611-40816

9161161016

main91611-61016

9161640818

main91616-40818

9165140612

main91651-40612

9165640818

main91656-40818

9165660818

main91656-60818

9165660822

main91656-60822

9411040800

main94110-40800

9411041000

main94110-41000

9411541600

main94115-41600

9412040800

main94120-40800

9414651600

main94146-51600

9451201600

main94512-01600

9461111600

main94611-11600

9461212000

main94612-12000

9461311600

main94613-11600

9538104030

main95381-04030

52 parts on this diagram · 3 diagrams in section
