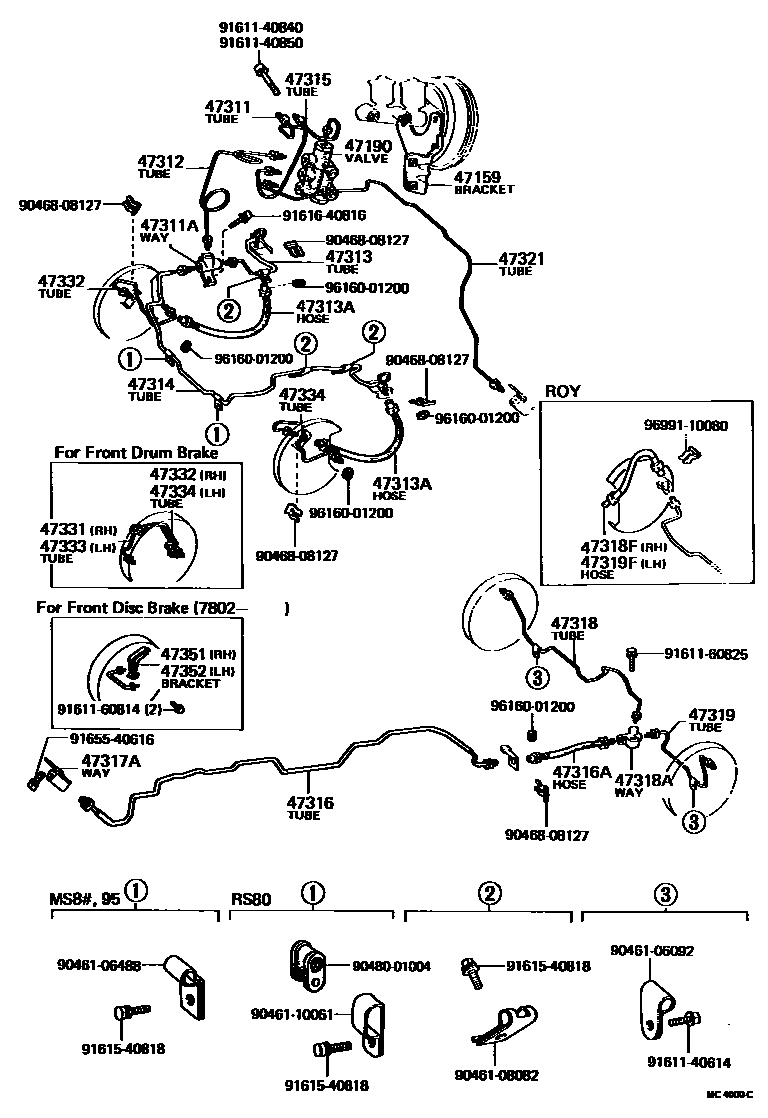

BRAKE TUBE & CLAMP

0001 1 0002 1

47159BRACKET, PROPORTIONING VALVE

main47159-30070iMS8#,95,RS80..RHD197410-197908

main47159-30080iMS8#,95,RS80..LHD197410-197908

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-30020iMS85,95,RS80..RHD..(BTP,DLX,SAL)197410-197908

FOR FRONT DISC BRAKE

main47190-30030iMS85..RHD..ROY197511-197802

FOR FRONT & REAR DISC BRAKE

main47190-30030iMS85..ARL197802-197908

main47190-30040iRS80..RHD197410-197908

FOR FRONT DRUM BRAKE

main47190-30050iRS80..LHD197410-197908

FOR FRONT DRUM BRAKE

main47190-30060iMS85..LHD..ROY197702-197908

main47190-30070iMS8#,95,RS80..LHD197706-197802

main47190-30070iMS85,95,RS80..LHD197802-197908

FOR FRONT DISC BRAKE

main47190-30080iMS85..RHD..ROY197812-197908

FOR REAR DISC BRAKE

47311TUBE, FRONT BRAKE, NO.1

main47311-30250iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197908

main47311-30260iMS8#,95,RS80..LHD..(BTP,DLX,SAL,STD)197410-197908

main47311-30270iMS85..RHD..ROY197511-197908

main47311-30280iMS85..LHD..ROY197702-197908

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10014iMS83,85,95,RS80..RHD197802-197908

main90413-10150iMS83,85,95,RS80..LHD197410-197908

47312TUBE, FRONT BRAKE, NO.2

main47311-30210iMS8#,95,RS80..RHD197410-197802

sub47311-30230

main47311-30220iMS8#,95,RS80..LHD197410-197908

main47311-30230iMS8#,95,RS80..RHD197802-197908

47313TUBE, FRONT BRAKE, NO.3

main47313-30060iMS8#,95,RS80..RHD197410-197802

main47313-30061iMS8#,95,RS80..RHD197802-197908

main47313-30070iMS8#,95,RS80..LHD197410-197802

main47313-30071iMS8#,95,RS80..LHD197802-197908

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02360iMS8#,95,RS80197802-197908

FOR FRONT DISC BRAKE

main90947-02361iRS80..GEN197802-197908

FOR FRONT DRUM BRAKE

main96950-31323iMS8#,95,RS80197410-197802

sub96950-33205

47314TUBE, FRONT BRAKE, NO.4

main47314-30080iMS8#,95,RS80..RHD197410-197802

main47314-30081iMS8#,95,RS80..RHD197802-197908

main47314-30090iMS8#,95,RS80..LHD197410-197802

main47314-30091iMS8#,95,RS80..LHD197802-197908

47315TUBE, FRONT BRAKE, NO.5

main47315-30120iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197908

main47315-30130iMS8#,95,RS80..LHD..(BTP,DLX,SAL,STD)197410-197908

main47315-30140iMS85..RHD..ROY197511-197908

main47315-30150iMS85..LHD..ROY197702-197908

47316TUBE, FRONT BRAKE, NO.6

main47316-30080iMS83,85,95,RS80..EUR,GEN197410-197802

main47316-30110iMS83,85..ARL197604-197908

main47316-31060iMS88197501-197802

main47316-31080iMS88..RHD197802-197908

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02221iMS83,85,95,RS80197410-197902

sub96940-33055

main90947-02222iMS88197501-197902

sub96940-33555

main96940-33055iMS83,85,95,RS80197902-197908

main96940-33555iMS88197902-197908

47317AWAY(FOR BRAKE TUBE)

main90412-10041iMS8#,95,RS80..RHD197410-197908

47318TUBE, FRONT BRAKE, NO.8

main47318-30070iMS83,85,95,RS80..BTP,DLX,SAL197410-197908

main47318-30080iMS85..ROY197511-197908

main47318-31030iMS88197501-197908

47318AWAY(FOR REAR RH BRAKE TUBE)

main90413-10147iMS8#,95,RS80197410-197908

47318FHOSE, FLEXIBLE(FOR REAR RH)

main96940-31283iMS85..ROY197511-197908

sub96940-32805

47319TUBE, FRONT BRAKE, NO.9

main47319-30070iMS83,85,95,RS80..BTP,DLX,SAL197410-197908

main47319-30080iMS85..ROY197511-197908

main47319-31030iMS88197501-197908

47319FHOSE, FLEXIBLE(FOR REAR LH)

main96940-31283iMS85..ROY197511-197908

sub96940-32805

47321TUBE, REAR BRAKE, NO.1

main47317-30060iMS8#,95,RS80..RHD197410-197802

sub47317-30061

main47317-30061iMS8#,95,RS80..RHD197802-197908

main47317-30070iMS8#,95,RS80..LHD197410-197908

47331TUBE, REAR BRAKE, NO.10

main47331-30061iRS80197410-197908

47332TUBE, REAR BRAKE, NO.11

main47332-30090iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197802

FOR FRONT DISC BRAKE

main47332-30100iMS85..ROY197511-197802

FOR FRONT DISC BRAKE

main47332-30110iRS80..GEN197410-197908

FOR FRONT DRUM BRAKE

main47341-30010iMS8#,95,RS80197802-197908

FOR FRONT DISC BRAKE

47333TUBE, REAR BRAKE, NO.12

main47331-30061iRS80197410-197908

47334TUBE, REAR BRAKE, NO.13

main47334-30090iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197802

FOR FRONT DISC BRAKE

main47334-30100iMS85..ROY197511-197802

FOR FRONT DISC BRAKE

main47334-30110iRS80197410-197908

FOR FRONT DRUM BRAKE

main47343-30010iMS8#,95,RS80197802-197908

FOR FRONT DISC BRAKE

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-30120iMS8#,95,RS80197802-197908

FOR FRONT DISC BRAKE

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-30070iMS8#,95,RS80197802-197908

FOR FRONT DISC BRAKE

9046106092

main90461-06092

9046106488

main90461-06488

9046108082

main90461-08082

9046110061

main90461-10061

9046808127

main90468-08127

9048001004

main90480-01004

9161140614

main91611-40614

9161140840

main91611-40840

9161140850

main91611-40850

9161160814

main91611-60814

9161160825

main91611-60825

9161540818

main91615-40818

9161640816

main91616-40816

9165540616

main91655-40616

9616001200

main96160-01200

9699110080

main96991-10080

40 parts on this diagram · 2 diagrams in section
