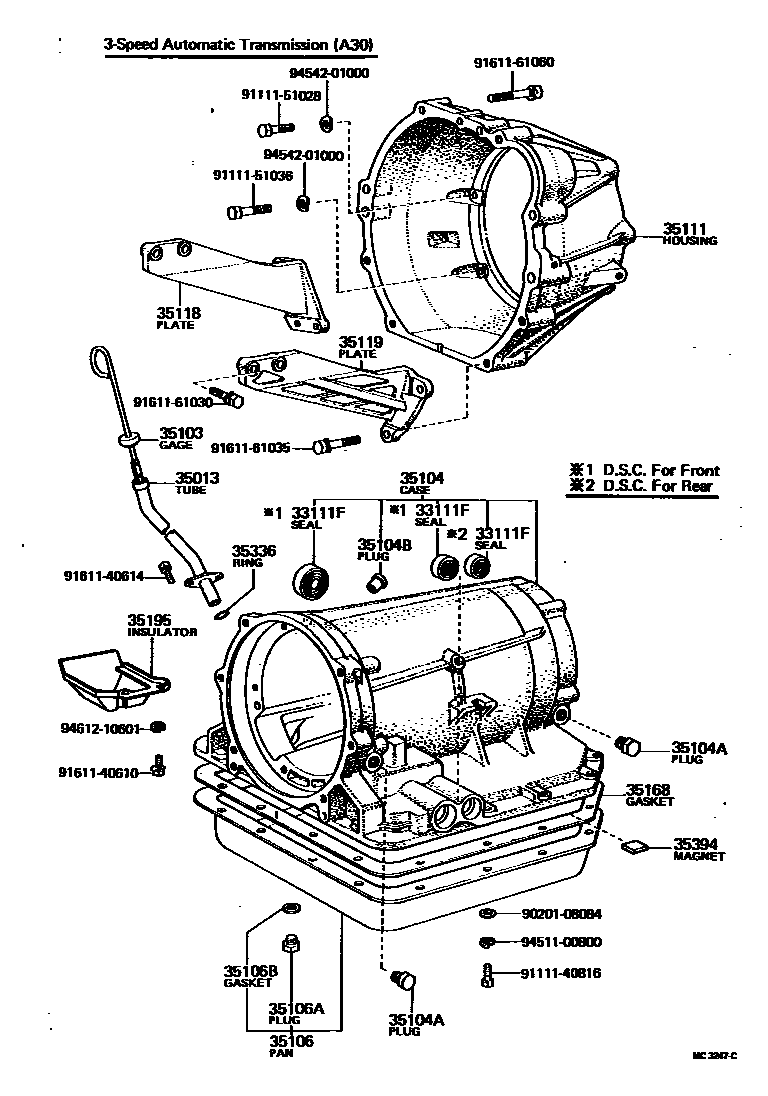

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

33111FSEAL, OIL(FOR TRANSMISSION CASE)

main90311-08044iMS83,85,95..ATM197410-197611

FOR REAR

sub90311-08002

main90311-10082iMS83,85,95..ATM197410-197611

FOR FRONT

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-22090iMS83,85,95..3FC197611-197802

sub35013-22091

main35013-22091iMS83,85..RHD..EUR197802-197908

main35013-30031iMS83,85,95..ATM197410-197611

main35013-30060iMS85..RHD..3HC197611-197711

main35013-30061iMS85..RHD..ATM;MS83,95..RHD..3FC..GEN197711-197908

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-22040iMS83,85..RHD..EUR197611-197908

main35103-30040iMS83,85,95..ATM197410-197611

main35103-30070iMS85..RHD..3HC197711-197908

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22022iMS83,85,95..ATM197611-197908

sub35104-22023

main35104-30035iMS83,85,95..ATM197410-197611

35104APLUG, AUTOMATIC TRANSMISSION CASE

main44681-36020iMS83,85,95..ATM197410-197611

main90341-08079iMS83,85,95..ATM197611-197908

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03001iMS83,85,95..ATM197410-197611

main90930-03061iMS83,85,95..ATM197611-197908

sub90930-03069

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-14020iMS85..RHD..ATM;MS83,95..RHD..3FC..GEN197611-197908

sub35106-14021

main35106-22020iMS83,85,95..LHD..ATM197611-197908

sub35106-22021

main35106-30020iMS83,85,95..ATM197410-197611

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10078iMS83,85,95..ATM197611-197908

sub90341-10003

sub35178-30010

main90341-18049iMS83,85,95..ATM197410-197611

35106BGASKET, DRAIN PLUG (ATM)

main12157-10010iMS83,85,95..ATM197410-197611

main90202-10110iMS83,85,95..ATM197611-197908

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22040iMS83,85,95..ATM197611-197908

main35111-30070iMS83,85,95..ATM197410-197611

35118PLATE, STIFENER, RH (ATM)

main33118-30031iMS83,85,95..ATM197410-197908

35119PLATE, STIFENER, LH (ATM)

main33119-22030iMS83,85,95..ATM197611-197908

main33119-30031iMS83,85,95..ATM197410-197611

sub33119-22030

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22010iMS83,85,95..ATM197611-197908

sub35168-22011

main35168-30010iMS83,85,95..ATM197410-197611

35195INSULATOR, NEUTRAL SAFETY SWITCH HEAT

main35195-30010iMS83,85,95..ATM197410-197611

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main35336-31011iMS83,85,95..ATM197410-197611

main90301-09173iMS83,85,95..ATM197611-197908

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iMS83,85,95..ATM197410-197908

9020108084

main90201-08084

9111140816

main91111-40816

9111151028

main91111-51028

9111151036

main91111-51036

9161140610

main91611-40610

9161140614

main91611-40614

9161161030

main91611-61030

9161161035

main91611-61035

9161161060

main91611-61060

9451100800

main94511-00800

9454201000

main94542-01000

9461210601

main94612-10601

28 parts on this diagram · 2 diagrams in section
