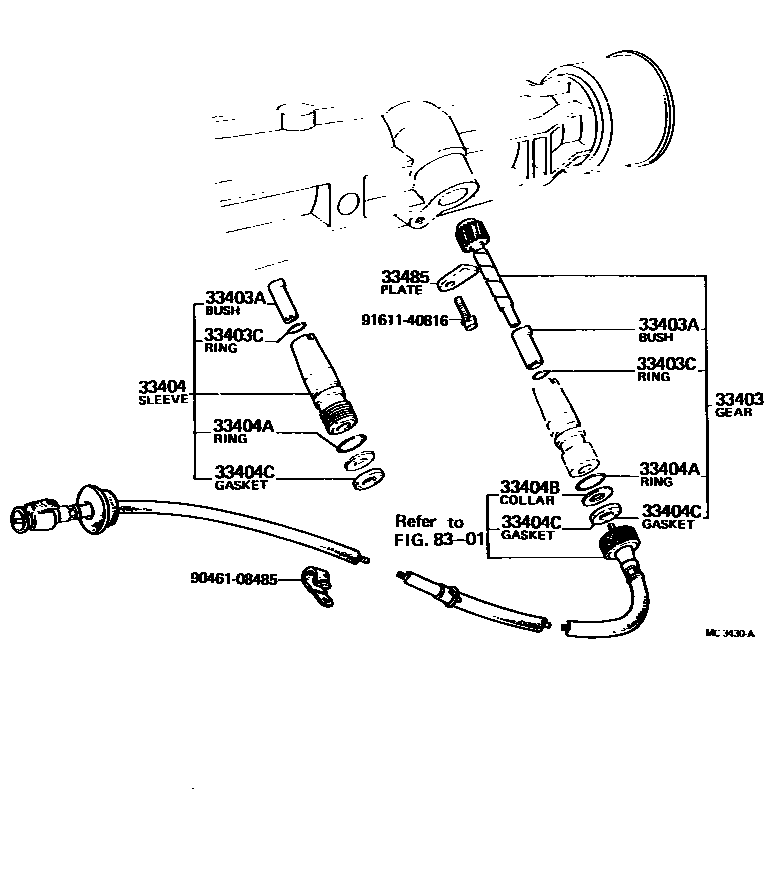

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0002 1

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29065iMS8#..3H197410-197908

N=20

main33403-39036iRS80..3H197611-197908

N=17,N=17,DIFFERENTIAL R=4.300

main33403-69026iMS8#,95..4F197410-197908

N=19

main33403-69065iMS83..RHD..4F197802-197908

N=18,MARK 18:6,N=18,FOR 185SR-14,W/T,5.5J

main33403-69065iMS8#..4F..(ARL,EUR)197611-197810

N=18,MARK 18:6,N=18

main33403-69075iMS8#..4F..EUR197810-197908

N=16,MARK 16:6,N=17

main33482-39015iRS80..3H197410-197611

N=21

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09078iMS8#,95,RS80..MTM197410-197808

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09010iMS8#,95,RS80..MTM197410-197808

sub90301-09017

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-39016iMS8#,95,RS80..MTM197410-197808

main33404-39025iMS8#,95,RS80..MTM197808-197908

sub33404-30040

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iMS8#,95,RS80..MTM197410-197908

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iMS8#,95,RS80..MTM197410-197908

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iMS8#,95,RS80..MTM197410-197908

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30010iMS8#,95,RS80..MTM197410-197808

main33485-30020iMS8#,95,RS80..MTM197808-197908

8301

9046108485

main90461-08485

9161140816

main91611-40816

11 parts on this diagram · 2 diagrams in section
