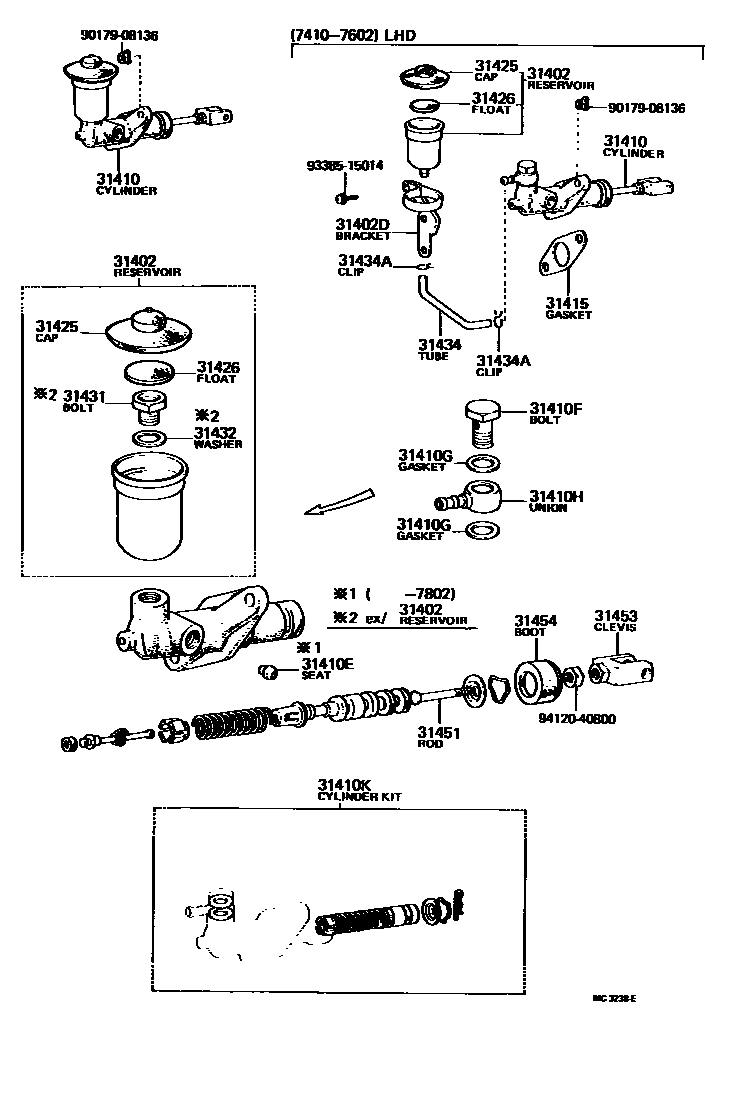

CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main47202-11010iMS8#,95,RS80..LHD..MTM197410-197602

main47202-12050iMS8#,95,RS80..RHD..MTM197410-197908

31402DBRACKET, MASTER CYLINDER RESERVOIR(FOR CLUTCH)

main47233-30010iMS8#,95,RS80..LHD..MTM197410-197602

31410CYLINDER ASSY, CLUTCH MASTER

main31410-30050iRS80..LHD197410-197908

sub31410-30051

main31410-30060iRS80..RHD197410-197908

sub31410-30061

main31420-30040iMS8#,95,RS80..LHD..MTM197410-197602

sub31410-30050

31410ESEAT, UNION(FOR CLUTCH MASTER CYLINDER)

main90410-03015iRS80..RHD197410-197802

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16078iMS8#,95,RS80..LHD..MTM197410-197602

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16044iMS8#,95,RS80..LHD..MTM197410-197602

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90405-10125iMS8#,95,RS80..LHD..MTM197410-197602

31410KCYLINDER KIT, CLUTCH MASTER

main04311-20050iMS8#,95,RS80..MTM197410-197908

sub04311-14011

31415GASKET, CLUTCH MASTER CYLINDER

main31415-30030iMS8#,95,RS80..LHD..MTM197410-197908

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-12011iMS8#,95,RS80..LHD..MTM197410-197602

sub31440-35010

main47230-12030iMS8#,95,RS80..RHD..MTM197410-197907

sub47230-20040

main47230-20040iMS8#,95,RS80..MTM197907-197908

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iMS8#,95,RS80..MTM197410-197908

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iMS8#,95,RS80..RHD..MTM197410-197908

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iMS8#,95,RS80..RHD..MTM197410-197908

31434TUBE, CLUTCH RESERVOIR

main31434-30040iMS8#,95,RS80..LHD..MTM197410-197602

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90467-14106iMS8#,95,RS80..LHD..MTM197410-197602

sub90467-14044

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12030iMS8#,95,RS80..MTM197410-197908

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-30050iMS8#,95,RS80..MTM197410-197908

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iMS8#,95,RS80..MTM197410-197908

9017908136

main90179-08136

9338515014

main93385-15014

9412040800

main94120-40800

21 parts on this diagram · 1 diagram in section
