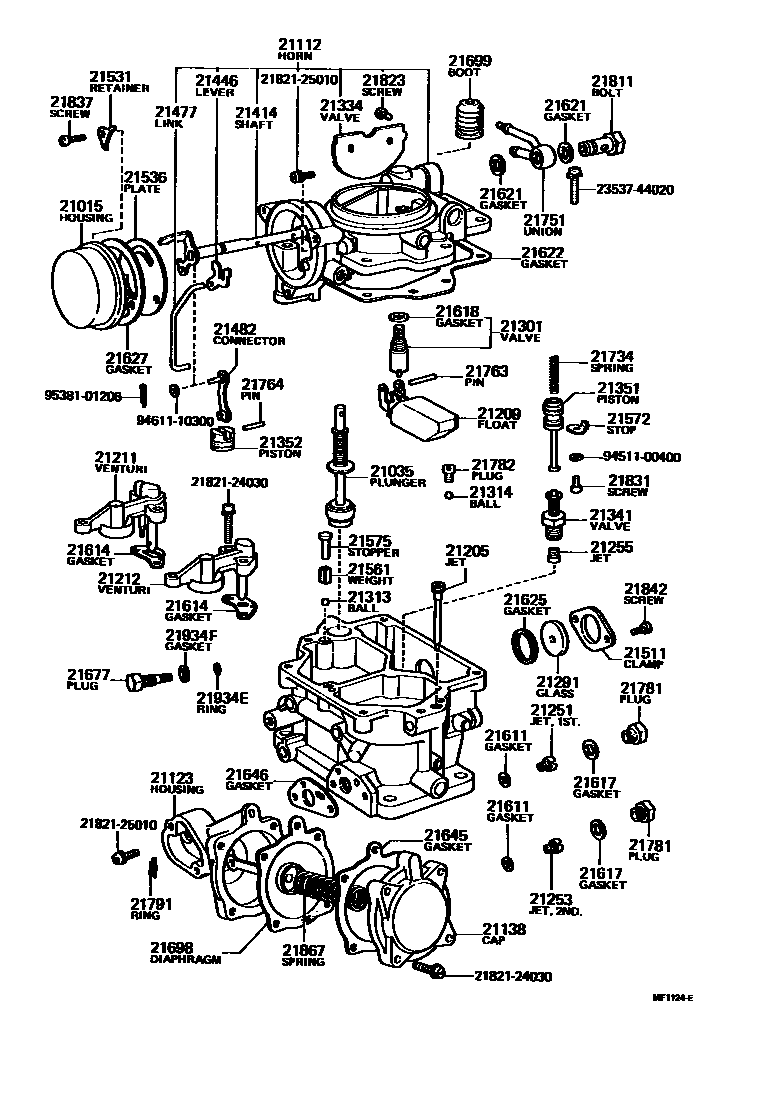

CARBURETOR
21015HOUSING SUB-ASSY, COIL
FOR HONG KONG
21035PLUNGER SUB-ASSY, PUMP
21112HORN, AIR
FOR HONG KONG
21123HOUSING, DIAPHRAGM
21138CAP, DIAPHRAGM
21205JET SUB-ASSY, SLOW
ID=0.55
ID=0.60
ID=0.70
21209FLOAT SUB-ASSY
21211VENTURI, 1ST SMALL
21212VENTURI, 2ND SMALL
21251JET, 1ST MAIN
ID=1.05
ID=1.07
ID=1.14
ID=1.15
21253JET, 2ND MAIN
ID=1.65
ID=1.74
ID=1.80
ID=1.85
21255JET, POWER
ID=0.60
ID=0.68
ID=0.96
21291GLASS, LEVEL GAGE
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21341VALVE, POWER
21414SHAFT, CHOKE
21446LEVER, 1ST IDLE CAM
21477LINK, CHOKE LEVER
21482CONNECTOR, PISTON
21511CLAMP, LEVEL GAGE
21531RETAINER, COIL HOUSING
UPP
LWR
21536PLATE, COIL HOUSING
21561WEIGHT, PUMP DISCHARGE
21572STOP, POWER PISTON
21575STOPPER, B(FOR DISCHARGE WEIGHT)
21611GASKET, MAIN JET
21614GASKET, VENTURI
FOR 2ND
FOR 1ST
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21622GASKET, AIR HORN
21625GASKET, LEVEL GAGE
21627GASKET, COIL HOUSING
21677PLUG
21698DIAPHRAGM
21734SPRING, POWER PISTON
21764PIN, PISTON(FOR VACUUM PISTON)
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
sub21781-16510
21782PLUG, NUT(FOR ACCELERATING SYSTEM)
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
sub21791-13011
21811BOLT, UNION NIPPLE
21823SCREW, CHOKE, VALVE SET
21831SCREW, POWER PISTON STOP
21837SCREW, COIL HOUSING SET
4-0.7PX10-6.3
4-0.7PX6.5-6.5
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21867SPRING, DIAPHRAGM
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
2182124030SCREW, 2ND THROTTLE VALVE SET
main21821-24030
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2353744020SCREW(FOR 2ND REGULATOR COVER SET)
main23537-44020
9451100400
main94511-00400
9461110300
main94611-10300
9538101206
main95381-01206
65 parts on this diagram · 17 diagrams in section
