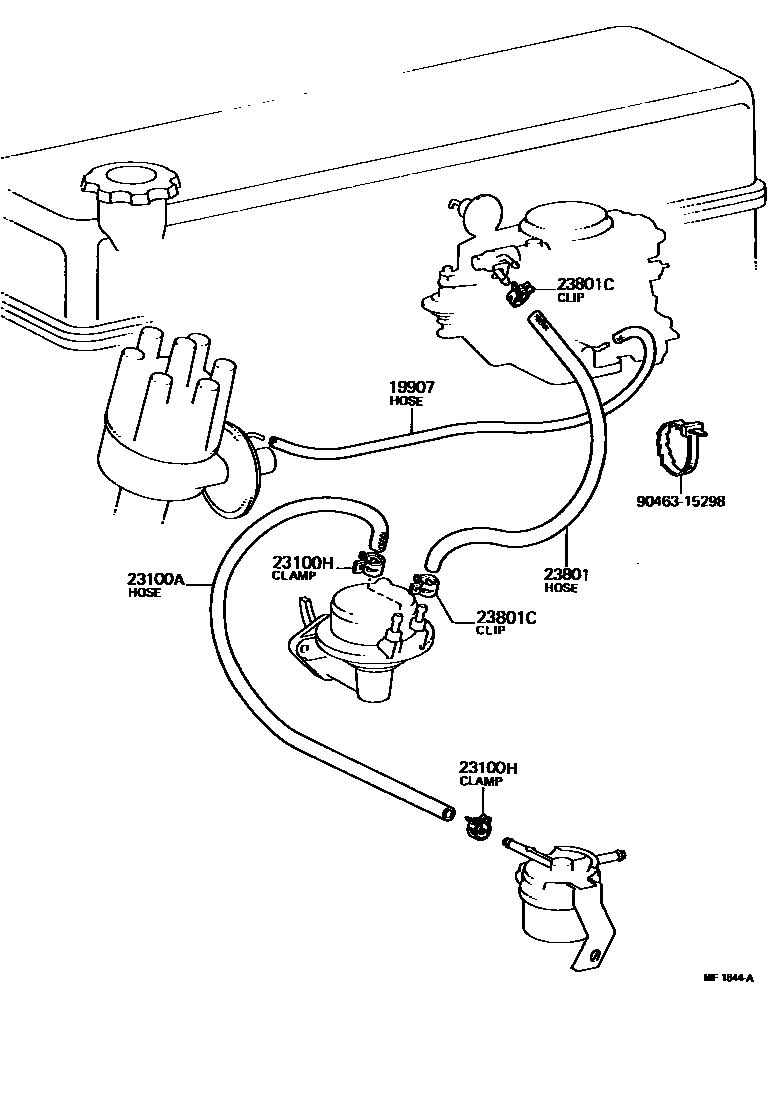

FUEL PIPE & CLAMP

0001 1 0002 1

19907HOSE, VACUUM, NO.1

main90445-07106i5R..RS80197410-197711

sub95411-19995

main90445-07301i4M..MS8#,95..GEN197410-197611

main95411-19960i4M..MS8#,95..EUR,GEN197611-197908

H,L=330

sub90999-92003

main95411-19995i5R..RS80197711-197908

H,L=750

sub90999-92004

23100AHOSE, FUEL

main95331-08036i5R..RS80197410-197704

L=360

sub95332-08036

main95332-08034i4M..MS8#,95197706-197904

L=340

sub95332-08040

main95332-08036i4M..MS8#,95197704-197904

L=360

sub95332-08040

main95332-08040i4M..MS8#,95197904-197908

H,L=340

sub95333-08040

main95332-08040i4M..MS8#,95197904-197908

H,L=360

sub95333-08040

23100HCLIP(FOR FUEL HOSE)

main96132-30800i5R..RS80197410-197908

sub96132-51300

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-44011i5R..RS80197410-197908

main90445-14011i4M..MS8#,95..GEN197410-197611

main95331-08034i4M..MS83,85..ARL197604-197706

*H,L=340

sub95332-08034

main95332-08034i4M..MS8#,95197706-197904

L=400(*H,L=340)

sub95332-08040

main95332-08040i4M..MS8#,95197904-197908

L=400(*H,L=340)

sub95333-08040

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30800i4M..MS8#,95197410-197908

sub96132-51300

9046315298

main90463-15298

6 parts on this diagram · 2 diagrams in section
