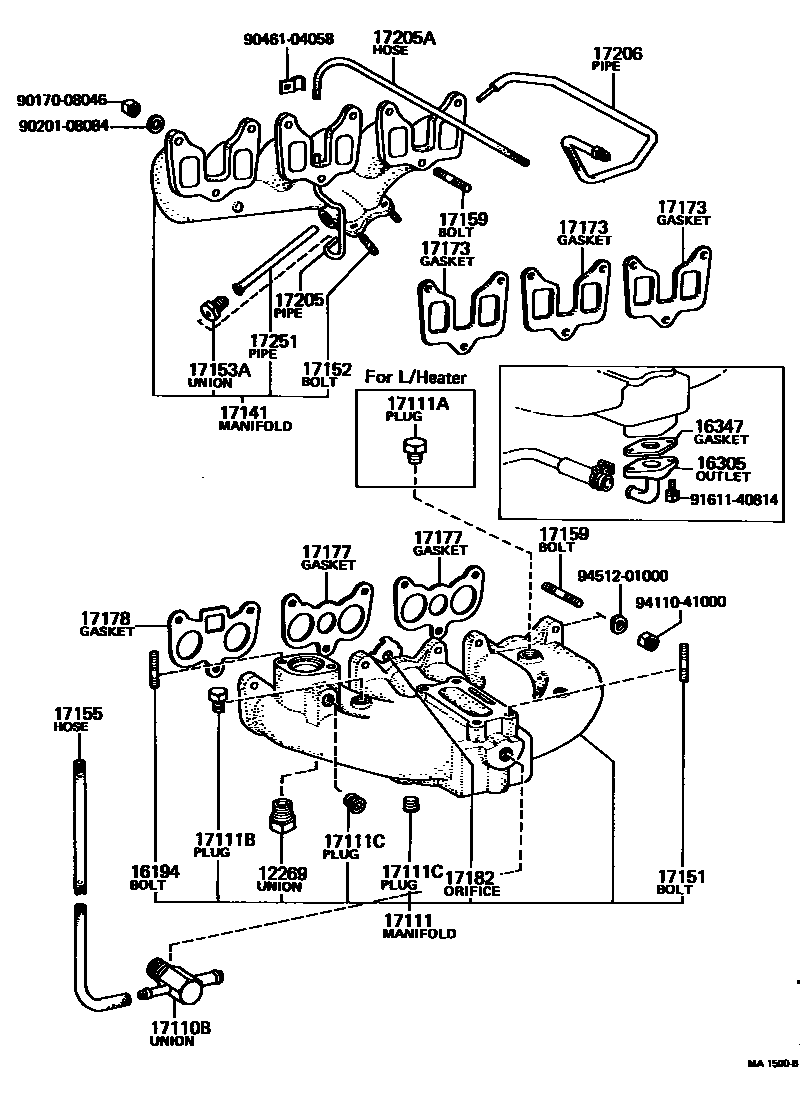

MANIFOLD
12269UNION
16194BOLT, STUD(FOR WATER OUTLET SETTING)
L=34,S=16&11
16305OUTLET SUB-ASSY, WATER BY-PASS
17110BUNION(FOR VENTILATION HOSE TO MANIFOLD)
17111CPLUG, NO.3
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
L=42,S=11&17
L=38,S=10&16
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=36,S=15&15
L=41,S=14&20
L=37,S=20&14
L=37,S=20&13
17153SLEEVE, BALL(FOR AUTOMATIC CHOKE STOVE PIPE)
17153AUNION(FOR AUTOMATIC CHOKE STOVE PIPE)
17155HOSE(FOR MANIFOLD)
L/HOT AIR INTAKE
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE,L=44,S=12&18
EXHAUST,LOWER,L=43,S=15&15
EXHAUST,L=45,S=14.5&14.5
EXHAUST,L=49,S=15&21
EXHAUST,UPPER,L=49,S=15&21
EXHAUST,LOWER,L=53,S=15&29
EXHAUST,LOWER,L=57,S=15&31
EXHAUST,UPPEER,L=57,S=15&31
INTAKE,L=48,S=20&12.5
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17182ORIFICE, WATER
17205PIPE, AUTOMATIC CHOKE STOVE INLET
17205AHOSE(FOR AUTOMATIC CHOKE STOVE PIPE)
17206PIPE, AUTOMATIC CHOKE STOVE OUTLET
17251PIPE,AUTOMATIC CHOKE STOVE
9017008046
main90170-08046
9020108084
main90201-08084
9046104058
main90461-04058
9161140814
main91611-40814
9411041000
main94110-41000
9451201000
main94512-01000
31 parts on this diagram · 4 diagrams in section
