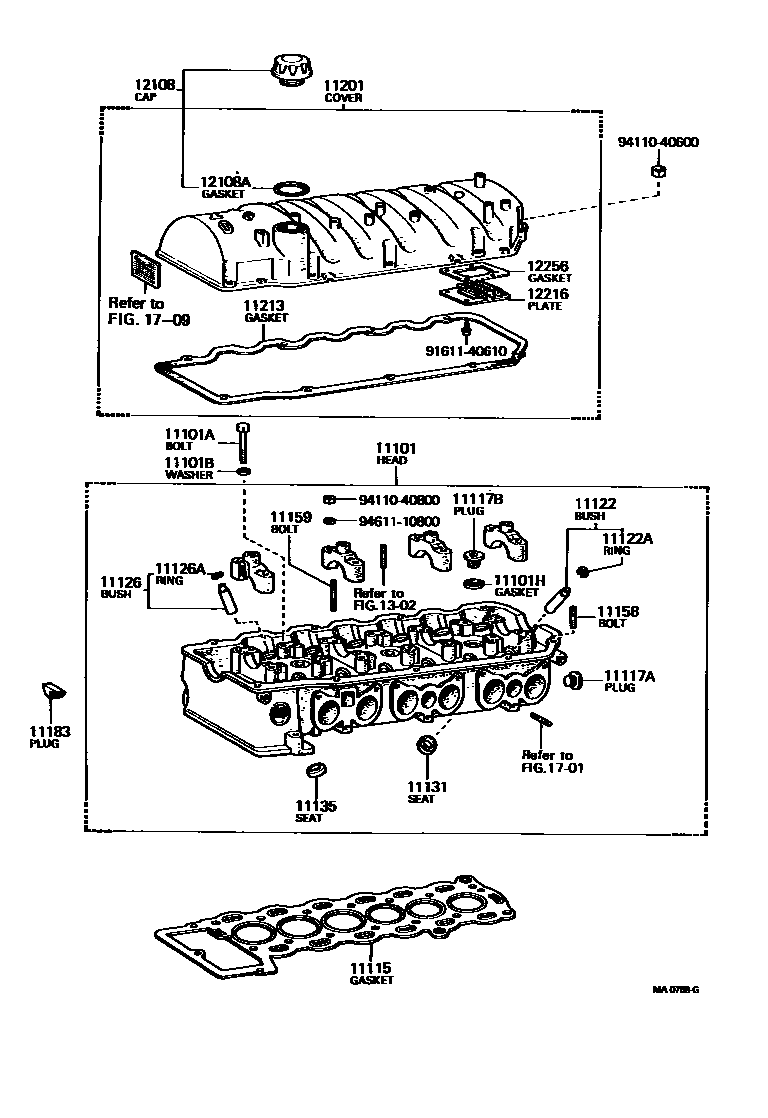

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-49166
sub11101-49167
sub11101-44052
sub11101-49208
sub11101-49207
sub11101-49208
sub11101-49226
sub11101-49227
FOR HONG KONG
11101ABOLT(FOR CYLINDER HEAD SET)
12-1.25PX124-23
12-1.25PX107-24
12-1.25PX166.5-21
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11122BUSH, INTAKE VALVE GUIDE
STD,STD
STD
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD
STD,STD
O/S 0.03
O/S 0.03,0/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD,STD
O/S 0.03
O/S 0.03,0/S 0.03
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
L=28,S=10&10
L=51,L=51,S=14&8.5
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
L=45,S=14.5&14.5
11201COVER SUB-ASSY, CYLINDER HEAD
sub11201-49056
sub11201-49059
sub11201-49106
sub11201-49109
sub11201-49155
sub11201-49146
sub11211-45010
sub11211-45021
12108AGASKET(FOR OIL FILLER CAP)
12216PLATE, VENTILATION BAFFLE
1302
1701
1709
9161140610
main91611-40610
9411040600
main94110-40600
9411040800
main94110-40800
9461110800
main94611-10800
29 parts on this diagram · 5 diagrams in section
