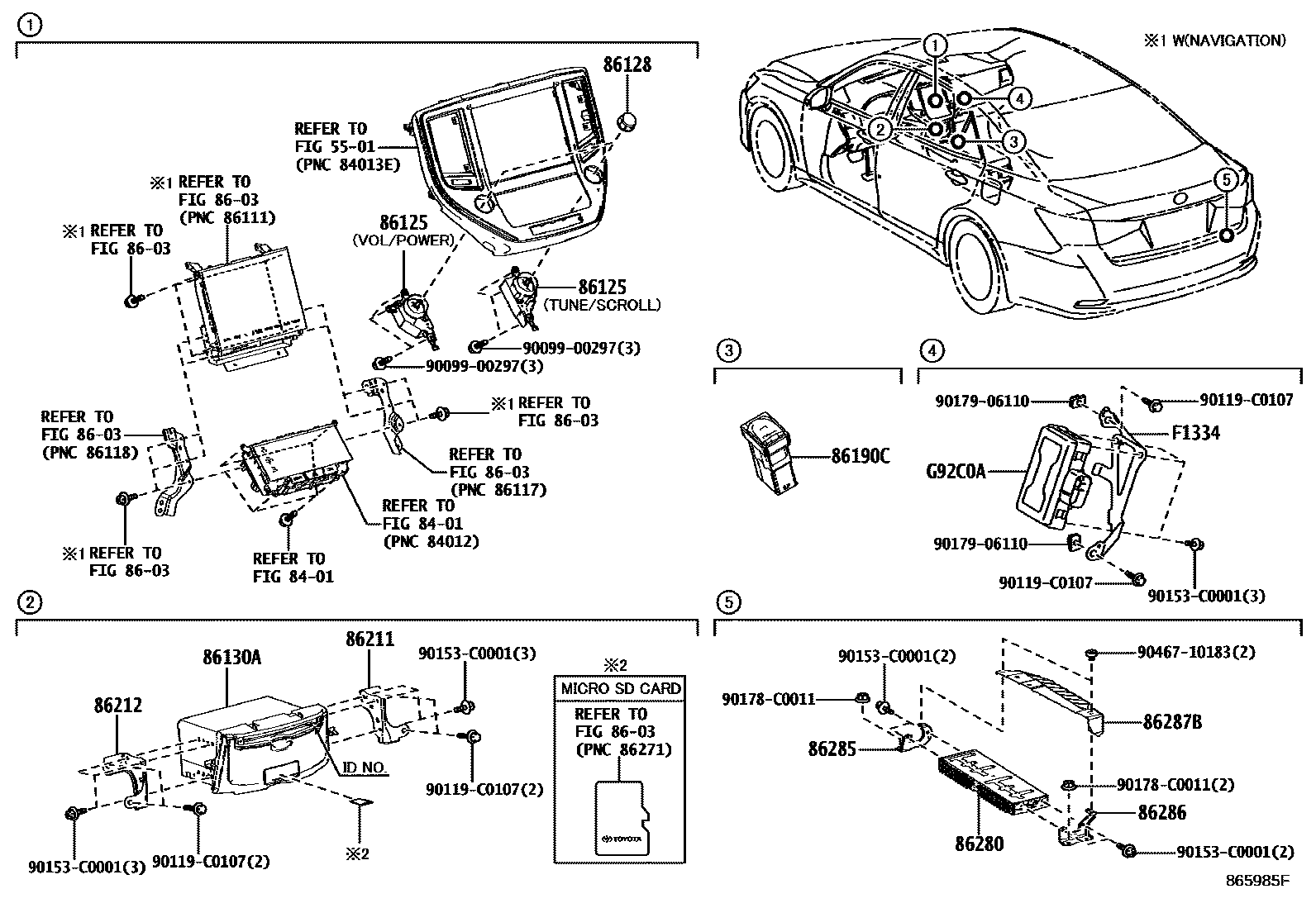

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER & AMPLIFIER 0002 1CONDENSER

5501

8401

8603

86125KNOB, RADIO RECEIVER SWITCH

main86125-0N010iARS212201501-202004

VOL/POWER

main86125-0N020iARS212,GRS218..Q,U201501-202004

TUNE/SCROLL

main86125-0N030iARS212,GRS218..B,S201501-202004

TUNE/SCROLL

86128KNOB, RADIO RECEIVER

main86127-0N010iARS212..B201501-201910

86130ARECEIVER ASSY, MULTI-MEDIA MODULE

main86804-0N020-C0iARS212,GRS218..Q,U201501-201712

DENSO,ID=E8057,BLACK,TRIM2#

main86804-0N020-E0iARS212,GRS218..Q,U201501-201712

DENSO,ID=E8057,BROWN,TRIM0#

main86804-0N030-C0iARS212..Q,U201712

DENSO,ID=E8059,BLACK BIRDSEYE,TRIM2#

main86804-0N030-E0iARS212..Q,U201712

DENSO,ID=E8059,BROWN BIRDSEYE,TRIM0#

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0N010iARS212,GRS218201501-201910

86211BRACKET, RADIO, NO.1

main86211-0N020iARS212,GRS218..Q,U201501-201712

86212BRACKET, RADIO, NO.2

main86212-0N020iARS212,GRS218..Q,U201501-201712

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0N020iARS212,GRS218..U201501-201712

86285BRACKET, AMPLIFIER, NO.1

main86285-0N030iARS212,GRS218..U201501-201712

86286BRACKET, AMPLIFIER, NO.2

main86286-0N020iARS212,GRS218..U201501-201712

86287BCOVER, AMPLIFIER

main86287-0N010iARS212,GRS218..U201501-201712

F1334BRACKET, CONVERTER CONTROL, NO.1

mainF13340N010iARS212..U201508-201712

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

mainG92C030020iARS212..U201508-201712

9009900297

main90099-00297

90119C0107

main90119-C0107

90153C0001

main90153-C0001

90178C0011

main90178-C0011

9017906110

main90179-06110

9046710183

main90467-10183

21 parts on this diagram · 2 diagrams in section
