WIRELESS DOOR LOCK

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84945-0N030iARS212,GRS218201501-201712

89740COMPUTER ASSY, DOOR CONTROL W/RECEIVER

main89740-0N040iARS212,GRS218..B201501-201712

WITHOUT(TIRE PRESSURE MONITORING SYSTEM)

main89740-0N040iARS212..B201712

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-0N010iARS212,GRS218..Q,S,U201501-201911

main897B0-0N011iARS212201911

89990ACOMPUTER ASSY, SMART KEY

main89990-0N020iARS212,GRS218..Q,S,U201501-201712

main89990-0N030iGRS218..S201501-201712

WITHOUT(TIRE PRESSURE MONITORING SYSTEM)

main89990-0N030iARS212..B,S201712

89997ANTENNA, ELECTRICAL KEY

main89997-0E060iARS212,GRS218201501-201712

sub89997-0E061

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-0N010iARS212,GRS218201501-201712

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-0P010iARS212,GRS218201501-201712

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-0N030iARS212,GRS218201501-201712

90119C0072

main90119-C0072

90119C0208

main90119-C0208

90159C0027

main90159-C0027

90178C0011

main90178-C0011

9018906197

main90189-06197¥70

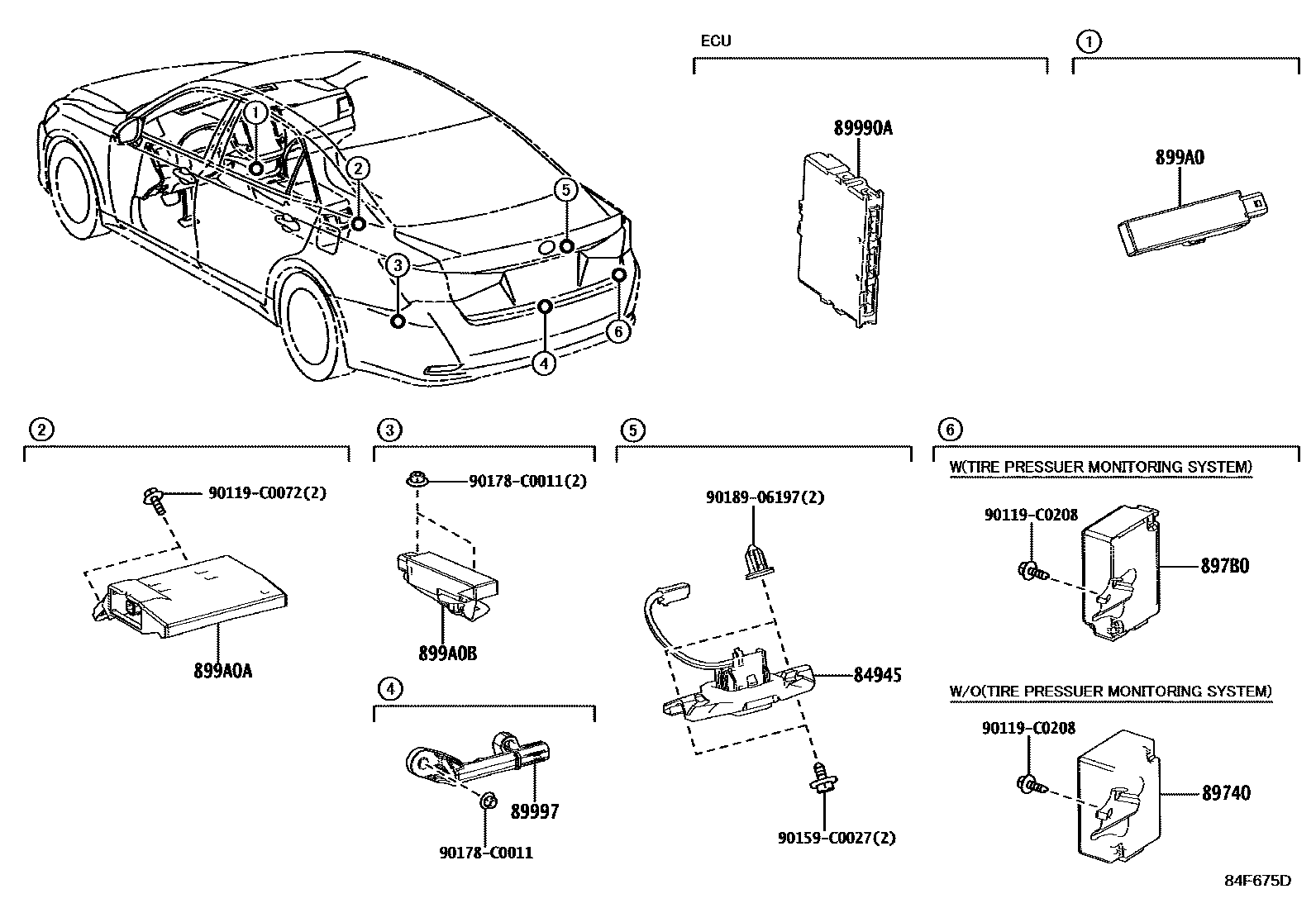

13 parts on this diagram · 1 diagram in section
