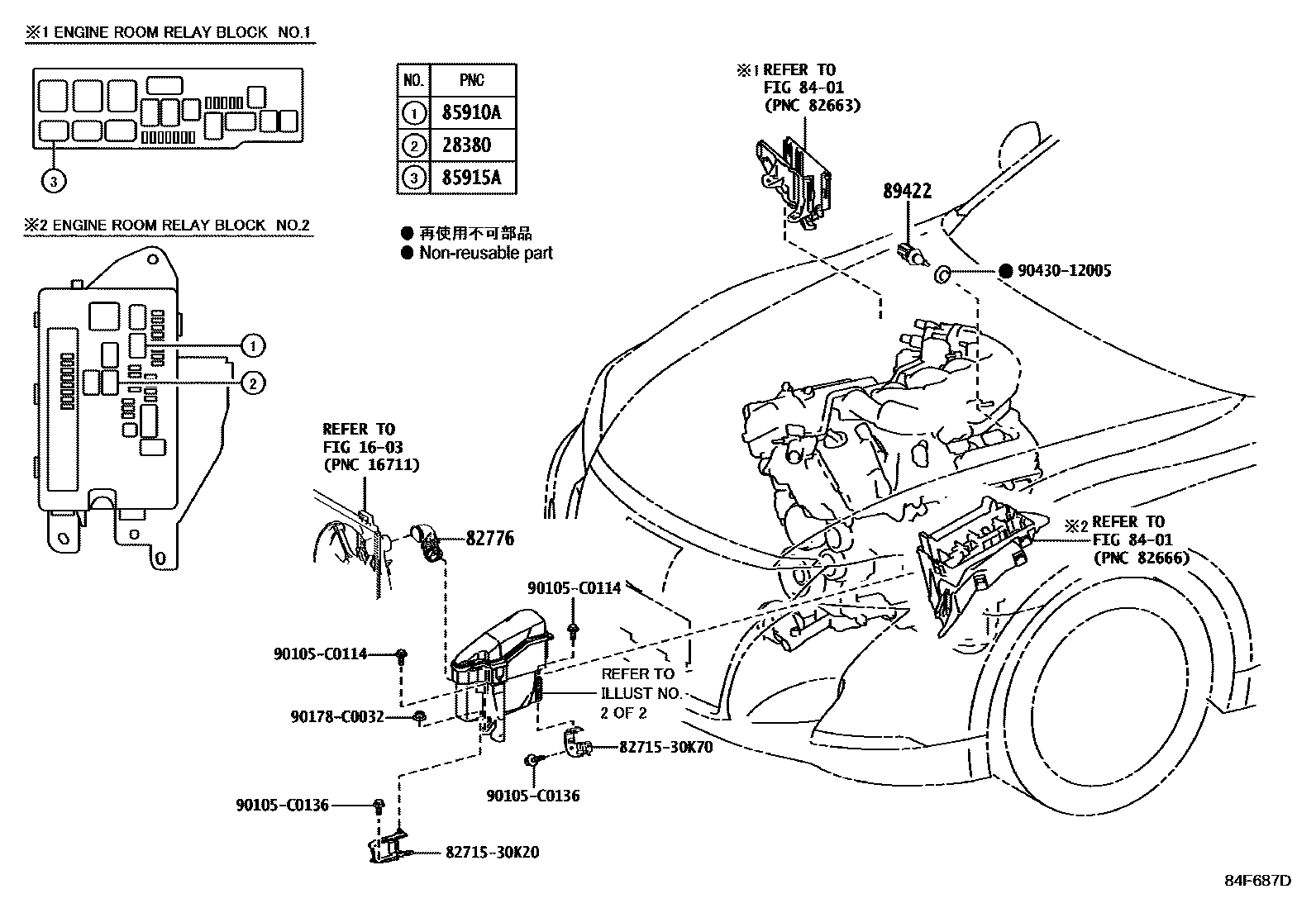

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1603

28380RELAY ASSY, FUEL PUMP

main90987-T4001i5GRFE..GRS218201501-201712

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-0N020iARS212..B201508-201910

main82776-30130iGRS218¥930201501-201712

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-T2005iGRS218201501-201712

85915ARELAY, MAIN

main90987-T2005iARS212,GRS218201501-201910

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010iGRS218¥2,390201501-201712

main89422-33030iARS212¥2,410201508-201910

8271530K20BRACKET,WIRING HARNESS CLAMP

main82715-30K20¥850

8271530K70BRACKET,WIRING HARNESS CLAMP

main82715-30K70¥650

90105C0114

main90105-C0114

90105C0136

main90105-C0136

90178C0032

main90178-C0032

9043012005

main90430-12005¥110

13 parts on this diagram · 4 diagrams in section
