SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1SEAT 0009 1DOOR,ROOF,FLOOR & LUGGAGE

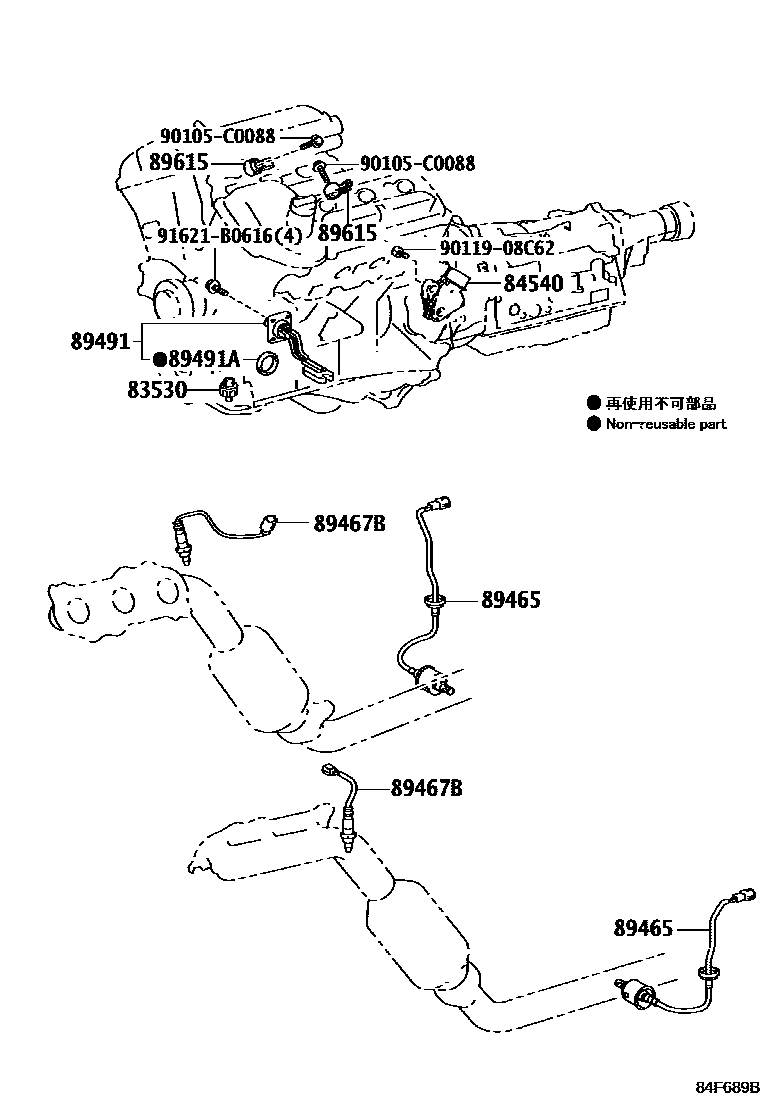

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGRS218201501-201712

DENSO

main83530-60020iGRS218201501-201712

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-04010iGRS218201609-201712

(L)

main84540-71010iARS212..B201501-201910

main84540-71010iGRS218201609-201712

(J)

89465SENSOR, OXYGEN

main89465-0N060iARS212..B201508-201910

main89465-0P020iGRS218201501-201712

89467BSENSOR, AIR FUEL RATIO

main89467-0N010iARS212201508-201910

main89467-0P010iGRS218201501-201712

89491SENSOR, ENGINE OIL LEVEL

main89491-30061iGRS218201501-201712

main89491-30080iARS212..B201508-201910

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iARS212,GRS218201501-201910

89615SENSOR, KNOCK CONTROL

main89615-20090iGRS218201501-201910

90105C0088

main90105-C0088

9011908C62

main90119-08C62

91621B0616

main91621-B0616

10 parts on this diagram · 9 diagrams in section
