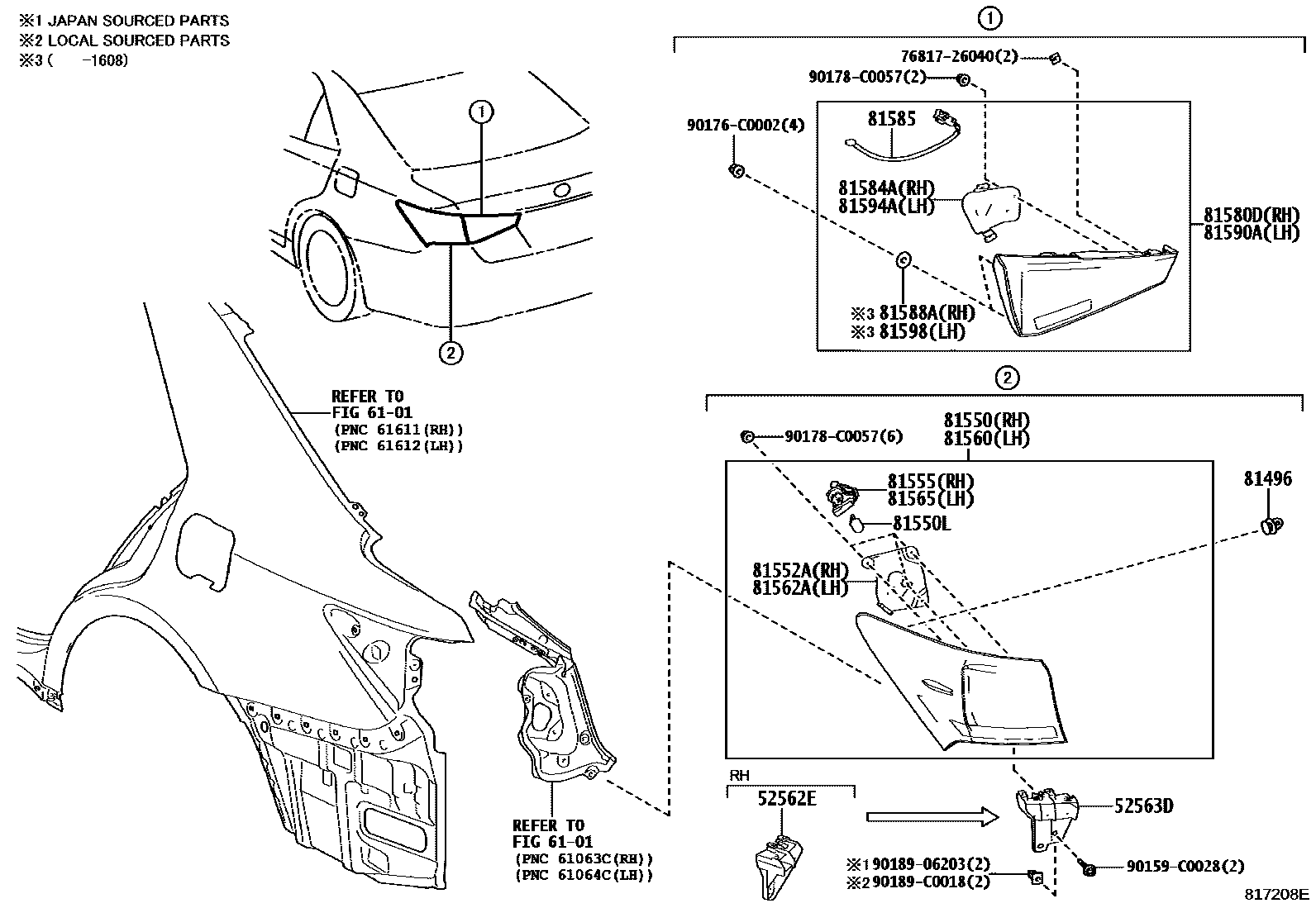

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-0N040iARS212,GRS218201501-201910

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-0N040iARS212,GRS218201501-201910

6101

81496GUIDE, REAR COMBINATION LAMP

main90467-C0019iARS212,GRS218201501-201910

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0N060iARS212,GRS218201501-201608

sub81550-0N061

main81550-0N080iARS212,GRS218201608-201612

sub81550-0N081

main81550-0N081iARS212,GRS218201701-201910

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13043iARS212,GRS218201501-201910

12V 21W

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-0N060iARS212,GRS218201501-201910

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0N060iARS212,GRS218201501-201701

main81555-0N061iARS212,GRS218201701-201910

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0N060iARS212,GRS218201501-201608

sub81560-0N061

main81560-0N080iARS212,GRS218201608-201612

sub81560-0N081

main81560-0N081iARS212..B201701-201910

81562AGASKET, REAR COMBINATION LAMP, LH

main81552-0N060iARS212,GRS218201501-201910

main81562-0N060iARS212,GRS218201608-201701

sub81552-0N060

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-0N060iARS212,GRS218201501-201701

main81565-0N061iARS212..B201701-201910

81580DLAMP ASSY, REAR, RH

main81580-0N030iARS212,GRS218201501-201608

sub81580-0N031

main81580-0N050iARS212,GRS218201608-201612

sub81580-0N051

main81580-0N051iARS212,GRS218201701-201910

81584AGASKET, REAR LAMP RH

main81582-0N030iARS212,GRS218201608-201701

sub81584-0N030

main81584-0N030iARS212,GRS218201501-201910

81585SOCKET & WIRE, REAR LAMP

main81585-0N030iARS212,GRS218201608-201701

RH

main81585-0N030iARS212,GRS218201501-201608

main81585-0N031iARS212,GRS218201701-201910

RH

main81595-0N030iARS212,GRS218201608-201701

LH

main81595-0N031iARS212,GRS218201701-201910

LH

81588APROTECTOR, REAR LAMP, RH

main81588-0N030iARS212,GRS218201501-201608

81590ALAMP ASSY, REAR, LH

main81590-0N030iARS212,GRS218201501-201608

sub81590-0N031

main81590-0N050iARS212,GRS218201608-201612

sub81590-0N051

main81590-0N051iARS212,GRS218201701-201910

81594AGASKET, REAR LAMP LH

main81584-0N030iARS212,GRS218201501-201910

main81592-0N030iARS212,GRS218201608-201701

sub81584-0N030

81598PROTECTOR, REAR LAMP, LH

main81588-0N030iARS212,GRS218201501-201608

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

90159C0028

main90159-C0028

90176C0002

main90176-C0002

90178C0057

main90178-C0057

9018906203

main90189-06203

90189C0018

main90189-C0018

24 parts on this diagram · 1 diagram in section
