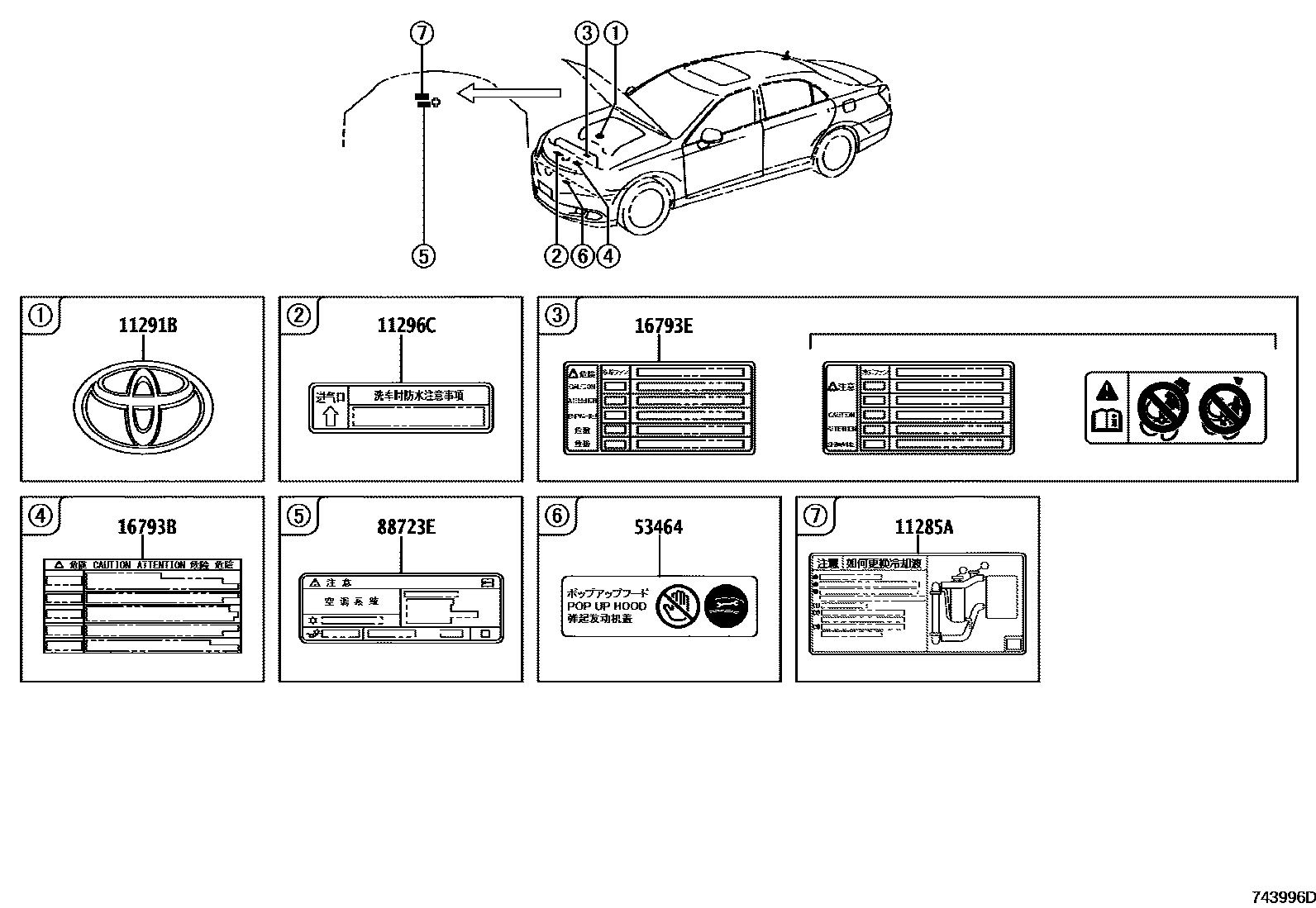

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR & INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-0V030i8ARFTS..ARS212201508-201910

11291BPLATE, ENGINE NAME

main11291-31050i5GRFE..GRS218201501-201712

11296CLABEL, ENGINE SERVICE INFORMATION

main11295-0P010i8ARFTS..ARS212..P,Q,S,U201501-201910

16793BLABEL, COOLING FAN INFORMATION

main16793-0P010i5GRFE..GRS218201501-201712

16793ELABEL, COOLING FAN CAUTION

main16793-31070i8ARFTS..ARS212201707-202004

main16793-36030i8ARFTS..ARS212201611-201706

main16793-37040i8ARFTS..ARS212201508-201610

sub16793-31070

main16793-38010i5GRFE..GRS218201501-201708

sub16793-31070

53464LABEL, POP UP HOOD CAUTION, NO.1

main53464-0N010iARS212,GRS218201501-201712

88723ELABEL, COOLER SERVICE CAUTION

main88723-02360iARS212..P,Q,S201501-201910

main88723-0N020iARS212..U201501-201712

7 parts on this diagram · 2 diagrams in section
