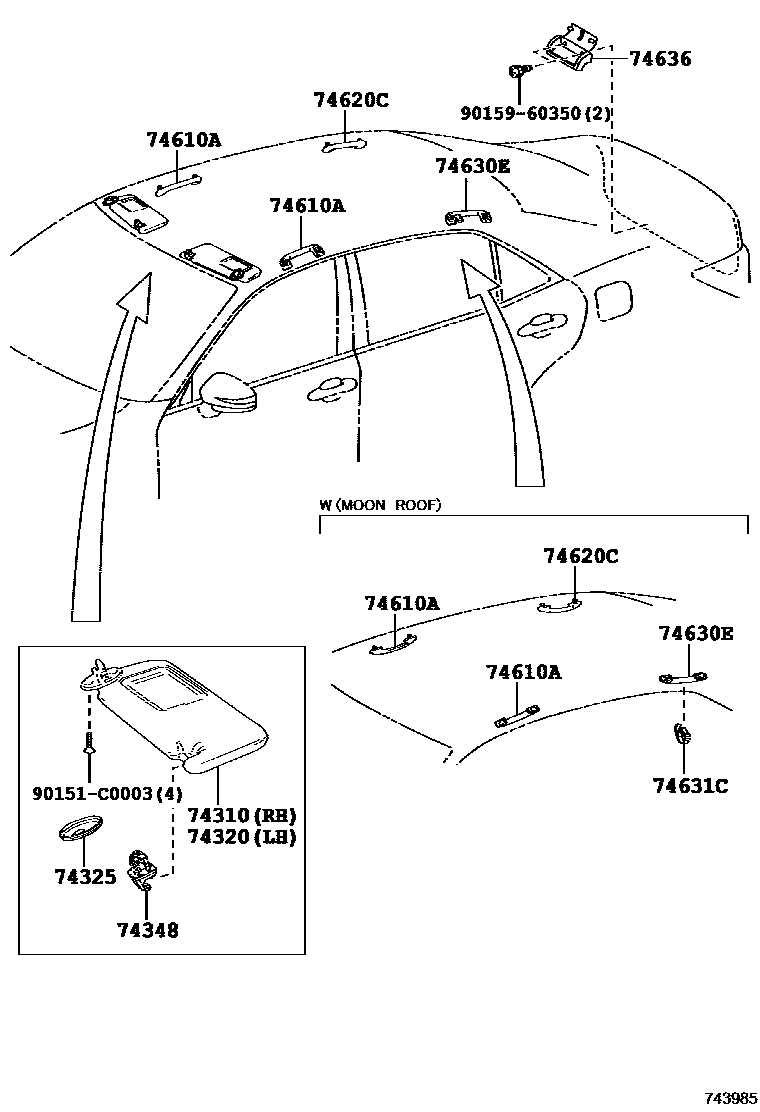

ARMREST & VISOR

74310VISOR ASSY, RH

main74310-0N021-A2iARS212,GRS218201501-201511

FLAXEN,TRIM0#

sub74310-0N022

main74310-0N021-B0iARS212,GRS218..Q,S,U201501-201511

GRAY,TRIM2#

sub74310-0N022

main74310-0N022-A2iARS212..P,Q,S,U201512-201910

FLAXEN,TRIM0#

main74310-0N022-B0iARS212..S201512-201712

GRAY,TRIM2#,3#

main74310-0N022-B0iARS212..S201512-201712

GRAY,TRIM2#

74320VISOR ASSY, LH

main74320-0N021-A2iARS212,GRS218201501-201511

FLAXEN,TRIM0#

sub74320-0N022

main74320-0N021-B0iARS212,GRS218..Q,S,U201501-201511

GRAY,TRIM2#

sub74320-0N022

main74320-0N022-A2iARS212,GRS218201512-201910

FLAXEN,TRIM0#

main74320-0N022-B0iARS212..Q,U;GRS218..Q,S,U201512-201712

GRAY,TRIM2#,3#

main74320-0N022-B0iARS212..Q,U;GRS218..Q,S,U201512-201712

GRAY,TRIM2#

74325COVER, VISOR BRACKET

main74317-0N020-A1iARS212,GRS218201501-201910

FLAXEN,TRIM0#

main74317-0N020-B0iARS212..Q,S,U201501-201712

GRAY,TRIM2#

main74317-0N020-B0iARS212..P201508-201712

GRAY,TRIM2#,3#

74348HOLDER, VISOR

main74348-0D120-A1iARS212..P,Q,S,U201501-201910

FLAXEN,TRIM0#

main74348-0D120-B0iARS212..Q,S,U201501-201712

GRAY,TRIM2#

main74348-0D120-B0iARS212..S201508-201712

GRAY,TRIM2#,3#

74610AGRIP SUB-ASSY, ASSIST

main74610-0N090-A0iARS212..B201501-201910

FLAXEN,TRIM0#

main74610-0P030-A0iARS212,GRS218..Q,S,U201501-201712

FLAXEN,TRIM0#

main74610-0P030-B1iARS212..Q,S,U201508-201712

GRAY,TRIM2#,3#

main74610-0P030-B1iARS212..Q,S,U201501-201712

GRAY,TRIM2#

74620CGRIP ASSY, ASSIST, REAR RH

main74610-0N090-A0iARS212,GRS218..B201501-201910

FLAXEN,TRIM0#

main74610-0P030-A0iARS212,GRS218..Q,S,U201501-201712

FLAXEN,TRIM0#

main74610-0P030-B1iARS212..Q,S,U201508-201712

GRAY,TRIM2#,3#

main74610-0P030-B1iARS212..P201501-201712

GRAY,TRIM2#

74630EGRIP ASSY, ASSIST, REAR LH

main74610-0N100-A0iARS212..B201501-201910

FLAXEN,TRIM0#

main74610-0P030-A0iARS212..P,Q,S,U201501-201712

FLAXEN,TRIM0#

main74610-0P030-B1iARS212..P201501-201712

GRAY,TRIM2#

main74610-0P030-B1iARS212..S201508-201712

GRAY,TRIM2#,3#

74631CHOOK, COAT

main74631-0N020-A1iARS212..P,Q,S,U201501-201712

FLAXEN,TRIM0#

main74631-0N020-B0iARS212..S201508-201712

GRAY,TRIM2#,3#

main74631-0N020-B0iARS212..Q,S,U201501-201712

GRAY,TRIM2#

74636GRIP, BACK DOOR ASSIST

main74649-51010-C0iARS212,GRS218..B201501-201702

BLACK,TRIM0#

sub74649-51010¥1,410

main74649-51010-C0iARS212,GRS218..B201501-201702

BLACK,TRIM0#,2#

sub74649-51010¥1,410

main74649-51010-C0iARS212..S201508-201702

BLACK,TRIM0#,2#,3#

sub74649-51010¥1,410

main74649-51010-C3iARS212,GRS218..B201702-201910

BLACK,TRIM0#

sub74649-51010¥1,410

main74649-51010-C3iARS212,GRS218..B201702-201712

BLACK,TRIM0#,2#,3#

sub74649-51010¥1,410

main74649-51010-C3iARS212,GRS218..B201702-201712

BLACK,TRIM0#,2#

sub74649-51010¥1,410

90151C0003

main90151-C0003

9015960350

main90159-60350¥60

11 parts on this diagram · 1 diagram in section
