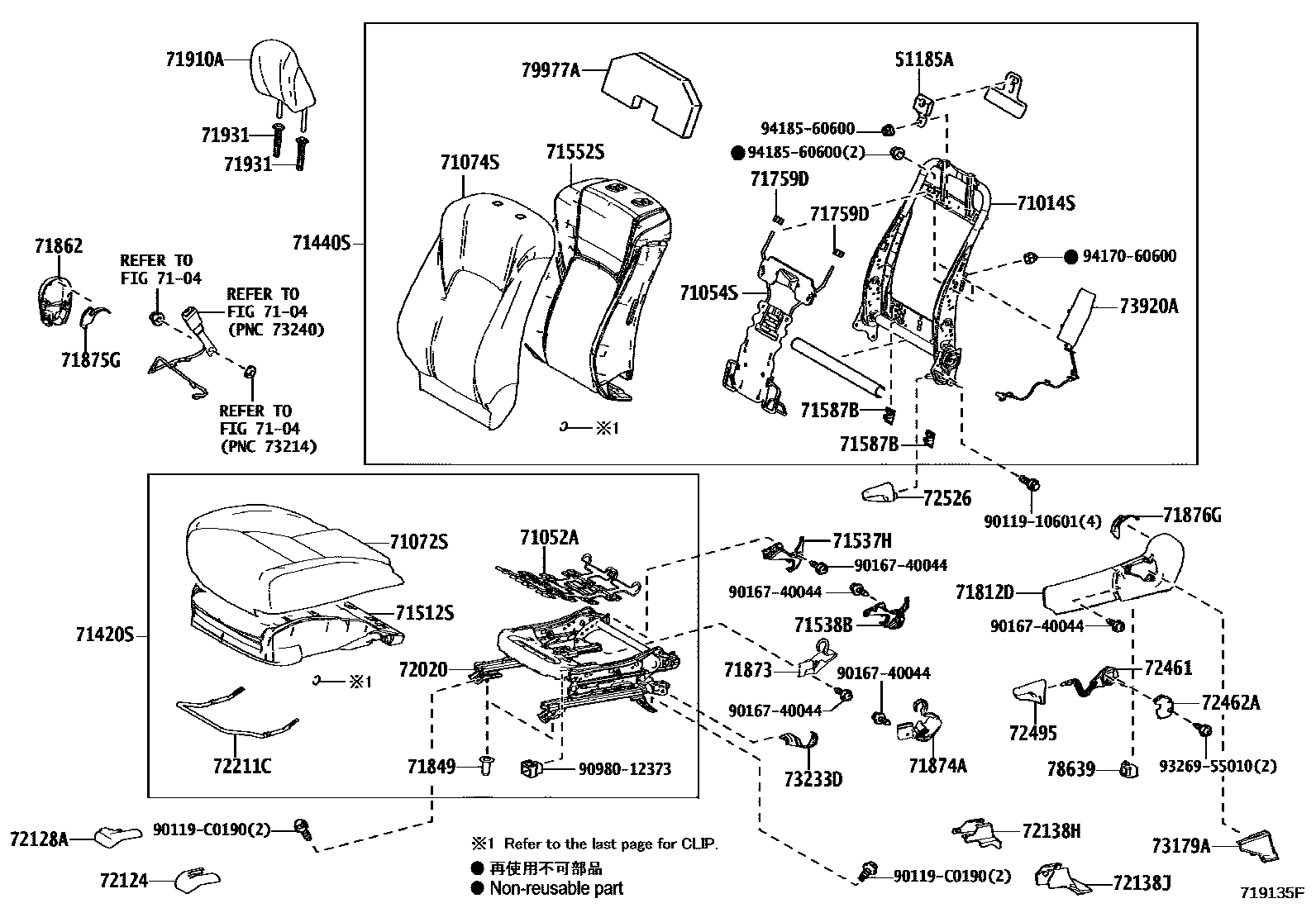

FRONT SEAT & SEAT TRACK

0001 1LH SEAT(MANUAL) 0002 1RH SEAT(MANUAL) 0003 1LH SEAT(POWER) 0004 1RH SEAT(POWER) 0005 1LH SEAT(POWER & VENTILATION) 0006 1RH SEAT(POWER & VENTILATION) 0007 1CLIP

51185AWEIGHT, FRAME, FR NO.1

main51185-0N010iARS212,GRS218201501-201712

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-0N020iARS212..B201501-201910

main71014-0N030iARS212..P,S201501-201712

main71014-0N040iARS212,GRS218..Q201501-201712

main71014-0N050iARS212,GRS218..U201501-201712

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-06050iARS212,GRS218..Q,U201501-201712

main71051-0P030iARS212..B,P,S201501-201712

71054SSPRING SUB-ASSY, FRONT SEATBACK, LH

main71053-0N040iARS212,GRS218..B201501-201910

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0N100-A0iARS212,GRS218..B201501-201702

FLAXEN,TRIM0#

sub71072-0N101

main71072-0N101-A0iARS212,GRS218..B201703-201910

FLAXEN,TRIM0#

main71072-0N110-A1iARS212,GRS218..Q,S,U201501-201702

FLAXEN,TRIM0#

sub71072-0N111

main71072-0N110-C1iARS212,GRS218..Q,S,U201501-201702

BLACK,TRIM2#

sub71072-0N111

main71072-0N111-A1iARS212,GRS218..Q,S,U201703-202001

FLAXEN,TRIM0#

sub71072-0N112

main71072-0N111-C1iARS212..Q,S,U201703-202001

BLACK,TRIM2#

sub71072-0N112

main71072-0N111-D0iARS212..P201712-202001

SMOOTH PERF.,TRIM3#

sub71072-0N112

main71072-0N112-A1iARS212..Q,S,U202001

FLAXEN,TRIM0#

main71072-0N112-C1iARS212..Q,S,U202001

BLACK,TRIM2#

main71072-0N112-D0iARS212..P202001

SMOOTH PERF.,TRIM3#

main71072-0N130-D0iARS212..S201610-201702

VALUE PACKAGE,SMOOTH PERF.,TRIM3#

sub71072-0N131

main71072-0N131-D0iARS212..S201703-201712

VALUE PACKAGE,SMOOTH PERF.,TRIM3#

sub71072-0N132

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0N100-A0iARS212..B201501-201910

FLAXEN,TRIM0#

main71074-0N100-A1iARS212,GRS218..B201610-201712

FLAXEN,TRIM0#

main71074-0N110-A1iARS212..P,S201501-201610

FLAXEN,TRIM0#

main71074-0N110-A2iARS212,GRS218..S201610-201712

FLAXEN,TRIM0#

main71074-0N110-C1iARS212..P,S201501-201610

BLACK,TRIM2#

main71074-0N110-C2iARS212,GRS218..S201610-201712

BLACK,TRIM2#

main71074-0N110-D0iARS212..P201712

SMOOTH PERF./BLACK,TRIM3#

main71074-0N120-A1iARS212,GRS218..Q201501-201610

FLAXEN,TRIM0#

main71074-0N120-A2iARS212,GRS218..Q201610-201712

FLAXEN,TRIM0#

main71074-0N120-C1iARS212..Q,U201501-201610

BLACK,TRIM2#

main71074-0N120-C2iARS212,GRS218..Q201610-201712

BLACK,TRIM2#

main71074-0N130-A1iARS212,GRS218..U201501-201610

FLAXEN,TRIM0#

main71074-0N130-A2iARS212,GRS218..U201610-201712

FLAXEN,TRIM0#

main71074-0N130-C1iARS212,GRS218..U201501-201610

BLACK,TRIM2#

main71074-0N130-C2iARS212,GRS218..U201610-201712

BLACK,TRIM2#

main71074-0N140-D0iARS212..S201610-201712

VALUE PACKAGE,SMOOTH PERF.,TRIM3#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-0N060-A0iARS212..B201501-201910

FLAXEN,TRIM0#

main71420-0N070-A1iARS212..P,S201501-201712

FLAXEN,TRIM0#

main71420-0N070-C1iARS212,GRS218..S201501-201712

BLACK,TRIM2#

main71420-0N070-D0iARS212..P201712

SMOOTH PERF./BLACK,TRIM3#

main71420-0N080-A1iARS212,GRS218..Q,U201501-201712

FLAXEN,TRIM0#

main71420-0N080-C1iARS212..Q,U201501-201712

BLACK,TRIM2#

main71420-0N090-D0iARS212..S201610-201712

VALUE PACKAGE,SMOOTH PERF.,TRIM3#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-0N060-A1iARS212,GRS218..U201501-201610

FLAXEN,TRIM0#

main71440-0N060-A2iARS212,GRS218..U201610-201712

FLAXEN,TRIM0#

main71440-0N060-C1iARS212,GRS218..U201501-201610

BLACK,TRIM2#

main71440-0N060-C2iARS212,GRS218..U201610-201712

BLACK,TRIM2#

main71440-0N070-A1iARS212..Q,U201501-201610

FLAXEN,TRIM0#

main71440-0N070-A2iARS212,GRS218..Q201610-201712

FLAXEN,TRIM0#

main71440-0N070-C1iARS212..Q,U201501-201610

BLACK,TRIM2#

main71440-0N070-C2iARS212,GRS218..Q201610-201712

BLACK,TRIM2#

main71440-0N080-A1iARS212,GRS218..S201501-201610

FLAXEN,TRIM0#

main71440-0N080-A2iARS212,GRS218..S201610-201712

FLAXEN,TRIM0#

main71440-0N080-C1iARS212..P,S201501-201610

BLACK,TRIM2#

main71440-0N080-C2iARS212,GRS218..S201610-201712

BLACK,TRIM2#

main71440-0N080-D0iARS212..P201712

SMOOTH PERF./BLACK,TRIM3#

main71440-0N090-A0iARS212,GRS218..B201501-201910

FLAXEN,TRIM0#

main71440-0N090-A1iARS212,GRS218..B201610-201712

FLAXEN,TRIM0#

main71440-0N100-D0iARS212..S201610-201712

VALUE PACKAGE,SMOOTH PERF.,TRIM3#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0N050iARS212..B201501-201910

main71512-0N060iARS212,GRS218..S201501-201712

main71512-0N070iARS212,GRS218..Q,U201501-201712

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-0P030-A2iARS212,GRS218201501-201712

FLAXEN,TRIM0#

main71537-0P030-C0iARS212..Q,S,U201508-201712

BLACK,TRIM2#,3#

main71537-0P030-C0iARS212..P201501-201712

BLACK,TRIM2#

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-0P030-A1iARS212,GRS218201501-201712

FLAXEN,TRIM0#

main71538-0P030-C0iARS212..S201508-201712

BLACK,TRIM2#,3#

main71538-0P030-C0iARS212..Q,S,U201501-201712

BLACK,TRIM2#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0N070iARS212..B,P,S201501-201712

main71552-0N080iARS212,GRS218..Q201501-201712

main71552-0N090iARS212,GRS218..U201501-201712

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-52030iARS212,GRS218201501-201712

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-52030iARS212201501-201712

71759DHOOK, FRONT SEATBACK, NO.2

main71759-47011iARS212201501-201712

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0N030-A0iARS212,GRS218..B201501-201910

FLAXEN,TRIM0#

main71812-0N040-A0iARS212,GRS218..Q,S,U201501-201712

FLAXEN,TRIM0#

main71812-0N040-C0iARS212..Q,S,U201508-201712

BLACK,TRIM2#,3#

main71812-0N040-C0iARS212..Q,U;GRS218..Q,S,U201501-201712

BLACK,TRIM2#

71849CAP, SEAT ADJUSTER COVER, LH

main71848-33010iARS212,GRS218201501-201712

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0P020-A1iARS212,GRS218..Q,S,U201501-201712

FLAXEN,TRIM0#

main71862-0P020-C0iARS212..Q,U;GRS218..Q,S,U201501-201712

BLACK,TRIM2#

main71862-0P020-C0iARS212..S201508-201712

BLACK,TRIM2#,3#

main71862-0P030-A1iARS212..B201501-201910

FLAXEN,TRIM0#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06440iARS212,GRS218..B201501-201910

main71873-0P060-C0iARS212,GRS218..Q,S,U201501-201712

BLACK,TRIM2#

main71873-0P060-C0iARS212..P,Q,S,U201712

BLACK

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06520iARS212..B201501-201910

main71874-0P060-C0iARS212..P,Q,S,U201712

BLACK

main71874-0P060-C0iARS212,GRS218..Q,S,U201501-201712

BLACK,TRIM2#

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-06470-A1iARS212,GRS218..B201501-201910

FLAXEN,TRIM0#

main71875-0P070-A1iARS212,GRS218..Q,S,U201501-201712

FLAXEN,TRIM0#

main71875-0P070-C0iARS212..P201501-201712

BLACK,TRIM2#

main71875-0P070-C0iARS212..S201508-201712

BLACK,TRIM2#,3#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-06500-A1iARS212..B201501-201910

FLAXEN,TRIM0#

main71876-0P070-A1iARS212,GRS218..Q,S,U201501-201712

FLAXEN,TRIM0#

main71876-0P070-C0iARS212..Q,S,U201508-201712

BLACK,TRIM2#,3#

main71876-0P070-C0iARS212..P201501-201712

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-0N080-A2iARS212,GRS218..Q,S,U201501-201612

FLAXEN,TRIM0#

sub71910-0N200

main71910-0N080-C2iARS212..Q,U;GRS218..Q,S,U201501-201612

BLACK,TRIM2#

sub71910-0N200

main71910-0N080-C2iARS212..S201508-201612

BLACK,TRIM2#,3#

sub71910-0N200

main71910-0N090-A0iARS212,GRS218..B201501-201910

FLAXEN,TRIM0#

main71910-0N200-A0iARS212..Q,S,U201701-201712

FLAXEN,TRIM0#

main71910-0N200-C0iARS212..Q,U;GRS218..Q,S,U201701-201712

BLACK,TRIM2#,3#

main71910-0N200-C0iARS212..Q,U;GRS218..Q,S,U201701-201712

BLACK,TRIM2#

main71910-0N200-C0iARS212..Q,S,U201712

BLACK,TRIM3#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-A7iARS212,GRS218201501-201712

W(LOCK),FLAXEN,TRIM0#

sub71930-47020

main71930-47020-C0iARS212..Q,U;GRS218..Q,S,U201501-201710

W(LOCK),BLACK,TRIM2#

sub71930-47020

main71930-47020-C0iARS212..S201508-201710

W(LOCK),BLACK,TRIM2#,3#

sub71930-47020

main71930-47020-C4iARS212..Q,U;GRS218..Q,S,U201710-201712

W(LOCK),BLACK,TRIM2#

sub71930-47020

main71930-47020-C4iARS212..P201712

W(LOCK),BLACK,TRIM3#

sub71930-47020

main71930-47020-C4iARS212..S201710-201712

W(LOCK),BLACK,TRIM2#,3#

sub71930-47020

main71931-47020-A7iARS212,GRS218201501-201712

W/O(LOCK),FLAXEN,TRIM0#

sub71931-47020

main71931-47020-C0iARS212..S201508-201710

W/O(LOCK),BLACK,TRIM2#,3#

sub71931-47020

main71931-47020-C0iARS212..Q,U;GRS218..Q,S,U201501-201710

W/O(LOCK),BLACK,TRIM2#

sub71931-47020

main71931-47020-C4iARS212..Q,U;GRS218..Q,S,U201710-201712

W/O(LOCK),BLACK,TRIM2#

sub71931-47020

main71931-47020-C4iARS212..S201710-201712

W/O(LOCK),BLACK,TRIM2#,3#

sub71931-47020

main71931-47020-C4iARS212..Q,S,U201712

W/O(LOCK),BLACK,TRIM3#

sub71931-47020

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-0N040iARS212..B201501-201910

main72020-0N050iARS212,GRS218..S201501-201712

main72020-0N060iARS212,GRS218..Q,U201501-201712

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-0N010-C0iARS212..P201501-201712

BLACK,TRIM0#,2#

main72124-0N010-C0iARS212,GRS218..B201501-201910

BLACK,TRIM0#

main72124-0N010-C0iARS212..S201508-201712

BLACK,TRIM0#,2#,3#

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72128-0N010-C0iARS212..P201501-201712

BLACK,TRIM0#,2#

main72128-0N010-C0iARS212,GRS218..B201501-201910

BLACK,TRIM0#

main72128-0N010-C0iARS212..S201508-201712

BLACK,TRIM0#,2#,3#

72138HCOVER, FRONT SEAT TRACK, LH REAR INNER

main72158-0P031-C0iGRS218..B201501-201502

BLACK,TRIM0#

sub72158-0P032

main72158-0P031-C0iGRS218..B201501-201502

BLACK,TRIM0#,2#

sub72158-0P032

main72158-0P032-C0iARS212,GRS218..B201502-201910

BLACK,TRIM0#

main72158-0P032-C0iARS212,GRS218..B201502-201712

BLACK,TRIM0#,2#

main72158-0P032-C0iARS212..S201508-201712

BLACK,TRIM0#,2#,3#

72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER

main72138-0N010-C0iARS212,GRS218..B201501-201910

BLACK,TRIM0#

main72138-0N010-C0iARS212,GRS218..B201501-201712

BLACK,TRIM0#,2#

main72138-0N010-C0iARS212..S201508-201712

BLACK,TRIM0#,2#,3#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-0P030iARS212,GRS218..B201501-201910

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-0P030iARS212,GRS218..B201501-201910

72461ARM, VERTICAL SEAT RELEASE

main72461-53010iARS212,GRS218..B201501-201910

72462ACOVER, VERTICAL ADJUSTER LH

main72462-53010iARS212..B201501-201910

72495HANDLE, VERTICAL ADJUSTING, LH

main72494-0N010-A0iARS212,GRS218..B201501-201910

FLAXEN,TRIM0#

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-30070-A0iARS212..B201501-201910

FLAXEN,TRIM0#

73179ACAP, SEAT BELT ANCHOR COVER, LH

main73179-0N010-A0iARS212,GRS218..Q,S,U201501-201712

FLAXEN,TRIM0#

main73179-0N010-C0iARS212..P201501-201712

BLACK,TRIM2#

main73179-0N010-C0iARS212..S201508-201712

BLACK,TRIM2#,3#

main73179-0N020-A0iARS212..B201501-201910

FLAXEN,TRIM0#

73233DCOVER, LAP BELT OUTER ANCHOR

main73233-0N010-C0iARS212,GRS218201501-201712

BLACK

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0N030iARS212,GRS218201501-201712

78639CLIP, FRONT SEAT SIDE TABLE

main78639-30010iARS212,GRS218..B201501-201910

79977AFELT, SEATBACK

main79977-30020iARS212,GRS218201501-201712

9011910601

main90119-10601

90119C0190

main90119-C0190

9016740044

main90167-40044

9098012373

main90980-12373

9326955010

main93269-55010

9417060600

main94170-60600

9418560600

main94185-60600

48 parts on this diagram · 7 diagrams in section
