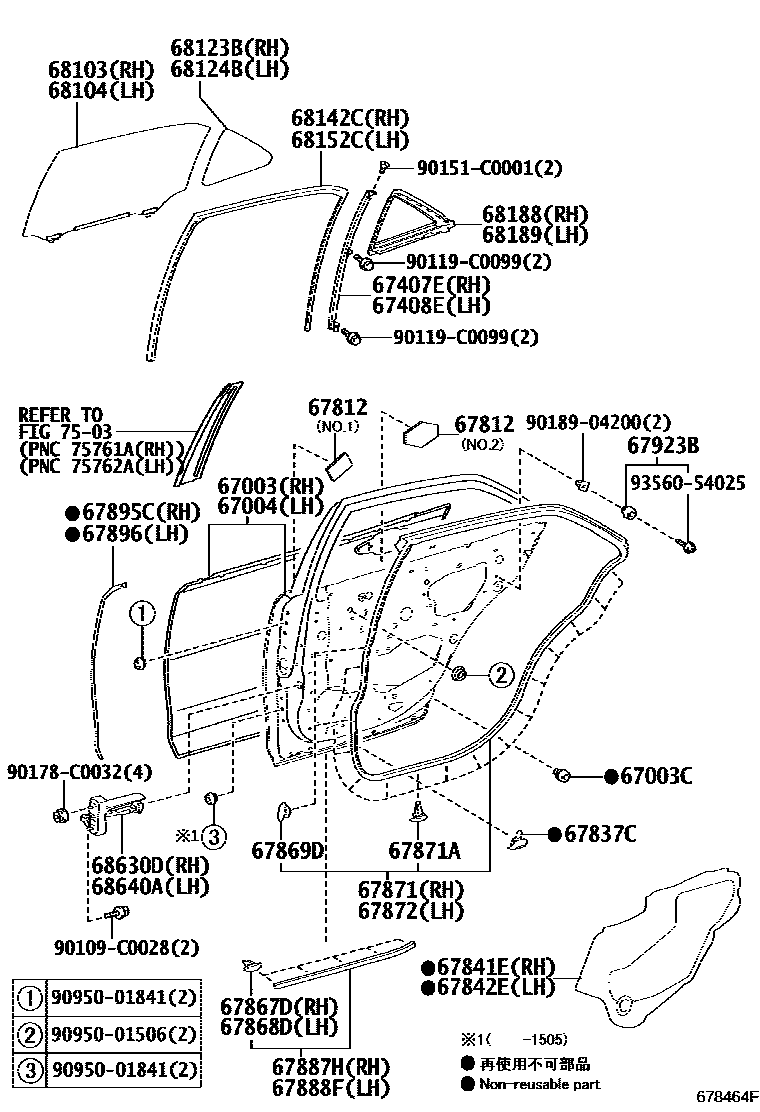

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0N040iARS212,GRS218201501-201910

67003CCUSHION, REAR DOOR PANEL

main90541-09069iARS212,GRS218¥170201501-201910

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0N040iARS212,GRS218201501-201910

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0N040iARS212,GRS218201501-201910

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0N040iARS212,GRS218201501-201910

67812PAD, REAR DOOR SILENCER

main67811-0N030iARS212,GRS218201501-201704

NO.1:REFER ILLUST.

main67811-0N030iARS212,GRS218201704-201910

main67811-0N040iARS212,GRS218201501-201704

NO.2:REFER ILLUST.

67837CSEAL, REAR DOOR DUST PROOF

main67837-0N020iARS212..P,Q,S,U201501-201910

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0N030iARS212,GRS218201501-201910

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0N030iARS212,GRS218201501-201910

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-52010iARS212,GRS218¥100201501-201910

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-52030iARS212,GRS218¥100201501-201910

67869DCLIP, DOOR WEATHERSTRIP

main90467-04034iARS212,GRS218¥60201501-201910

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0N040iARS212..B201501-201910

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-0D090iARS212,GRS218201501-201910

RH

main67868-0D030iARS212,GRS218201501-201910

LH

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0N040iARS212,GRS218201501-201910

67887HWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-0N030iARS212..P,Q,S,U201501-201910

67888FWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-0N030iARS212,GRS218201501-201910

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-0N030iARS212,GRS218201501-201910

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-0N030iARS212,GRS218201501-201910

67923BCUSHION, REAR DOOR STIFFENER, NO.1

main67923-24030iARS212,GRS218¥520201501-201910

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-0N040iARS212,GRS218201501-201708

main68103-0N040iARS212,GRS218201708-201712

MARK=FUYAO(E000970)

main68103-0N050iARS212,GRS218201708-201712

MARK=FUYAO(E006888)

main68103-0N050iARS212..B201712-201910

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-0N040iARS212,GRS218201708-201712

MARK=FUYAO(E000970)

main68104-0N040iARS212,GRS218201501-201708

main68104-0N050iARS212,GRS218201708-201712

MARK=FUYAO(E006888)

main68104-0N050iARS212..B201712-201910

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0N040iARS212,GRS218201501-201708

main68123-0N040iARS212,GRS218201708-201712

MARK=FUYAO(E000970)

main68123-0N050iARS212,GRS218201708-201712

MARK=FUYAO(E006888)

main68123-0N050iARS212..B201712-201910

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0N040iARS212,GRS218201501-201708

main68124-0N040iARS212,GRS218201708-201712

MARK=FUYAO(E000970)

main68124-0N050iARS212,GRS218201708-201712

MARK=FUYAO(E006888)

main68124-0N050iARS212..B201712-201910

68142CRUN, REAR DOOR GLASS, RH

main68142-0N040iARS212,GRS218201501-201910

68152CRUN, REAR DOOR GLASS, LH

main68152-0N040iARS212,GRS218201501-201910

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0N040iARS212,GRS218201501-201910

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0N040iARS212,GRS218201501-201910

68630DCHECK ASSY, REAR DOOR, RH

main68630-0N030iARS212,GRS218201501-201712

68640ACHECK ASSY, REAR DOOR, LH

main68640-0N030iARS212,GRS218201501-201712

7503

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90151C0001

main90151-C0001

90178C0032

main90178-C0032

9018904200

main90189-04200¥80

9095001506

main90950-01506¥120

9095001841

main90950-01841¥110

9356054025

main93560-54025¥70

39 parts on this diagram · 3 diagrams in section
