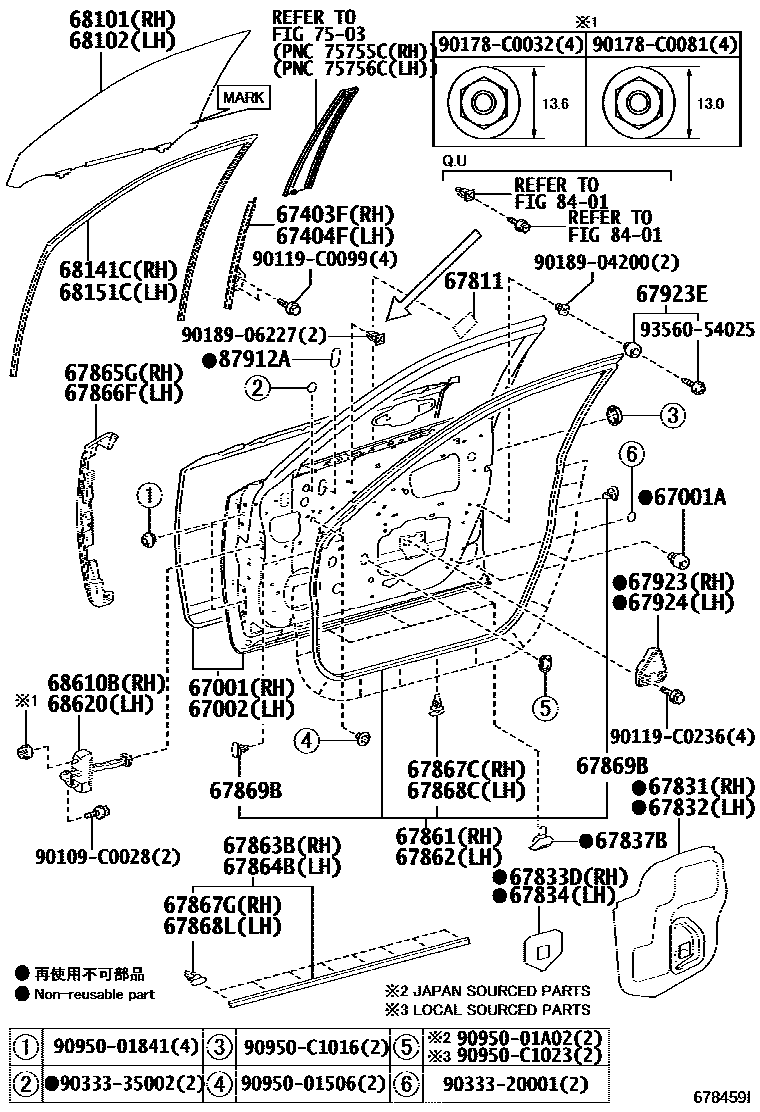

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67811PAD, FRONT DOOR SILENCER
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH
67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
67837BSEAL, FRONT DOOR DUST PROOF
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH
67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67923ECUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
MARK=FUYAO(E000970)
MARK=FUYAO(E006888)
68102GLASS SUB-ASSY, FRONT DOOR, LH
MARK=FUYAO(E000970)
MARK=FUYAO(E006888)
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
7503
8401
87912APROTECTOR, OUTER MIRROR
90109C0028
main90109-C0028
90119C0099
main90119-C0099
90119C0236
main90119-C0236
90178C0032
main90178-C0032
90178C0081
main90178-C0081
9018904200
main90189-04200
9018906227
main90189-06227
9033320001
main90333-20001
9033335002
main90333-35002
9095001506
main90950-01506
9095001841
main90950-01841
9095001A02
main90950-01A02
90950C1016
main90950-C1016
90950C1023
main90950-C1023
9356054025
main93560-54025
49 parts on this diagram · 2 diagrams in section
