SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
sub53821-F4040
5701
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61063CTROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH
61101PANEL SUB-ASSY, COWL SIDE, RH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61131CPILLAR, FRONT BODY, OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61205RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH
61211RAIL, ROOF SIDE, OUTER RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61311BPILLAR, CENTER BODY, OUTER RH
61401CPANEL SUB-ASSY, ROCKER, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61611PANEL, QUARTER, RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61711PANEL, ROOF SIDE, OUTER RH
61713BREINFORCE, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61815BCOVER, ROOF SIDE, INNER UPPER RH
62554BPAD, PILLAR, NO.4
64193PAD, BACK PANEL SILENCER
64274BPAD, ROOM PARTITION, NO.2
65637LINER, REAR WHEEL HOUSE, RH
6548753020CLIP, CORNER PROTECTOR
main65487-53020
90159C0028
main90159-C0028
9018906006
main90189-06006
9018906145
main90189-06145
9018906157
main90189-06157
90189C0010
main90189-C0010
90189C0013
main90189-C0013
9046706121
main90467-06121

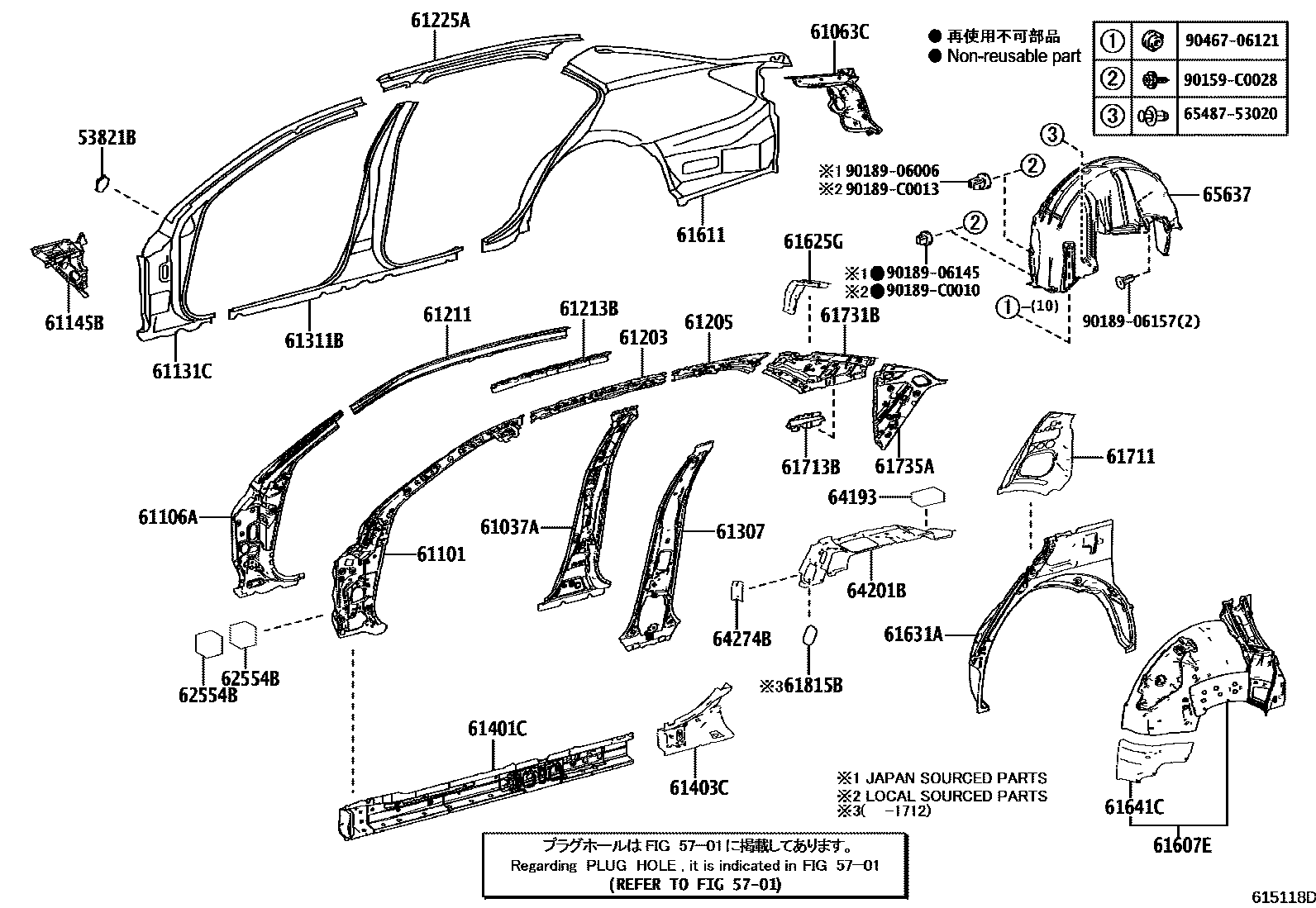

40 parts on this diagram · 2 diagrams in section
