FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0N010iARS212,GRS218201501-201910

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-0N010iGRS218201501-201712

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-0N010iGRS218201501-201712

main58156-30160iARS212201508-201910

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-0N010iGRS218201501-201712

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-0N010iGRS218201501-201712

main58158-0N020iARS212201508-201910

58226CPLATE, AIR GUIDE, OUTSIDE RH

main58226-0P010iARS212,GRS218201501-201910

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-0N010iARS212,GRS218201501-201910

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-0N010iARS212,GRS218201501-201910

9011906767

main90119-06767

90119C0387

main90119-C0387

9017906219

main90179-06219

90182C0005

main90182-C0005

9054109151

main90541-09151

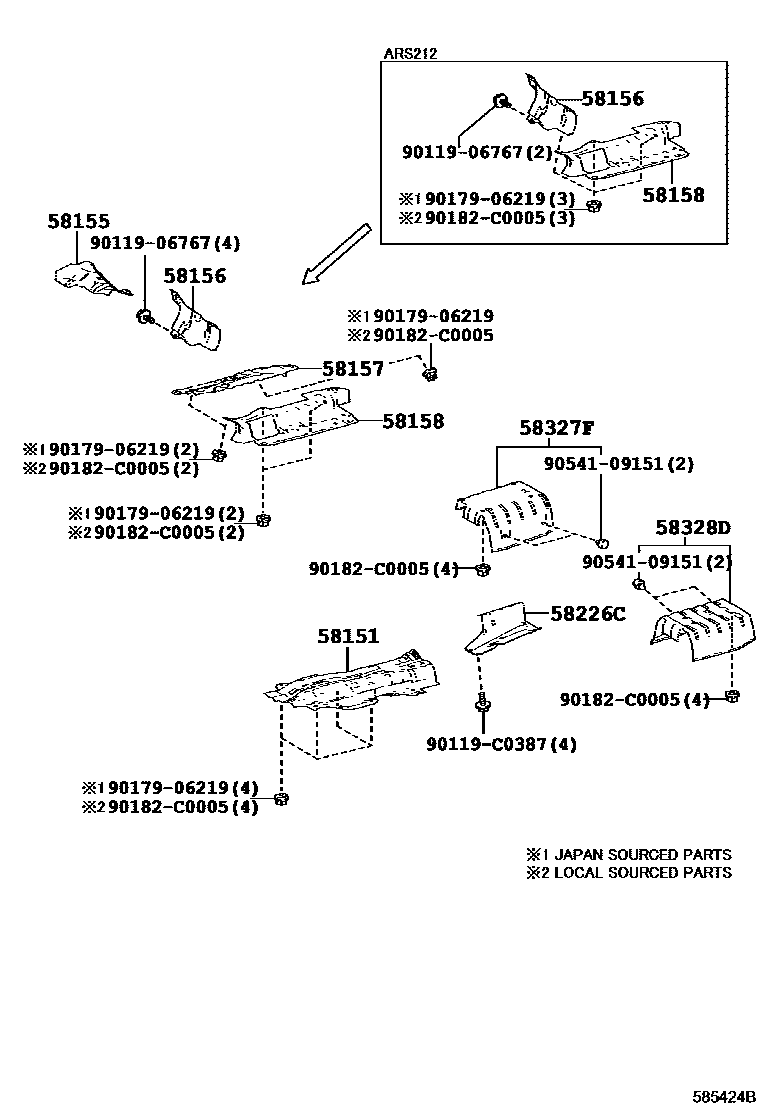

13 parts on this diagram · 1 diagram in section
