FLOOR SIDE MEMBER
51967EHOOK, TRANSPORT, REAR RH
51968DHOOK, TRANSPORT, REAR LH
5701
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3
57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH
57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57123AREINFORCEMENT, STRUT BAR BRACKET, RH
57124AREINFORCEMENT, STRUT BAR BRACKET, LH
57141ASUPPORT, FRONT BUMPER ARM, RH
57142ASUPPORT, FRONT BUMPER ARM, LH
57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57183PLATE, FRONT SIDE MEMBER, NO.4 RH
57184APLATE, FRONT SIDE MEMBER, NO.4 LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57255MEMBER, ENGINE REAR MOUNTING
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3
57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57501ABRACE SUB-ASSY, FRONT FLOOR, CENTER
57533BRACE, FRONT FLOOR, CENTER
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH
57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
90105C0058
main90105-C0058
90105C0132
main90105-C0132
9011910928
main90119-10928
9011912247
main90119-12247
90119C0178
main90119-C0178
90119C0291
main90119-C0291
90119C0420
main90119-C0420
91655B1040
main91655-B1040

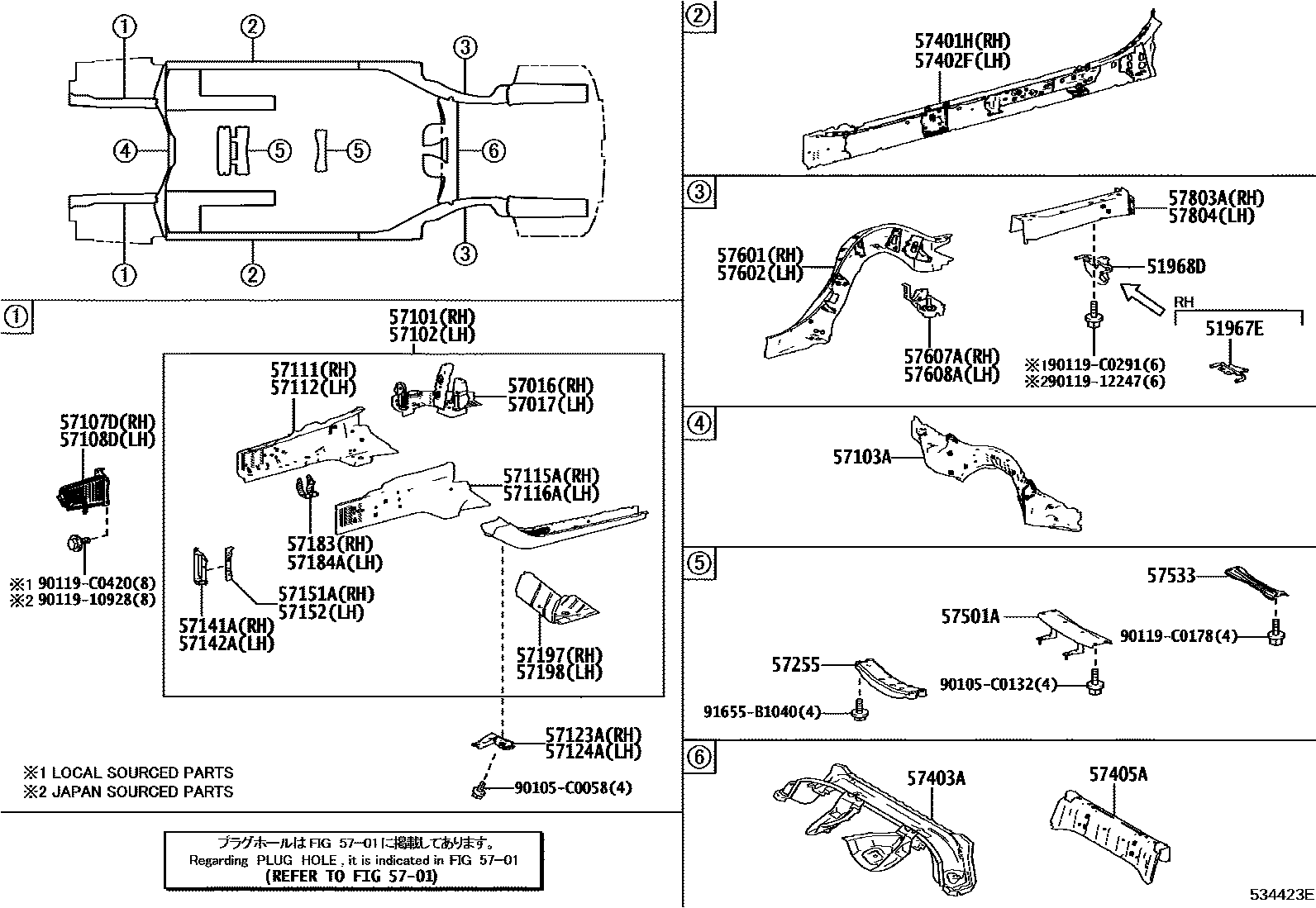

45 parts on this diagram · 1 diagram in section
