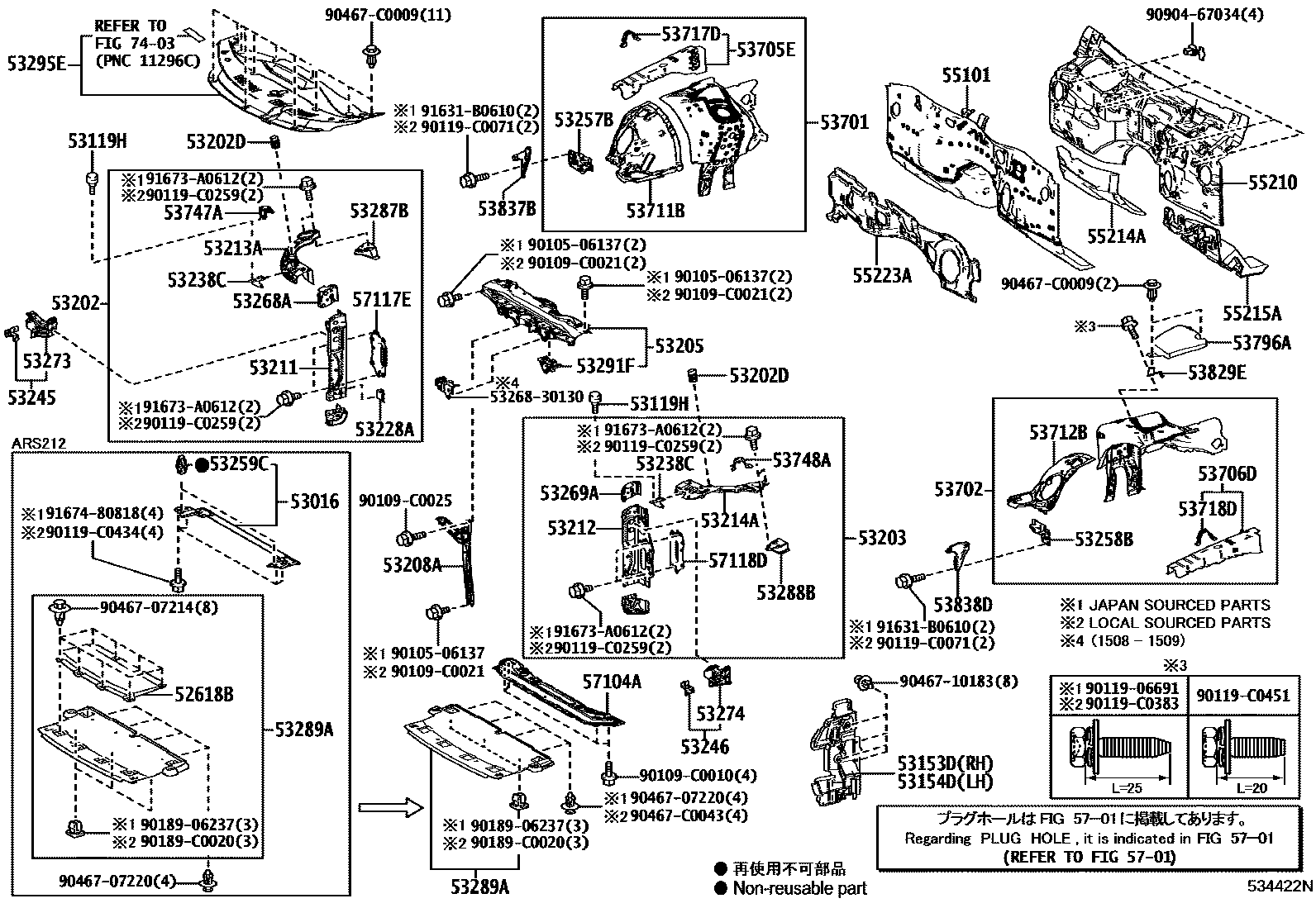

FRONT FENDER APRON & DASH PANEL
52618BABSORBER, FRONT BUMPER, LOWER
53016ROD SUB-ASSY, RADIATOR BRACE
53119HPROTECTOR, RADIATOR GRILLE
53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53202DCUSHION, RADIATOR SUPPORT
53203SUPPORT SUB-ASSY, RADIATOR, LH
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1
53238CBRACKET, HOOD BUMPER MOUNTING, RH
53245BRACKET, HEADLAMP, RH
53246BRACKET, HEADLAMP, LH
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53289ACOVER, RADIATOR SUPPORT OPENING
53295ESEAL, COOL AIR INTAKE DUCT
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53829EBRACKET, FRONT FENDER TO COWL LOUVER MOUNT, LH
53837BBRACKET, FRONT SIDE PANEL, NO.2
53838DBRACKET, FRONT SIDE PANEL, NO.2 LH
55101PANEL SUB-ASSY, DASH
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
57117ERETAINER, FRONT BUMPER ARM, RH
57118DRETAINER, FRONT BUMPER ARM, LH
7403
5326830130COVER, HOOD HEADER OPENING, LH
main53268-30130
9010506137
90109C0010
main90109-C0010
90109C0021
main90109-C0021
90109C0025
main90109-C0025
9011906691
90119C0071
main90119-C0071
90119C0259
main90119-C0259
90119C0383
main90119-C0383
90119C0434
main90119-C0434
90119C0451
main90119-C0451
9018906237
90189C0020
main90189-C0020
9046707214
9046707220
9046710183
90467C0009
main90467-C0009
90467C0043
main90467-C0043
9090467034
91631B0610
91673A0612
9167480818
76 parts on this diagram · 1 diagram in section
