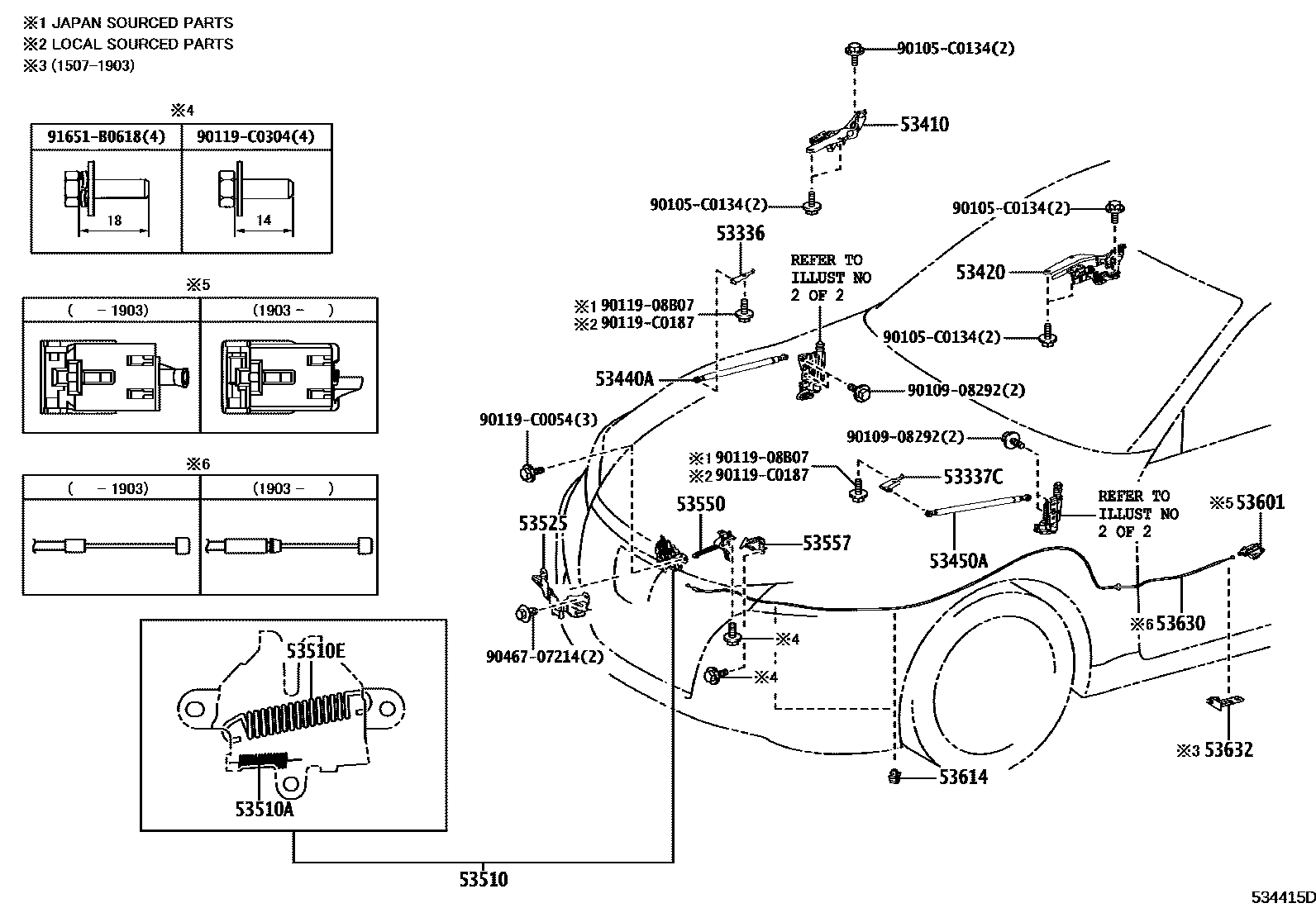

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337CBRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
PAD T=1.0
PAD T=2.0
W/O(PAD)
53420HINGE ASSY, HOOD, LH
PAD T=1.0
PAD T=2.0
W/O(PAD)
53440ASUPPORT ASSY, HOOD, RH
53450ASUPPORT ASSY, HOOD, LH
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.8,CW=13
53525PROTECTOR, HOOD LOCK RELEASE LEVER
53550HOOK ASSY, HOOD AUXILIARY CATCH
53557CATCH, HOOD AUXILIARY HOOK
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM0#,2#
53614CLAMP, HOOD LOCK CONTROL CABLE
53630CABLE ASSY, HOOD LOCK CONTROL
53632HOLDER, HOOD LOCK CONTROL CABLE
90105C0134
main90105-C0134
9010908292
main90109-08292
9011908B07
main90119-08B07
90119C0054
main90119-C0054
90119C0187
main90119-C0187
90119C0304
main90119-C0304
9046707214
main90467-07214
91651B0618
main91651-B0618
24 parts on this diagram · 2 diagrams in section
