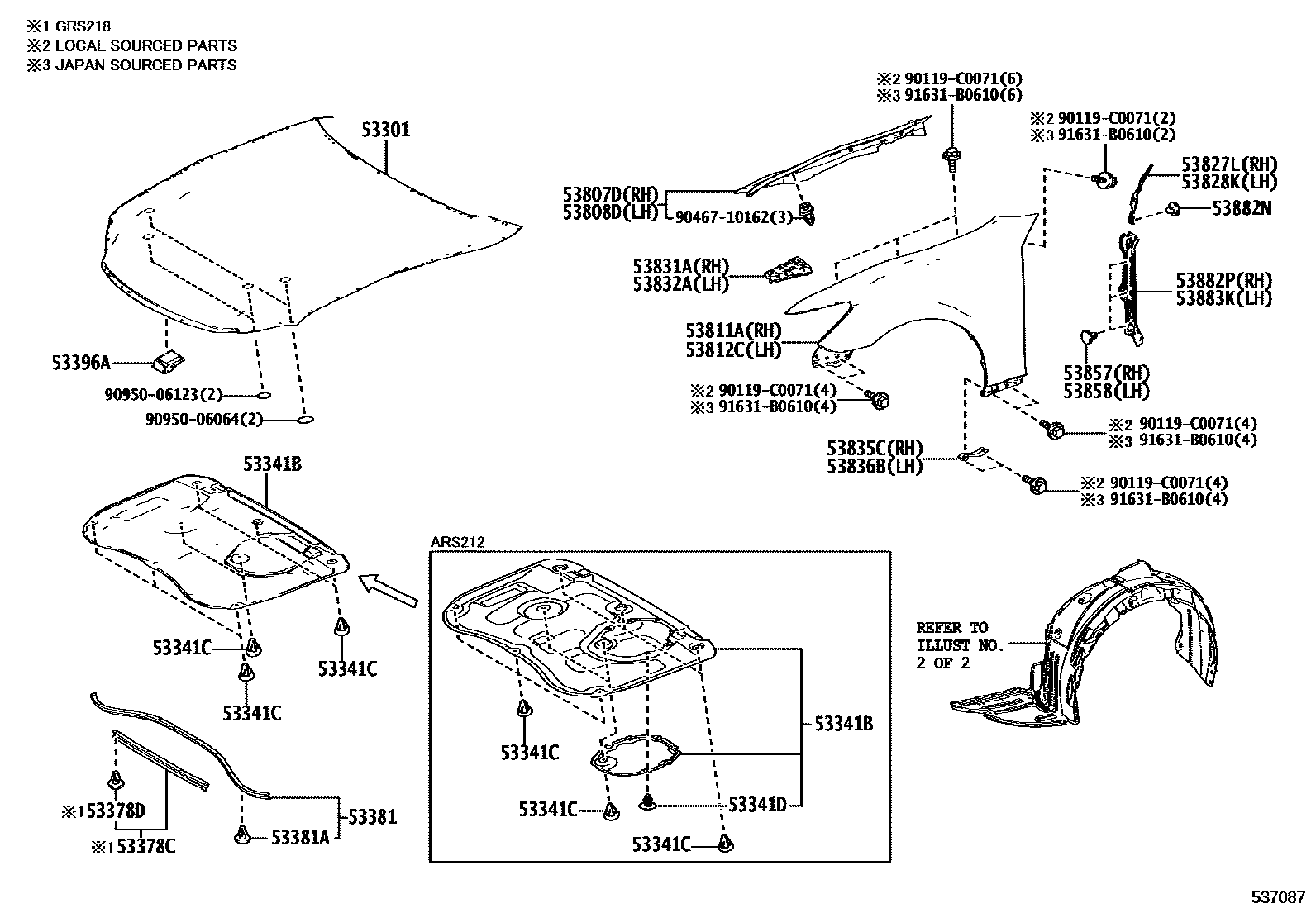

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341CCLIP(FOR HOOD INSULATOR)
53341DCLIP(FOR HOOD INSULATER)
53378CSEAL, HOOD AIR INTAKE DUCT
53378DCLIP(FOR HOOD AIR INTAKE DUCT SEAL)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53396ASEAL, HOOD TO FRONT END PANEL, NO.2
53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53811APANEL, FRONT FENDER, RH
53812CPANEL, FRONT FENDER, LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53831APANEL, FRONT FENDER SIDE, UPPER RH
53832APANEL, FRONT FENDER SIDE, UPPER LH
53835CBRACKET, FRONT SIDE PANEL, RH
53836BBRACKET, FRONT SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
(L)
(J)
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
(L)
(J)
53882NCLIP(FOR FRONT FENDER SEAL)
BLACK
53882PSEAL, FRONT FENDER, RH
53883KSEAL, FRONT FENDER, LH
90119C0071
main90119-C0071
9046710162
main90467-10162
9095006064
main90950-06064
9095006123
main90950-06123
91631B0610
main91631-B0610
29 parts on this diagram · 4 diagrams in section
