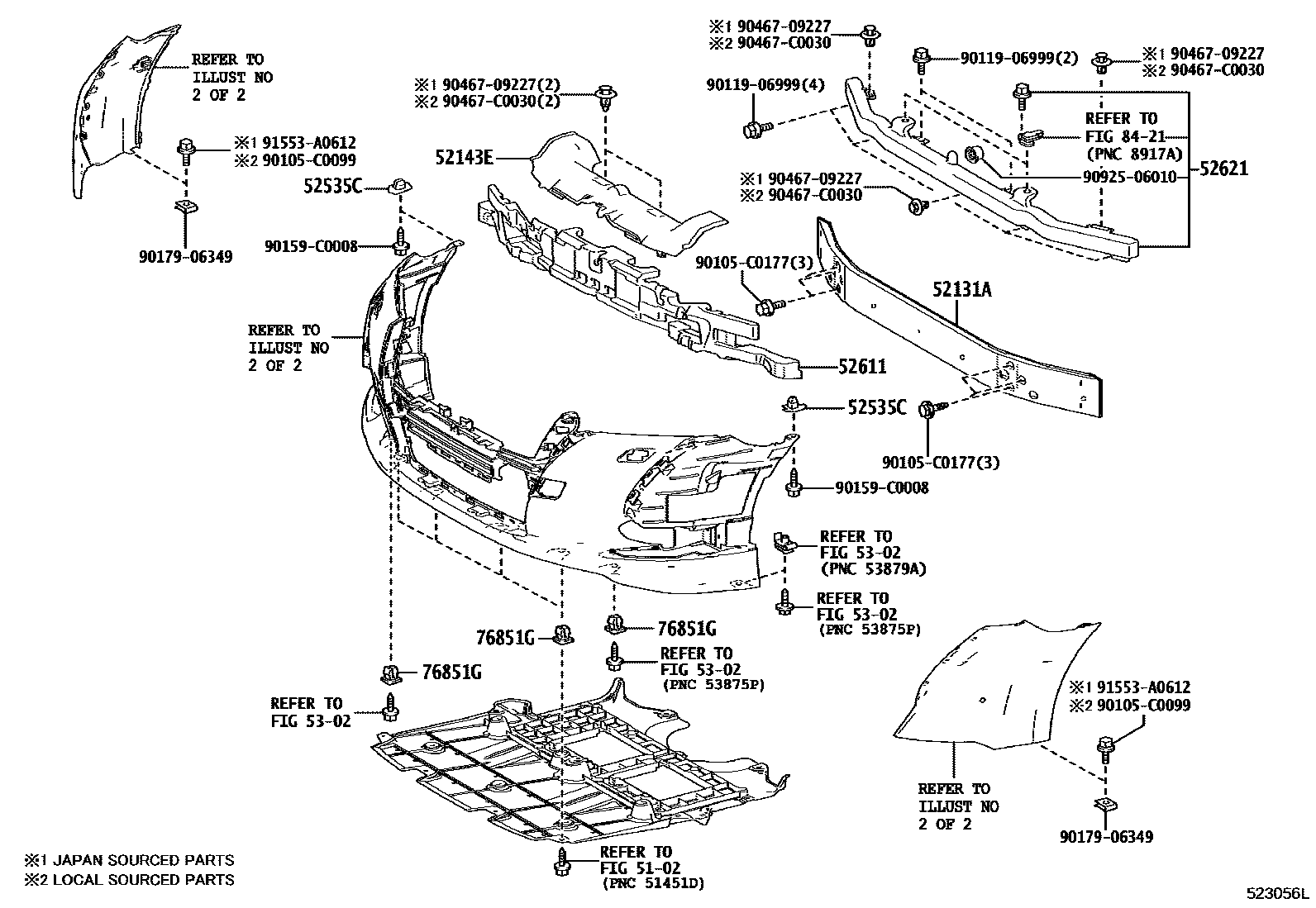

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

52131AREINFORCEMENT, FRONT BUMPER

main52131-0N030iARS212..B201501-201910

52143EPLATE, FRONT ENERGY ABSORBER MOUNTING

main52143-0N010iARS212..B201501-201910

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0N050iARS212..P,Q,S,U201501-201910

52535CRETAINER, FRONT BUMPER SIDE

main52535-0N040iARS212,GRS218201501-201910

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0N050iARS212,GRS218201501-201910

52621CHAMBER, POP UP HOOD

main52621-30060iARS212,GRS218201501-201910

5302

76851GGROMMET, SCREW, NO.1

main90189-06237iARS212,GRS218201501-201712

(J)

main90189-C0020iARS212,GRS218201609-201712

(L)

8421

90105C0099

main90105-C0099

90105C0177

main90105-C0177

9011906999

main90119-06999

90159C0008

main90159-C0008

9017906349

main90179-06349

9046709227

main90467-09227

90467C0030

main90467-C0030

9092506010

main90925-06010

91553A0612

main91553-A0612

19 parts on this diagram · 2 diagrams in section
