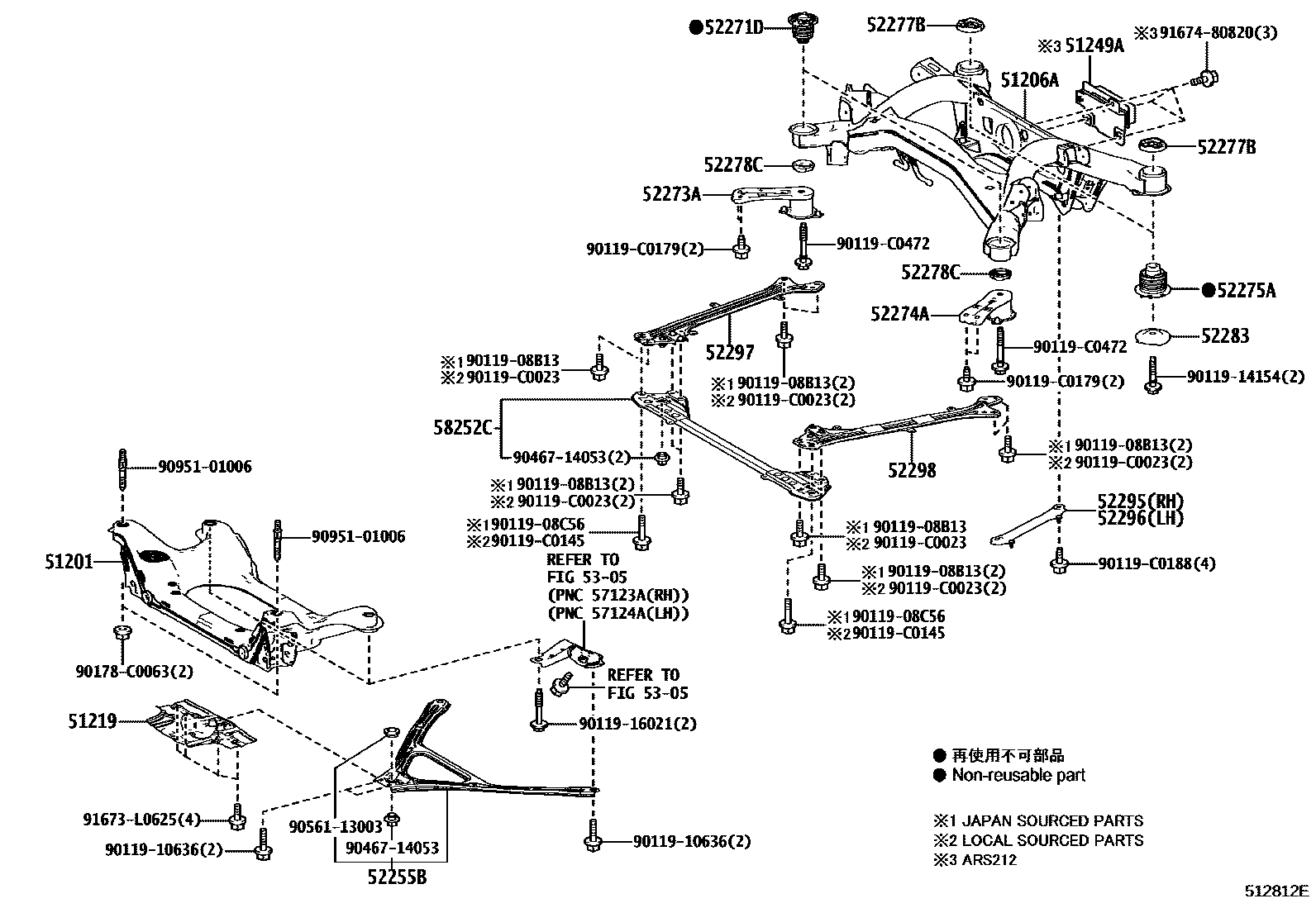

SUSPENSION CROSSMEMBER & UNDER COVER
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51206AMEMBER SUB-ASSY, REAR SUSPENSION
51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR
51249ADAMPER, REAR SUSPENSION MEMBER
52255BBRACE, FRONT SUSPENSION MEMBER
52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH
52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52295BRACE, REAR SUSPENSION MEMBER, RH
52296BRACE, REAR SUSPENSION MEMBER, LH
52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH
52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH
5305
58252CBRACE, FLOOR PANEL, REAR NO.1
9011908B13
9011908C56
9011910636
9011914154
9011916021
90119C0023
main90119-C0023
90119C0145
main90119-C0145
90119C0179
main90119-C0179
90119C0188
main90119-C0188
90119C0472
main90119-C0472
90178C0063
main90178-C0063
9046714053
9056113003
9095101006
91673L0625
9167480820
34 parts on this diagram · 2 diagrams in section
