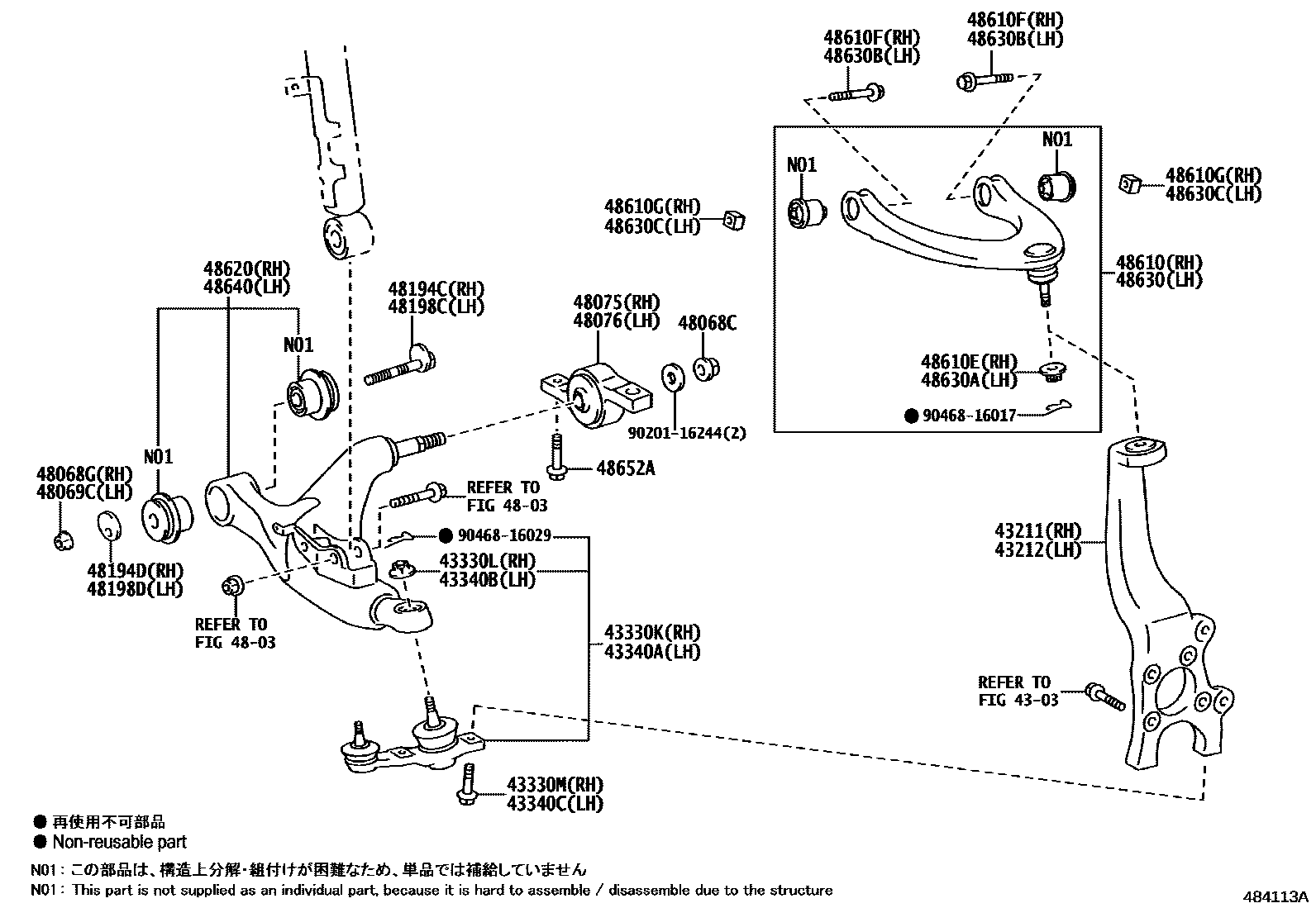

FRONT AXLE ARM & STEERING KNUCKLE
4303
43211KNUCKLE, STEERING, RH
43212KNUCKLE, STEERING, LH
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
(J)
(L)
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
(L)
(J)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
(J)
(L)
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
(L)
(J)
4803
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48075BRACKET SUB-ASSY, LWR ARM, NO,1
48076BRACKET SUB-ASSY, LWR ARM, NO.2
48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH
48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH
(L)
(J)
48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH
48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH
(L)
(J)
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)
48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)
48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)
48620ARM ASSY, FRONT SUSPENSION, LOWER RH
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)
48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)
48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)
48640ARM ASSY, FRONT SUSPENSION LOWER, LH
48652ABOLT(FOR FRONT LOWER ARM BRACKET)
(J)
(L)
9020116244
main90201-16244
9046816017
main90468-16017
9046816029
main90468-16029
33 parts on this diagram · 1 diagram in section
