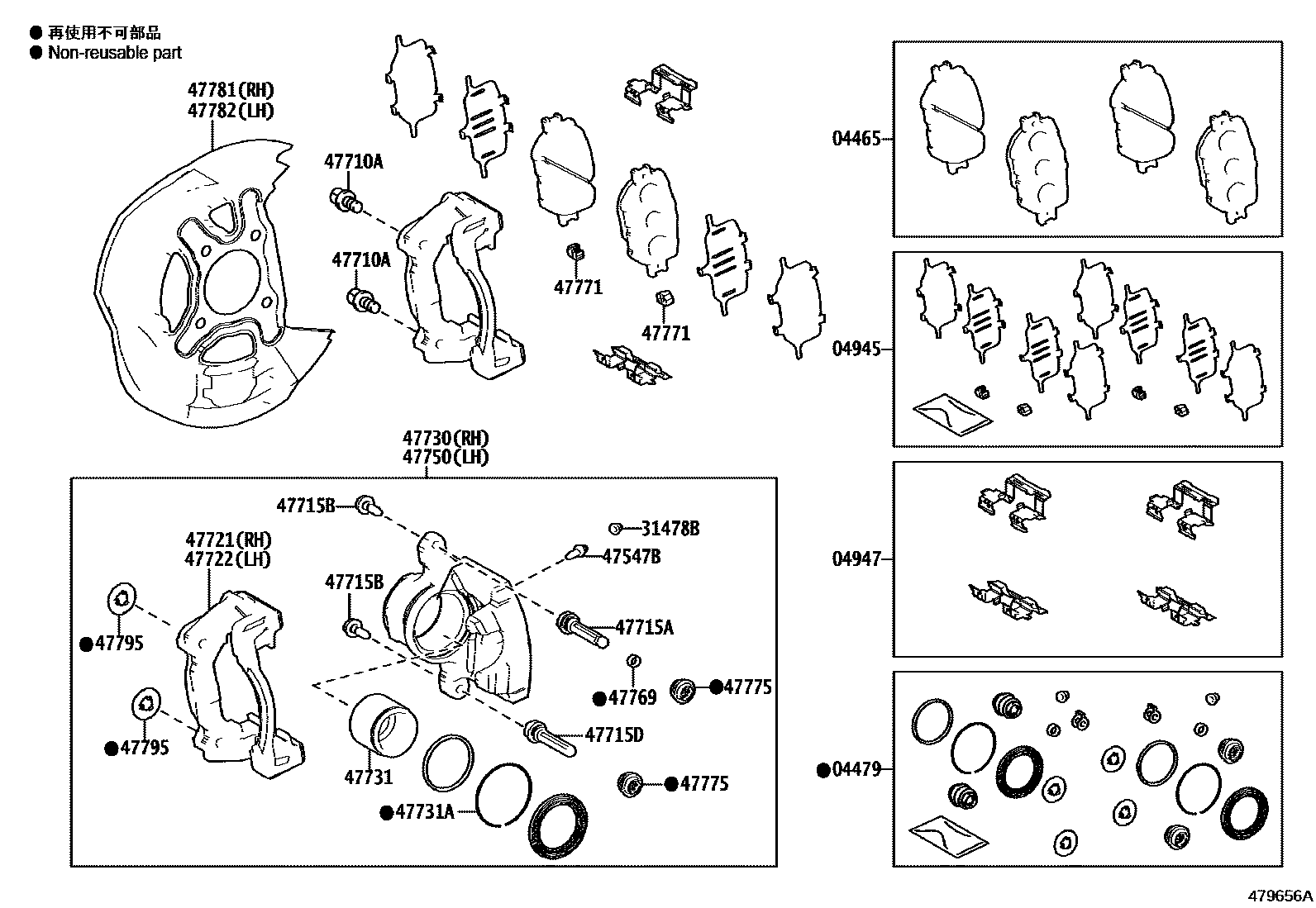

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-30330iARS212,GRS218201501-201705

MARK NBK D6893H

sub04465-30480

main04465-30480iARS212,GRS218201705-201910

MARK NBK D6893H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0N031iARS212,GRS218201501-201910

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0P010iARS212..P,Q,S,U201501-201910

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0P010iARS212,GRS218201504-201910

main04947-30140iGRS218201501-201504

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010iARS212,GRS218201501-201910

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iARS212..B201805-201910

main47547-27030iARS212,GRS218201501-201805

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415iARS212,GRS218201501-201910

*12-1.25PX45-30,(J)

main90119-C0372iARS212,GRS218201501-201910

*12-1.25PX45-30,(L)

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0P010iARS212,GRS218201501-201910

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90016-AA608iARS212,GRS218201504-201910

main90105-08164iGRS218201501-201504

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-0P010iARS212..P,Q,S,U201501-201910

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0P011iARS212..B201501-201910

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-0P011iARS212,GRS218201501-201910

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0P011iARS212,GRS218201501-201910

47731PISTON, FRONT DISC BRAKE

main47731-30570iARS212202002-202004

main47731-33070iARS212,GRS218201501-202002

sub47731-30570

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iARS212,GRS218201501-201910

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0P011iARS212,GRS218201501-201910

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0P010iARS212,GRS218201501-201910

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-30090iARS212,GRS218201501-201910

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-50010iARS212,GRS218201501-201910

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0N010iARS212,GRS218201501-201910

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0N010iARS212,GRS218201501-201910

47795PLATE, FRONT DISC BRAKE CALIPER, NO.1

main47795-30520iARS212,GRS218201501-201910

22 parts on this diagram · 1 diagram in section
