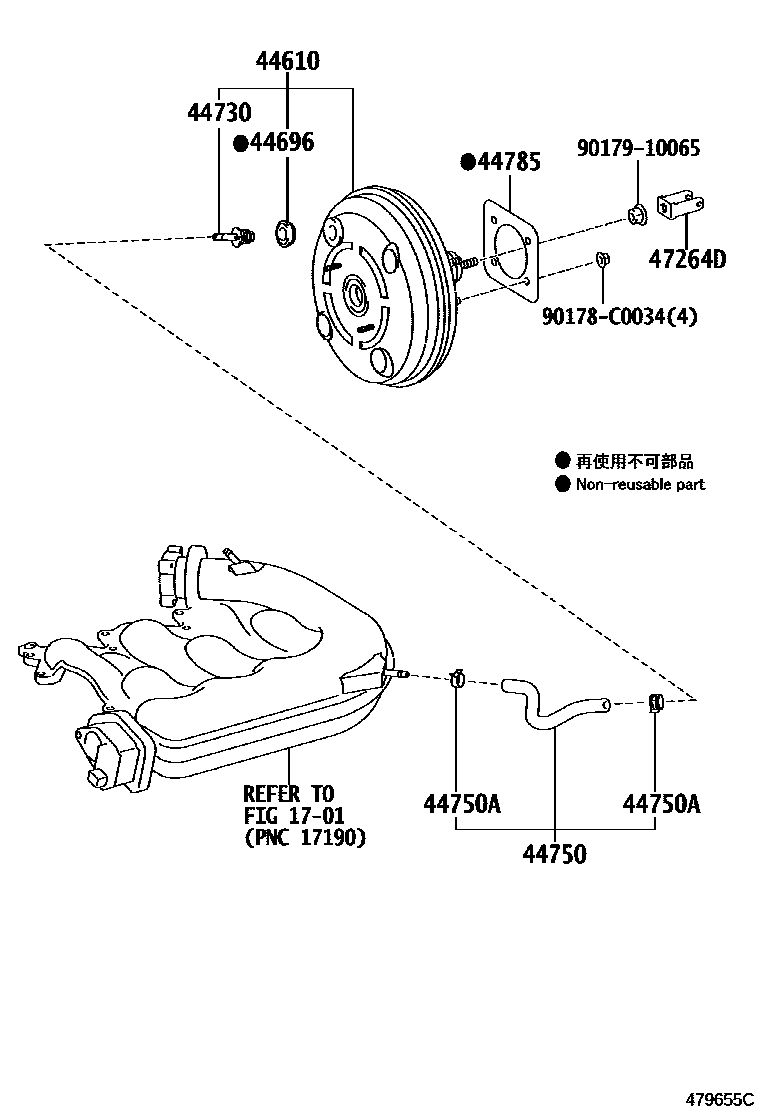

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-0N060iGRS218201501-201712

main44610-0N070iARS212201508-201910

44696GROMMET, CHECK VALVE

main90080-48071iARS212,GRS218201501-201910

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iARS212,GRS218201501-201910

44750HOSE ASSY, VACUUM

main44750-0P010iGRS218201501-201712

main44750-53220iARS212201508-201910

44750ACLIP(FOR VACUUM HOSE ASSY)

main90467-16014iARS212,GRS218201501-201910

44785GASKET, BRAKE BOOSTER

main44785-47010iARS212,GRS218201501-201910

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0N010iARS212,GRS218201501-201910

90178C0034

main90178-C0034

9017910065

main90179-10065

10 parts on this diagram · 2 diagrams in section
