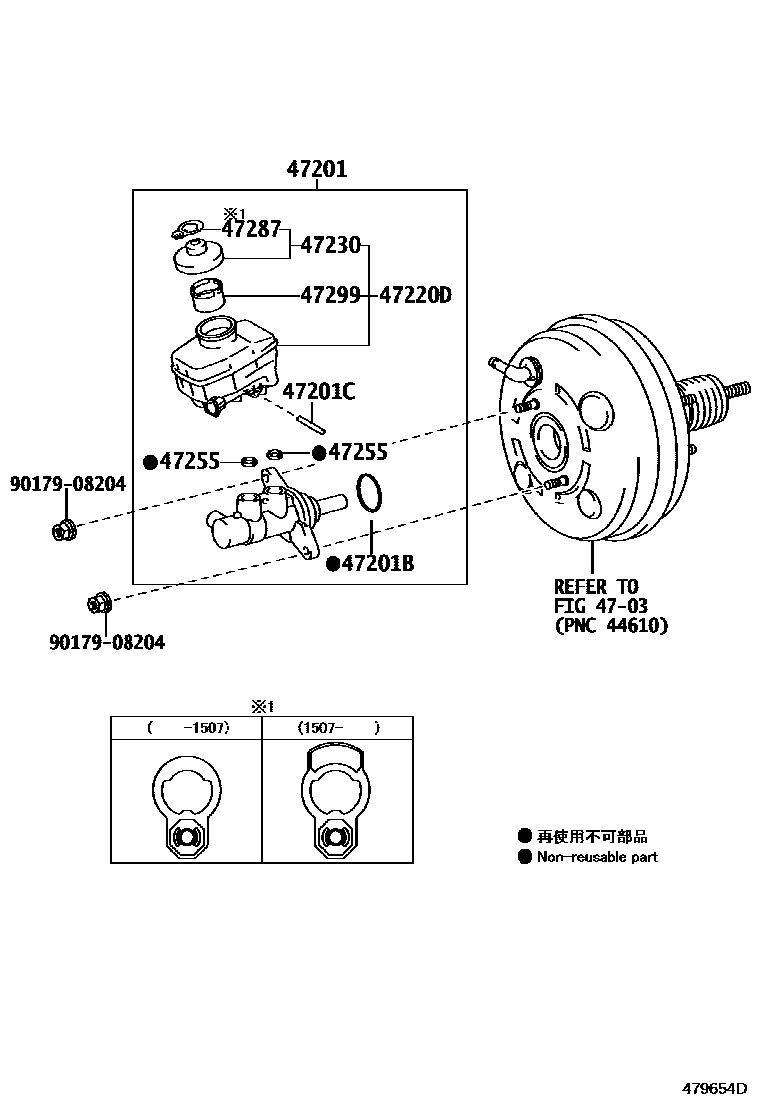

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0N030iGRS218201501-201712

main47201-0N040iARS212201508-201712

main47201-0N050iARS212..B201712-201910

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH902iARS212,GRS218201501-201910

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iARS212,GRS218201501-201910

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0N030iARS212,GRS218201501-201910

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02260iGRS218201501-201507

sub47230-0R030

main47230-0R030iARS212,GRS218201507-201910

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT002iARS212,GRS218201501-201910

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iARS212..B201507-201910

main47287-20010iGRS218201501-201507

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iARS212,GRS218201501-201910

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
