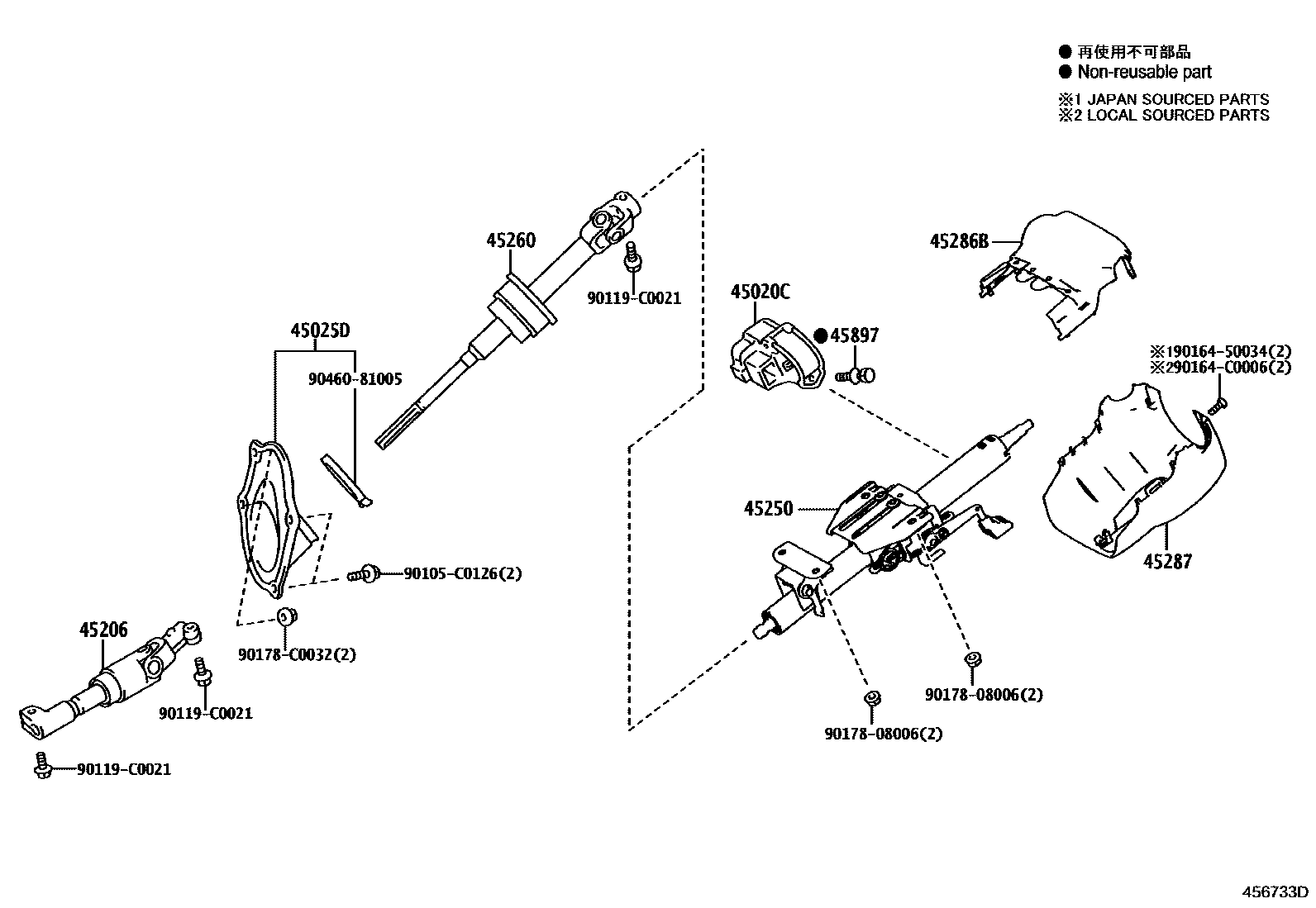

STEERING COLUMN & SHAFT

0001 1MANUAL TILT & TELESCOPIC 0002 1POWER TILT & TELESCOPIC

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0D160iARS212..B,P,S201501-202004

main45020-0N060iARS212,GRS218..Q,U201501-202004

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0N010iARS212..P,Q,S,U201501-201910

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-0N040iARS212..B201501-201910

45250COLUMN ASSY, STEERING

main45250-0N060iARS212,GRS218..Q,U201501-201712

main45250-0N070iARS212,GRS218..B,S201501-201910

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0N030iARS212,GRS218201501-201910

45286BCOVER, STEERING COLUMN, UPR

main45286-0N030-C0iARS212,GRS218..Q,U201501-201712

BLACK,TRIM0#,2#

main45286-0N040-C0iARS212,GRS218..B201501-201712

BLACK,TRIM0#,2#

main45286-0N040-C0iGRS218..S201501-201910

BLACK,TRIM0#

main45286-0N040-C0iARS212..S201508-201712

BLACK,TRIM0#,2#,3#

45287COVER, STEERING COLUMN, LWR

main45287-0N030-C0iARS212,GRS218..Q,U201501-201712

BLACK,TRIM0#,2#

main45287-0N040-C0iGRS218..S201501-201910

BLACK,TRIM0#

main45287-0N040-C0iARS212,GRS218..B201501-201712

BLACK,TRIM0#,2#

main45287-0N040-C0iARS212..S201508-201712

BLACK,TRIM0#,2#,3#

45897BOLT, STEERING LOCK SET

main45897-12020iARS212,GRS218..B,S201501-201910

90105C0126

main90105-C0126

90119C0021

main90119-C0021

9016450034

main90164-50034

90164C0006

main90164-C0006

9017808006

main90178-08006

90178C0032

main90178-C0032

9046081005

main90460-81005

15 parts on this diagram · 2 diagrams in section
